NXP EdgeReady MCU-Based Solution for Face Recognition with Liveness Detection

SLN-VIZNLC-IOT

Roll over image to zoom in

Product Details

Block Diagram

Choose a diagram:

NXP EdgeReady MCU-based Face Recognition

NXP EdgeReady MCU-based Face Recognition

VIZNLC Face Recognition Software

VIZNLC Face Recognition Software Block Diagram

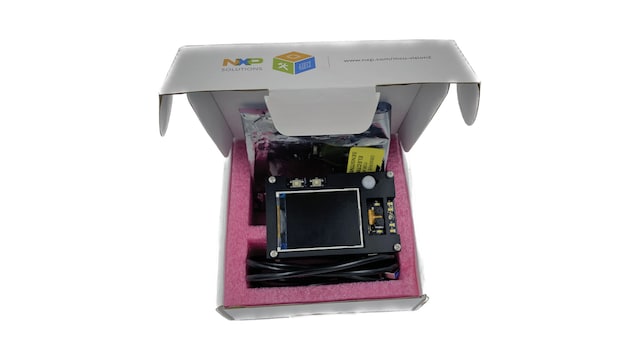

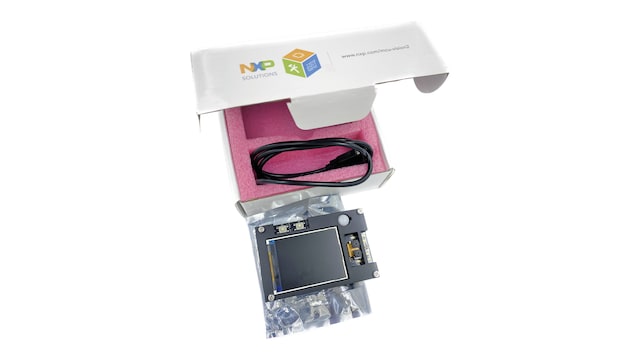

Demo Kit

SLN-VIZNLC-IOT Demo Kit

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

Wireless Connectivity

Multiprotocol MCUs

Features

MCU

  • MIMXRT106FDVL6A/B Crossover MCU
  • LPC845M301JBD48E (Low Power)

Memory

  • 1 MB integrated SRAM
  • 16 MB QSPI Flash
  • 16 MB SDRAM

Cameras and Display

  • Camera Module with GalaxyCore GC0308 Image Sensors (Parallel CSI Interface and RGB or IR Pass Filter)
  • LCD Display with Rocktech RK024HH298 (LCDIF Interface)

Connectivity

  • NXP K32W061 BLE MCU and Integrated PCB Antenna on Board
  • Optional Murata 1XK M.2 Wi-Fi Module

Software and Support

  • MCUXpresso SDK with FreeRTOS support
  • MCUXpresso IDE
  • MCUXpresso Config Tools
  • VIZNLC SDK including NXP OASIS Lite Machine Learning Vision Engine

Buy Options

SLN-VIZNLC-IOT-Image

Click to expand

  • SLN-VIZNLC-IOT

  • NXP EdgeReady MCU-Based Solution for Face Recognition with Liveness Detection.

  • $117.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 28
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
