LPC4300 Series: High Performance Microcontrollers (MCUs) based on ARM® Cortex®-M4/M0 Cores

LPC4300 Series microcontrollers combine the high performance and flexibility of an asymmetric dual-core architecture (ARM Cortex-M4F and Cortex-M0 coprocessor) with multiple high-speed connectivity options, advanced timers, analog, and optional security features to secure code and data communications. DSP capabilities enable all LPC43xx families to support complex algorithms in data-intensive application. Flash and Flashless options support large, flexible internal and external memory configurations. Pin-and-software compatibility with LPC1800 Series MCUs enables LPC43xx MCUs to provide a seamless migration path for increasing processing power and adding the flexibilty of partitioning application tasks across cores.

The LPC4300 Series MCUs are ideal solutions for:

• smart meters
• embedded audio
• industrial automation and control, telematics, white goods, electronic instruments, power management
• point-of sale devices
• medical and fitness devices, diagnostic equipment
• secure connected gateways, secure communication hubs
• automotive aftermarket, including telematics
• data collectors and navigation

LPC4300 MCU families

• LPC431x: Range of serial connectivity, advanced timers, analog and high-speed connectivity including CAN 2.0.
• LPC432x: Range of serial connectivity, advanced timers, analog and high-speed connectivity including Hi-Speed USB, CAN 2.0.
• LPC433x: Range of serial connectivity, advanced timers, analog and high-speed connectivity including Hi-Speed USB, CAN 2.0, 10/100 Ethernet.
• LPC435x: Range of serial connectivity, advanced timers, analog and high-speed connectivity including Hi-Speed USB, CAN 2.0, 10/100 Ethernet, and graphic LCD controller.
• LPC437x: Range of serial connectivity, advanced timers, high-speed analog (80 Msps ADC), and high-speed connectivity including Hi-Speed USB, CAN 2.0, 10/100 Ethernet, and graphic LCD controller.
• LPC43Sxx: Full range of high-speed connectiviy, timing and analog features combined with security features for code and data protection, including AES encryption, OTP key storage, and true random number generation.

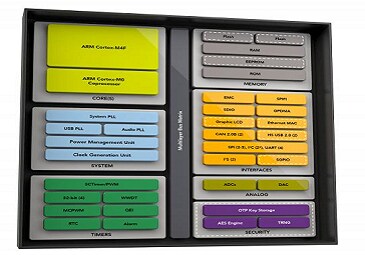

Features

• Cores: 204 MHz, 32-bit ARM Cortex-M4F and 204 MHz, 32-bit ARM Cortex-M0 coprocessor
• Memories and memory expansion
  • Up to 1 MB Flash - Up to 282 kB RAM
  • Memory expansion - SPI Flash interface (SPIFI)
  • 8/16/32-bit external memory controller (EMC)
• Advanced connectivity
  • Hi-Speed USB 2.0 interface, with on-chip Hi-Speed PHY, and Hi-Speed USB 2.0 with ULPI interface
  • Dual CAN 2.0
  • 10/100 Ethernet
  • Graphic LCD up to 1024 x 768 pixel resolution
• Security features (LPC43Sxx devices only)
  • AES-128 encryption engine
  • True random number generator(TRNG)
  • OTP key storage
  • Code read protection (CRP)
• SCTimer/PWM
• Configurable serial GPIO (SGPIO)
• 8-channel GPDMA controller
• Analog: Two 8-channel, 10-bit, 400 ksps ADCs; one 10-bit DAC
• Basic serial connectivity
  • Two Fast-mode I²C
  • Three SPI
  • Four UARTs
