Development Kit for LPC4088

OM13029
Active

Roll over image to zoom in

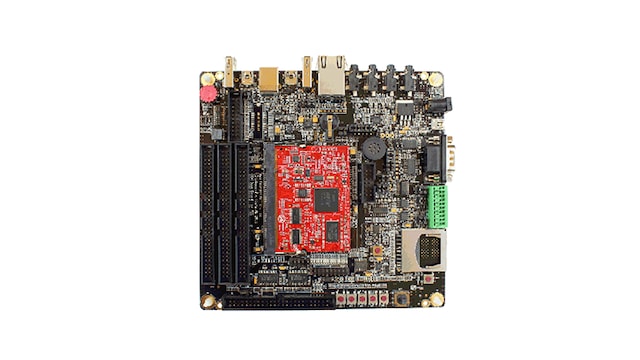

The LPC4088 OEM Board from Embedded Artists is equipped with NXP®'s Cortex-M4 based LPC4088 microcontroller suitable for a wide range of applications that requires advanced communication and high-quality graphics displays. The kit comprises a plug-in module (the “OEM board”) with the LPC4088 microcontroller and memory, and a baseboard which provides access to the microcontroller’s rich set of peripherals. This kit is ideal for engineers who want to fully explore and prototype with the LPC4088.

Product Details

Supported Devices

Processors and Microcontrollers

LPC4000 Arm Cortex-M4

  • LPC4088FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4088FBD208: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4088FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4088FET208: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4072FET80: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4074FBD144: LPC4074FBD144
  • LPC4074FBD80: LPC4074FBD80
  • LPC4076FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4076FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4078FBD100: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FBD144: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FBD208: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FBD80: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FET180: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FET208: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI

Features

Microcontroller

    Cortex-M4 LPC4088

  • Program Flash 128 MB NAND FLASH + 512 kB internal
  • Data Memory 32 MB SDRAM + 96 KB internal SRAM + 4 KB internal EPROM
  • 32-bit data bus to SDRAM (16-bit on special order)
  • SPIFI Memory 32 Mbit QSPI flash
  • Ethernet 100/10 M Ethernet interface based on SMSC LAN8720 Ethernet PHY
  • 12 MHz crystal for CPU and 32.768 kHz crystal for RTC
  • 200 position expansion connector (as defined in SODIMM standard), 0.6 mm pitch
  • Buffered 32-bit databus

Memory

  • Parallel NOR flash on external memory bus
  • 16-bit register and LEDs on external memory bus

Connectivity

  • USB1: OTG or Host interface and connector
  • USB2: Device or Host interface and connector

Sensors

  • 3-axis accelerometer (I²C connected)
  • LM75 temperature sensor (I²C connected)

Audio

  • I²S audio codec (mic in, line in, line out, headphone out)
  • Speaker output on analog output from OEM Board, or from I²S audio codec

Support

  • LCD expansion connector with control signals for touchscreen interface
  • Provision for NXP JN5148 RF module (former Jennic) interface (RF module not included)

Size

  • 200 position, 0.6 mm pitch SODIMM connector for OEM Board
  • Expansion connector with all OEM Board signals
  • Ethernet connector (RJ45)
  • CAN interface and connector (provision for second CAN interface)
  • MMC/SD interface and connector
  • RS422/485 interface and connector
  • SWD/JTAG connector, trace connector and pads for ETM connector
  • Serial Expansion Connector, 14-pos connector with UART/I²C/SPI/GPIO pins
  • Optional coin cell battery for RTC and LED on ALARM output (coin cell not included)
  • 5-key joystick, 5 push-buttons
  • 9 LEDs (8 via I²C and one on ISP-ENABLE)
  • Trimming potentiometer to analog input
  • USB-to-serial bridge on UART #0 (FT232R) and ISP functionality
  • Reset push button and LED

Buy Options

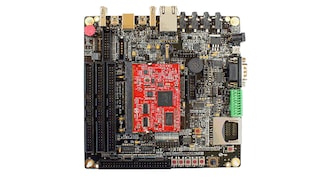

OM13029-Image

Click to expand

OM13029
Active

EA LPC4088 Eval Board.

    $274.85 USD
    In Stock :1

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors

    Documentation

    Quick reference to our documentation types

    Filters

    1 documents

    Compact List

    Design Resources

    Design Files

    Quick reference to our design files types.
    Filters

    1 design file

    • Printed Circuit Boards and Schematics

      LPC4088 Developer’s Kit

      -Rev 1Apr 26, 2019 17:39:001 KBLPC4088-DEVELOPERS-KIT
      Download
