Name: Sensor ToolBox Development Board for FXLS8974CF 3Axis IoT Accelerometer
Price: 138.00 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

Sensor toolbox development board for FXLS8974CF with enablement software tools.

Sensor Boards:

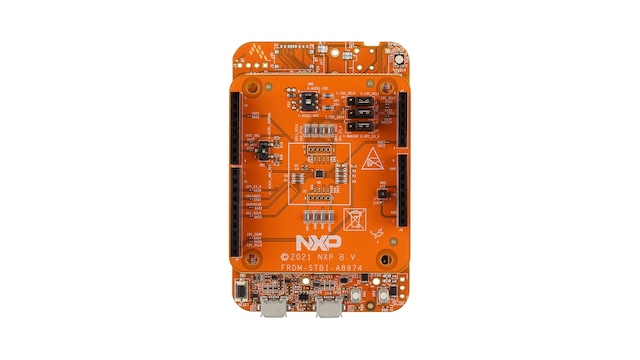

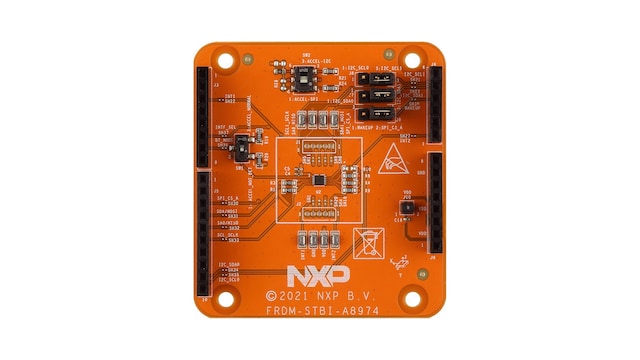

Sensor shield board: FRDM-STBI-A8974 is a sensor add-on/expansion shield board for FXLS8974CF motion wake-up accelerometer which can be used with any NXP FRDM MCU evaluation board with Arduino compatible expansion connectors

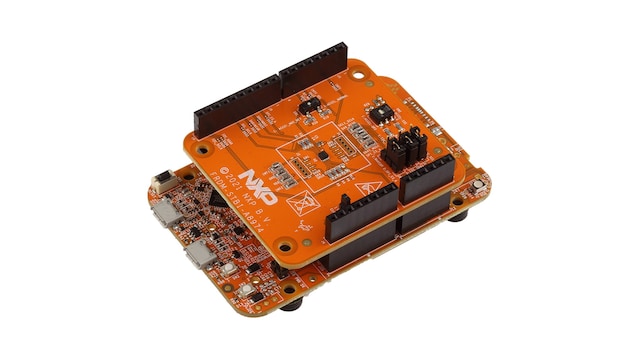

Evaluation kit: FRDM-K22F-A8974, sensor shield board can be kitted with FRDM-K22F MCU board to enable quick customer evaluation and development using sensor toolbox enablement software tools

Embedded Software Framework:

MCUXpresso application code hub
IoT Sensing SDK: Provides Embedded sensor projects for the demo and custom kits through MCUXpresso
Sensors SW Component Library: Provides platform agnostic software source files, modules, and libraries for sensor drivers

Evaluation and Visualization Software:

FreeMASTER Sensor Tool: Provides out-of-box sensor demo and application development platform for FXLS8974CF

Design Files

Software

Product Details

Supported Devices

Sensors

Accelerometers

FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

Features

Demonstration / Custom Kits

Enables out-of-the-box demos and evaluation using the FreeMASTER sensor tool
- Graph visualization, register level analysis, real-time interrupt evaluation and data logging
Enables embedded sensor project development using IoT Sensing SDK
- Example out-of-box projects for sensors with ultra-low power motion wake-up, interrupt, polling and FIFO modes using I²C, SPI

Sensor Shield Board

Compatible with Arduino^® and most NXP FRDM development boards
Supports I²C and SPI communication interface with host MCU
Supports hardware configurability to switch accelerometer mode (normal versus motion detect) and I²C/SPI interface mode
Support multiple test points on the board

Buy Options

Click to expand

FRDM-STBI-A8974
Active

Sensor ToolBox Development Board for FXLS8974CF 3-Axis IoT Accelerometer.

Kit Contains

Kit Contains:

FRDM-STBI-A8974 Sensor Shield Board
USB cable
Quick Start Guide

Expansion Board: Yes

$16.00 USD

In Stock :36

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

FRDM-K22F-A8974
Active

Sensor ToolBox Development Board for FXLS8974CF 3-Axis IoT Accelerometer.

Kit Contains

Kit Contains:

FRDM-STBI-A8974 sensor shield board
FRDM-K22F MCU board
USB cable
Quick Start Guide

Expansion Board: Yes

$138.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
