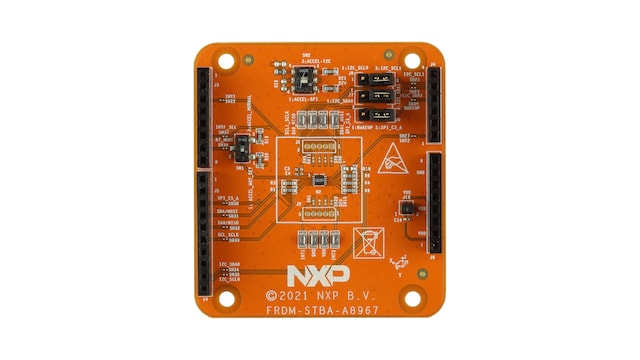

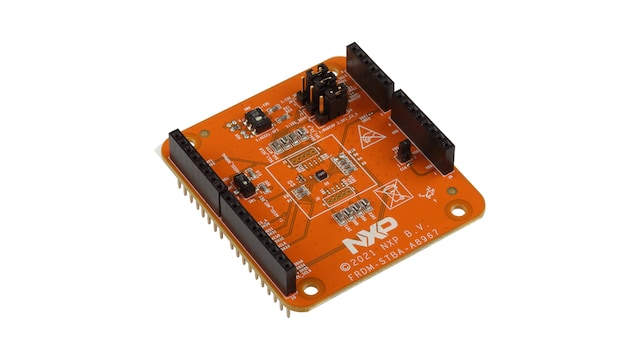

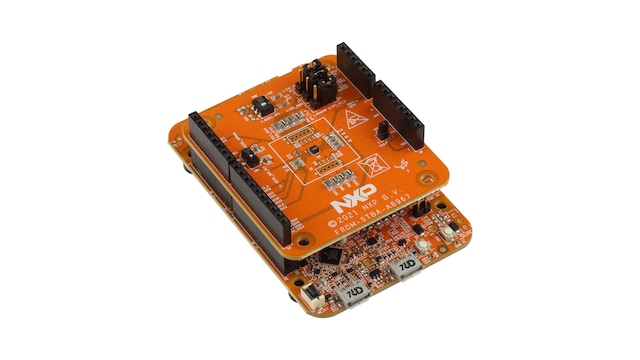

Sensor ToolBox Development Board for FXLS8967AF 3-Axis Accelerometer

FRDM-STBA-A8967

Roll over image to zoom in

Sensor toolbox development board for FXLS8967AF with enablement software tools.

Sensor Boards:

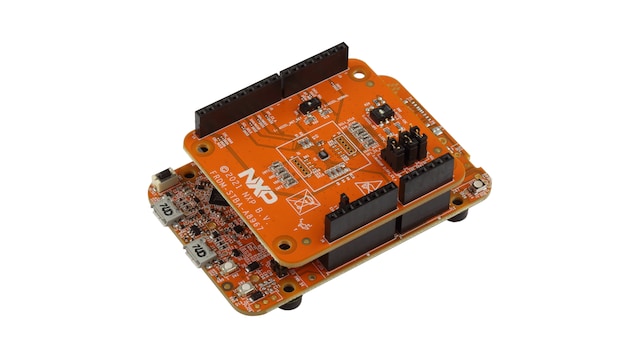

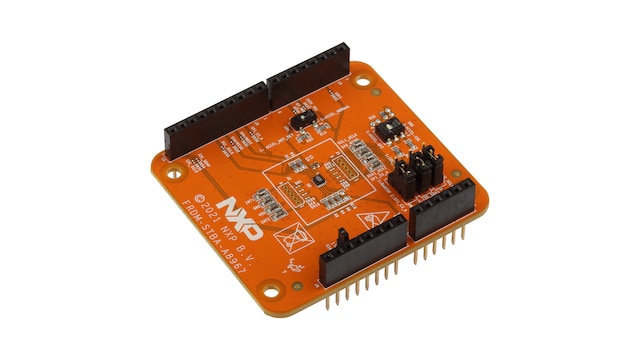

  • Sensor shield board: FRDM-STBA-A8967 is a sensor add-on/expansion shield board for FXLS8967AF 3-axis accelerometer for automotive security and convenience applications which can be used with any NXP FRDM MCU evaluation board with Arduino compatible expansion connectors

Embedded Software Framework:

Evaluation and Visualization Software:

Product Details

Supported Devices

Sensors

Accelerometers

  • FXLS8967AF: ±2g/±4g/±8g/±16g, Low Power 12-bit Digital Accelerometer

Features

Demonstration / Custom Kits

  • Enables 'out of the box' demos and evaluation using the FreeMASTER sensor tool
    • Graph visualization, register level analysis, real-time interrupt evaluation and data logging
  • Enables embedded sensor project development using IoT sensing SDK
    • Example out-of-box projects for sensors with ultra-low power motion wakeup, interrupt, polling and FIFO modes using I²C, SPI

Sensor Shield Board

  • Compatible with Arduino® and most NXP Freedom development boards
  • Supports I²C and SPI communication interface with host MCU
  • Supports hardware configurability to switch accelerometer mode (normal vs motion detect) and I²C/SPI interface mode
  • Support multiple test points on the board

Buy Options

FRDM-STBA-A8967-Image

Click to expand

  • FRDM-STBA-A8967
    Active

  • Sensor ToolBox Development Board for FXLS8967AF 3-Axis Accelerometer.

  • Kit Contains:

    • FRDM-STBA-A8967 sensor shield board
    • USB cable
    • Quick Start Guide
  • $80.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 17
    • Shipping: Normally ships 1-2 business days
ADD TO CART
