NXP EdgeReady MCU Based Solution for Local Voice Control

MCU-LOCAL2-VOICE

Roll over image to zoom in

NXP's EdgeReady MCU-based solution for offline local voice control, leverages the i.MX RT crossover MCU, enabling developers to quickly and easily add voice assistant capabilities to their products. This i.MX RT106S based turnkey solution includes a development kit (SLN-LOCAL2-IOT) with fully integrated software running on FreeRTOS, for quick out-of-the-box evaluation and proof of concept development. The BOM cost optimized reference design and production ready SDK minimizes time to market, risk, and development effort, enabling OEMs to easily add voice to their smart home, smart appliance, smart building and smart industrial products, without the need for Wi-Fi or cloud connectivity, addressing the privacy concerns of many consumers. This second generation local voice solution had a Windows™ based tool enabling developers to create speech models for over one hundred custom commands and multiple wake words from text input, with support for over forty languages.

Product Details

Select a section:

Block Diagram

Choose a diagram:

Local Voice Hardware

i.MX RT 106S Reference Design – Hardware Block Diagram

Local Voice Software

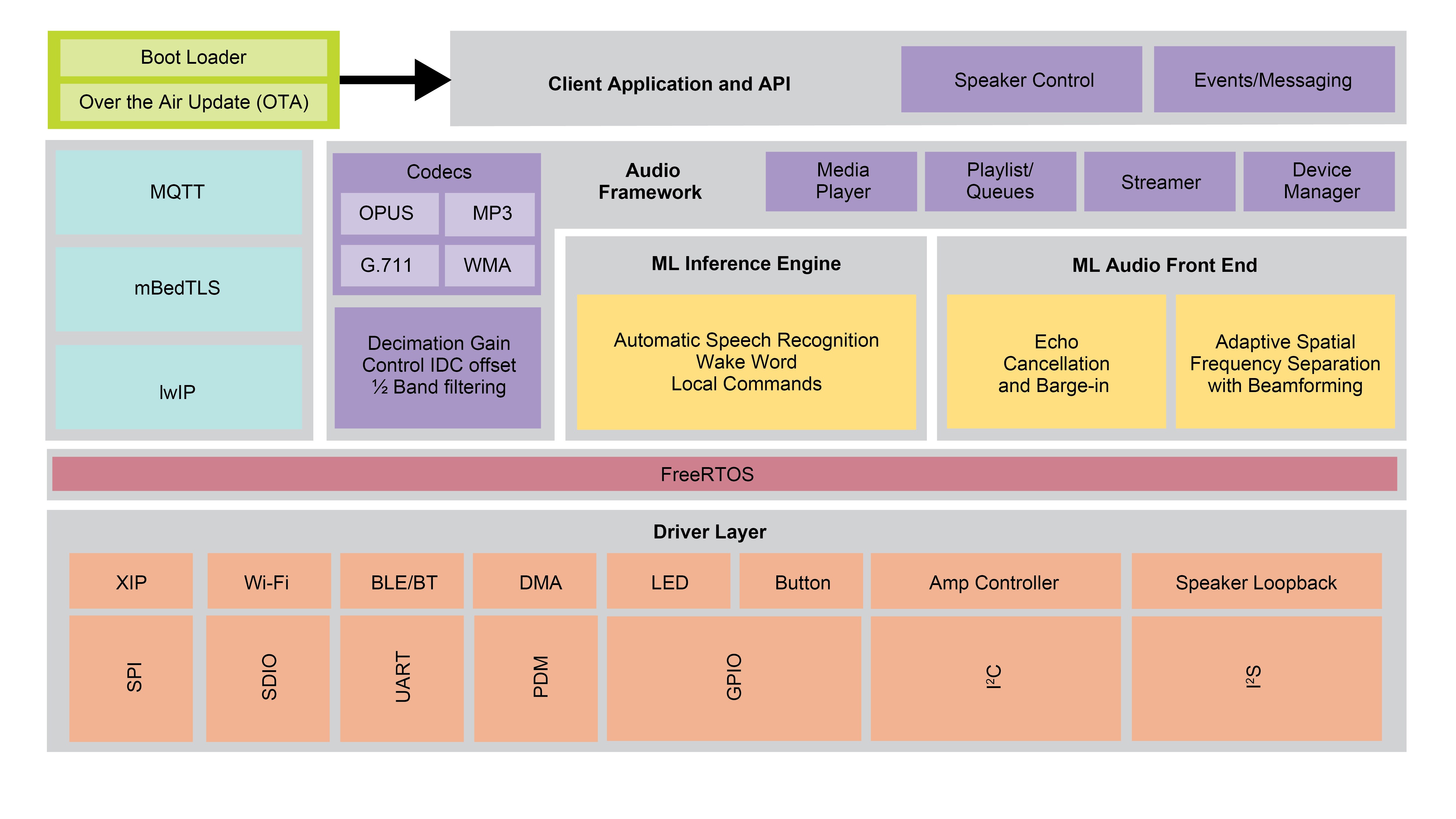

i.MX RT 106S Reference Design – Software Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1060: i.MX RT1060 Crossover MCU with Arm® Cortex®-M7 Core

Features

MCU

  • i.MX RT1060 Crossover MCU with Arm® Cortex®-M7 core, 3020 CoreMark/1284 DMIPS @ 600 MHz, 32 kB I-cache, 32 kB D-cache, FPU

Versatility

  • No voice or audio expertise required, and built on FreeRTOS for easy integration into MCU based IoT product designs
  • Supports up to three low cost MEMS microphones for 360° far field voice (only two microphones needed for 180° applications)

Digital to Analog Converter (DAC)

  • On chip MQS DAC for low cost audio playback with optional inexpensive analog amplifier

Protocols

  • MQTT, lwIP, mBedTLS (optional)
  • AWS IoT Core (optional)

Single Power Supply

  • 3.3 V Supply

External

  • 16 MB QSPI Flash (to support over the air updates)

Internal

  • 1 MB on-chip RAM

Wi-Fi®

  • 802.11 b/g/n

Bluetooth®

  • Bluetooth/Bluetooth Low Energy (4.1)

Buy Options

SLN-LOCAL2-IOT-Image

Click to expand

  • SLN-LOCAL2-IOT

  • NXP EdgeReady MCU Based Solution for Local Voice Control.

  • Evaluation and development kit for NXP’s i.MX RT106S solution for offline local voice control

    Kit contains:

    • i.MX RT106S local voice development kit
    • USB Type-C Y Cable
  • $171.35 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
