SiC EV Power Inverter Control Reference Platform

Engineered for enabling SiC MOSFET in high-voltage traction motors.

Overview

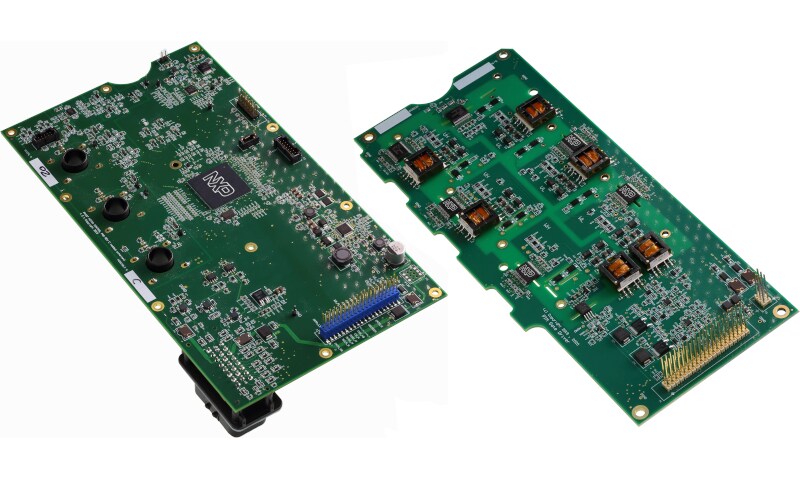

Power PCB top view
Motor Control PCB top view
Power PCB bottom view
Motor Control PCB bottom view
What is SiC?

What is SiC?

Power PCB top view

Power PCB top view

Motor Control PCB top view

Motor Control PCB top view

Power PCB bottom view

Power PCB bottom view

Motor Control PCB bottom view

Motor Control PCB bottom view

Speed Development

Three options: enablement kit, safety kit or full inverter platform.

Inverter Enablement Kit

Two reference boards and software by NXP.

Full Inverter Platform Solution

Vepco’s complete inverter assembly with customized software.

Certified Components

NXP offers the latest in ISO 26262 certified components.

Functional Safety

Targeting ISO 26262 ASIL D safety documentation and inverter safety concept.

Specifications

Choose a diagram

EV-INVERTERHD Block Diagram

EV-INVERTERHD Block DiagramGate Driver w/HV IsolationGate Driver w/HV IsolationMotor Control MCUMotor Control MCUSafety System Basis ChipSafety System Basis ChipCAN InterfaceCAN InterfaceEthernet PHY TransceiverEthernet PHY Transceiver
  • GD3160 :  Advanced Single-Channel High-Voltage Isolated Automotive Gate Driver for SiC MOSFETs/IGBTs
  • FS6500 :  Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver
  • TJA1051 :  High-Speed CAN Transceiver
  • TJA1100HN :  IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Technical and Functional Specifications

Overview

  • Contains two PCB boards described below and software to drive a three-phase motor to enable quick development of your in-house inverter design using a complete NXP solution.
  • For each of the boards included in the EV-INVERTERHD enablement kit hardware schematics, PCB layout and gerber files are available for download from a secured site.

MCU Control Board
(EV-CONTROLEVMHD):

  • This board contains four key NXP integrated circuits, interface connector and current sensors. The MPC5775E is a 32-bit Power Architecture dual-core ASIL D MCU targeted for motor control, offering performance up to 264 MHz/core, CSE security, eTPU timers, software resolver and a highly scalable solution. The FS65xx system basis chip (SBC) provides power to the MCU, optimizing energy consumption and providing low voltage side monitoring and protection. The TJA1051 transceiver for high-speed CAN applications in the automotive industry provides the differential transmit and receive capability to the MPC5775E and a CAN protocol controller. As an alternative communication protocol, the TJA1100HNZ is an automotive Ethernet PHY chip with 100BASE-TI single-port PHY optimized for automotive use cases.
  • Interface connector is a 23-pin connector for motor control inputs.
  • Three LEM current sensors are incorporated on the board providing +/- 900 amp measurement range.

Driver Control Board for HD Module
(EV-POWEREVBHD):

  • • This board is designed with the StarPower P6 (HybridPACK™ Drive) module populated with Cree 1200V/600A 13mΩ SiC MOSFET die. It features the GD3160 advanced single-channel gate driver for IGBTs and SiC MOSFETs. Integrated galvanic isolation and low on-resistance drive transistors provide high charging and discharging current, low dynamic saturation voltage and rail-to-rail gate voltage control. The board autonomously manages severe faults and reports faults and status via INTB pin and an SPI interface. Gate voltage is supplied via isolated transformers and a flyback controller.

Basic Software Featuring:

  • Software will be provided to allow for system configuration and basic control of a three-phase inverter for driving a permanent magnetic synchronous motor (PMSM) or induction motor.
    • Low-level SDK device drivers and inverter services middleware with function calls for controlling platform motor operations.
    • Advanced AMMCLib optimized software libraries for precise motor drive control.
    • FreeMASTER graphical user interface for operating and monitoring the inverter platform.

Functional Safety

  • ASIL C/D compliance with small, compact 10 IC system footprint
  • Robust fail-silent SBC with grade 0 capability
  • Functional safety case and enablement software with API

Inverter Specifications

  • Peak output power > 180 kW continuous
  • Operating input voltage range 350-600 VDC
  • Nominal operating voltage 600 VDC
  • Continuous current > 220 A, rms / peak current > 450 A, rms
  • Motor operating speed: Maximum speed 12 k RPM for 30 sec, nominal speed 6.4 k RPM
  • PWM switching frequency: 3–12 kHz
  • Maximum inverter electrical efficiency may perform > 99%

System Control

  • Efficiently drives 180 kW 3-phase motor from a 400 V supply
  • Redundant CAN bus interface with low power standby
  • Integrated galvanic signal isolation in SiC/IGBT gate drivers

Size

  • Small footprint ASIL D 180 kW power inverter enablement
  • Inverter mechanical envelope: 28 x 28 x 14 cm
  • Inverter mass < 10 Kg

Motor Configuration

  • 3 Phase PMSM

Voltage / Power

  • Operating voltage: 250-600 VDC, nominal 600 VDC
  • Peak current: 450 A rms
  • Peak output power: 180 kW for 30 sec

Torque / Speed

  • Continuous 135 Nm, peak 300 Nm
  • Maximum speed 12 k RPM for 30 sec, nominal speed 6.4 k RPM

Motor sensors

  • Resolver mechanical position sensor

Motor size

  • 250 mm OD X 275 mm L
  • Weight: 59 kg dry

Buy

  • EV-INVERTERHD   Active

  • SiC EV Power Inverter Control Reference Platform

  • The EV-INVERTERHD kit contains two PCB and the basic three phase software for motor drive.

    • MCU Control Board (EV-CONTROLEVMHD)
    • Driver Control Board (EV-POWEREVBHD) fits (HybridPACK™ Drive), StarPower P6 module footprint
    • Basic three-phase software
    • Schematics, Gerber files and user manuals
    • System Safety Concept Application Note
    • 1 @ US
    • $5000.00
      • Use Coupon
      • Distributor

        • Don't have an NXP coupon? You can purchase this product from one of our authorized distributors.

EV-INVERTERHD-Image
1579109330588723448640

Design Resources

Getting Started with the SiC EV Power Inverter Control Reference Platform

Getting Started with the SiC EV Power Inverter Control Reference Platform.

Get Started

Enablement Kit Development Support

The EV-INVERTERHD enablement kit comes with:

  • MCU control board and driver control board for HybridPACK™ module
  • Registration ID for entitlement to download the development suite (downloadable upon activation)

Access to development suite include:

  • NXP device collateral

    MPC5775E, GD3160, FS6500, TJA1051, TJA1100 - Datasheets, errata’s, functional safety document and software drivers

  • Enablement kit hardware design collateral

    Reference design schematics (PDF), Gerber files, BOM, user manual

  • Software

    Basic software with service level SDK drivers and software user manual outlining installation

    Advanced AMMCLIB optimized software libraries for precise motor drive control

    FreeMaster graphical user interface for operating and monitoring the inverter platform

  • System safety package (in development 2021)
