Single Coil Wireless Power Solution

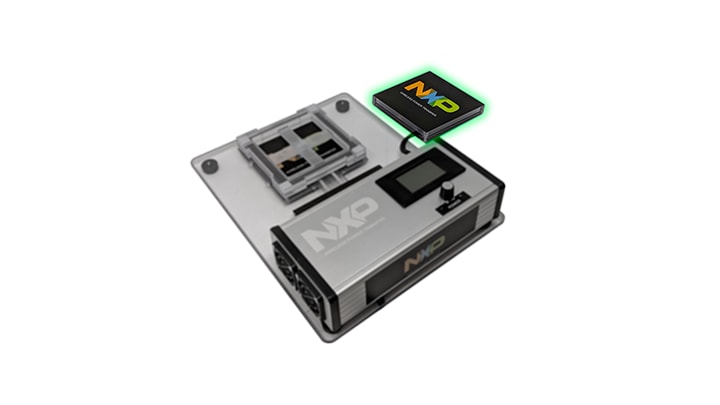

WPS-65WS

Roll over image to zoom in

Product Details

Select a section:

Block Diagram

Choose a diagram:

Wireless Power Voltage

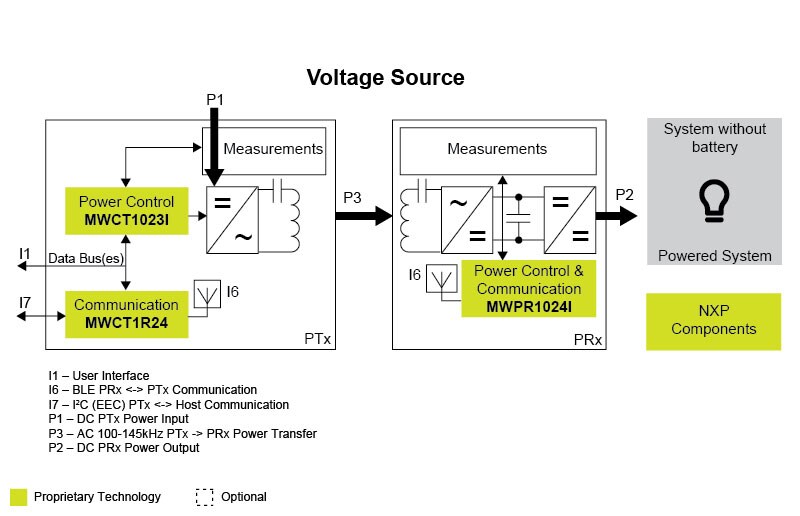

65W Wireless Power Voltage Source Block Diagram

Wireless Power Current Source

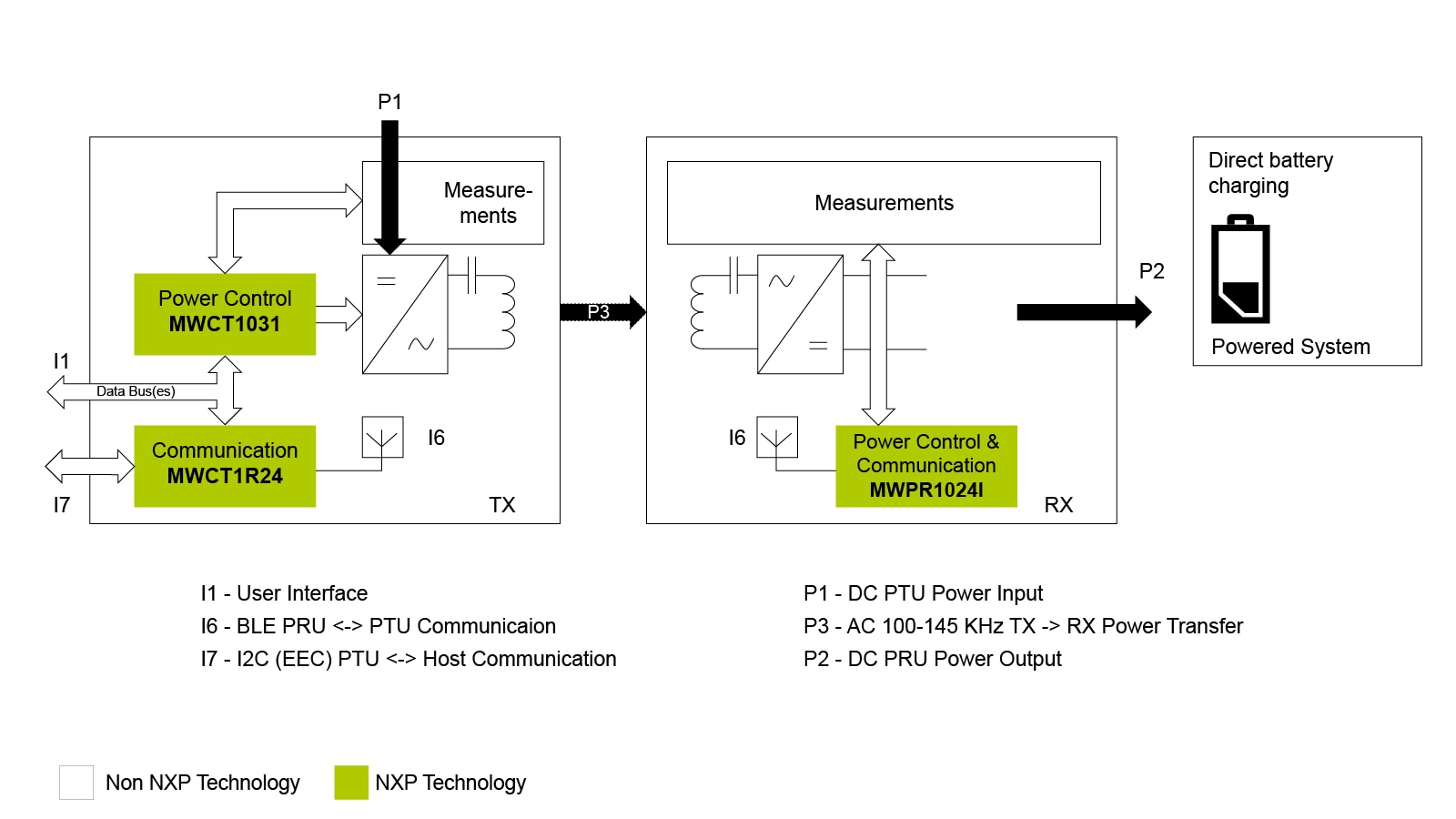

65W Wireless Power Current Source Block Diagram

Features

Nominal Power

    65 W

Working Frequency

    100-145 kHz

PRx Output Voltage

    20 V nominal voltage, 12-48 V – depending on the application and coil setup

PRx – PTx coil z-gap

    4-35 mm - depending on the coil setup

Efficiency

    80-90%

Safety

    Robust foreign object detection

Bluetooth® Low Energy

    Leverage communication between PTx and PRx for IoT connectivity

I2C

    Performs system control and runtime data monitoring

Wireless Power Protocol

    Proprietary protocol based on Qi Wireless Power Consortium
