Murata NXP 88W8801 Shielded Small Wi-Fi® 11b/g/n Module

MURATA-2DS-MODULE

Roll over image to zoom in

Product Details

Block Diagram

Murata's 2DS Module Block Diagram

Type 2DS | Murata Wi-Fi Module | NXP 88W8801

Features

Wireless Standard

  • Wi-Fi 4, IEEE 802.11 b/g/n

Interface

  • SDIO

Antenna No.

  • 1x1

Characteristics

  • Chipset: NXP 88W8801
  • Module Size: 25 x 14 x 2.4mm
  • Frequency: 2.4 GHz
  • WLAN MAX Data Rate: 72.2 Mbps
  • WLAN TX Power: 17 dBm @ 11b (2.4GHz), 14 dBm @ 11g (2.4GHz), 14 dBm @ 11n (2.4GHz)
  • WLAN RX Sensitivity: -76 dBm @ 11b (2.4GHz), -65 dBm @ 11g (2.4GHz), -64 dBm @ 11n (2.4GHz)
  • VBAT: 3~3.6V
  • VIO: 1.8V, 3.3V
  • Operating Temperature: -40 to +85 ℃
  • Regulatory Certification: FCC, IC, CE, TELEC

Software Support

  • Linux (Q4 2021)
  • Android
  • MCUXpresso (FreeRTOS)

buy

Buy Options

Click to expand

  • EAR00386

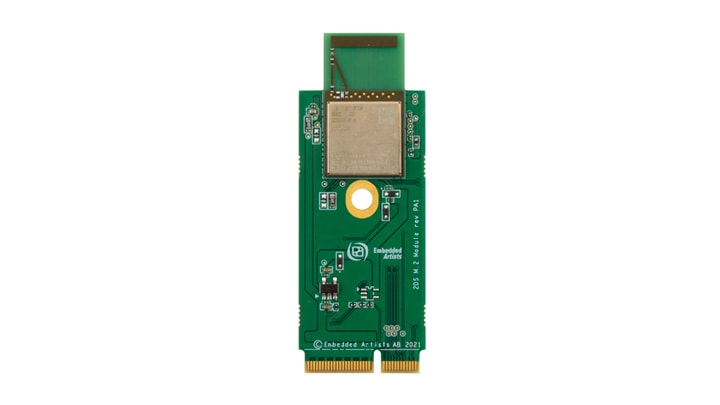

  • Embedded Artists 2DS M.2 module with built-in PCB trace antenna.

    • Mass production module

Click to expand

  • LBEE0ZZ1WE-uSD-M2

  • Murata uSD-M.2 Adapter

    • M.2 screw; 75mm 20-pos
    • 0.5mm pitch flat/flex cable
    • 13 pieces 200mm long male-to-female jumper cables (compatible with Arduino header)
    • 4 x 19mm stand-offs in nylon and associated M3 screws
    • microSD to SD Card Adapter
