Murata NXP 88W8987 Shielded Ultra Small Dual Band Wi-Fi 11a/b/g/n/ac + Bluetooth 5.1 Module

MURATA-1ZM-MODULE

Roll over image to zoom in

Type 1ZM is a small and very high performance module based on NXP 88W8987 combo chipset which supports Wi-Fi® 802.11a/b/g/n/ac + Bluetooth® 5.1 BR/EDR/LE up to 433Mbps PHY data rate on Wi-Fi and 3Mbps PHY data rate on Bluetooth®. The WLAN section supports SDIO 3.0 interface and the Bluetooth section supports high-speed 4-wire UART interface and PCM for audio data.

The 88W8987 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth collaboration is optimized for maximum performance.

In IEEE 802.11ac mode, the WLAN operation supports rates of MCS0 - MCS9 (up to 256 QAM) in 20MHz, 40MHz and 80MHz channels for data rate up to 433Mbps.

Type 1ZM module is packaged in an impressively small form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more.

Product Details

Select a section:

Block Diagram

Type 1ZM Module Block Diagram

Type 1ZM Module Block Diagram

Features

Wireless Standard

  • Wi-Fi 5, IEEE 802.11 a/b/g/n/ac, Bluetooth 5.1 BR/EDR/LE

Interface

  • SDIO, UART, PCM, GPIO

Key Specifications

  • Chipset: NXP 88W8987
  • Module Size: 10.2 x 9.3 x 1.3mm
  • Frequency: 2.4 and 5 GHz
  • WLAN MAX Data Rate: 433 Mbps
  • WLAN TX Power: 17 dBm @ 11b (2.4GHz), 16 dBm @ 11g (2.4GHz), 15 dBm @ 11n (2.4GHz), 15 dBm @ 11a (5GHz), 14 dBm @ 11n (5GHz), 13 dBm @ 11ac (5GHz)
  • WLAN RX Sensitivity: -76 dBm @ 11b (2.4GHz), -65 dBm @ 11g (2.4GHz), -64 dBm @ 11n (2.4GHz), -65 dBm @ 11a (5GHz), -61 dBm @ 11n (5GHz), -51 dBm @ 11ac (5GHz)
  • Bluetooth Class: 1
  • Bluetooth MAX Data Rate: 3 Mbps
  • VBAT: 2.7~5.5V
  • VIO: 1.8V
  • Operating Temperature: -30 to +85 ℃
  • Regulatory Certification: FCC, IC, CE, TELEC

Software Support

  • Linux
  • Android
  • MCUXpresso (FreeRTOS)

buy

Buy Options

Click to expand

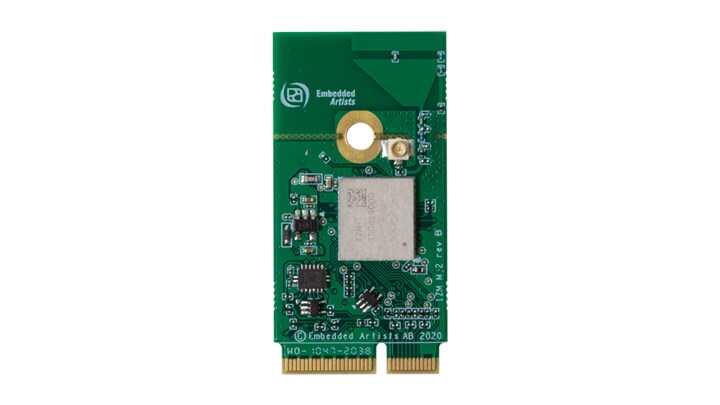

  • LBEE0ZZ1WE-uSD-M2

  • Murata uSD-M.2 Adapter

    • M.2 screw; 75mm 20-pos
    • 0.5mm pitch flat/flex cable
    • 13 pieces 200mm long male-to-female jumper cables (compatible with Arduino header)
    • 4 x 19mm stand-offs in nylon and associated M3 screws
    • microSD to SD Card Adapter
