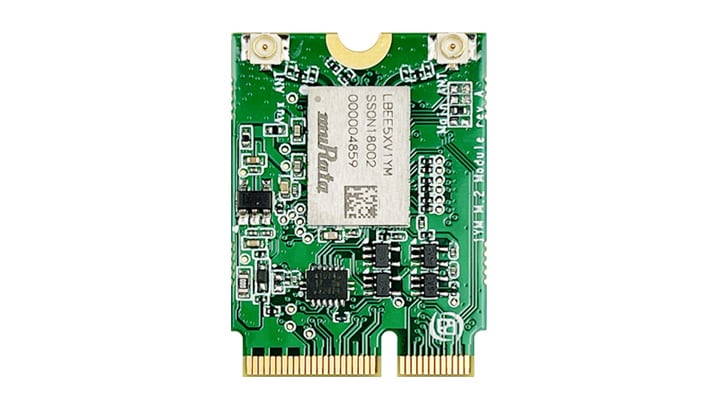

Murata NXP 88W8997 Shielded Ultra Small Dual band Wi-Fi® 11a/b/g/n/ac 2x2 MIMO + Bluetooth® 5.2 Module

MURATA-1YM-MODULE

Roll over image to zoom in

Product Details

Block Diagram

Type 1YM Module Block Diagram

Type 1YM Module Block Diagram

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth®

Power Management

PMICs

Features

Wireless Standard

  • Wi-Fi 5, IEEE 802.11 a/b/g/n/ac 2x2 MIMO 866Mbps

Interface

  • PCIe, SDIO, USB, UART, PCM, GPIO

Key Specifications

  • 2x2 MIMO
  • Chipset: NXP 88W8997
  • Module Size: 11.8 x 8.4 x 1.3mm
  • Frequency: 2.4 and 5 GHz
  • WLAN MAX Data Rate: 866 Mbit/s
  • WLAN TX Power: 17 dBm @ 11b (2.4GHz), 13 dBm @ 11g (2.4GHz), 12 dBm @ 11n (2.4GHz), 12 dBm @ 11a (5GHz), 11 dBm @ 11n (5GHz), 10 dBm @ 11ac (5GHz)
  • WLAN RX Sensitivity: -76 dBm @ 11b (2.4GHz), -65 dBm @ 11g (2.4GHz), -64 dBm @ 11n (2.4GHz), -65 dBm @ 11a (5GHz), -61 dBm @ 11n (5GHz), -51 dBm @ 11ac (5GHz)
  • Bluetooth Class: 1
  • Bluetooth MAX Data Rate: 3 Mbit/s
  • VBAT: 2.7~5.5V
  • VIO: 1.8V, 3.3V
  • Operating Temperature: -30 to +85 ℃
  • Regulatory Certification: FCC, IC, CE, TELEC

Software Support

  • Linux
  • Android
