RDIMX53SABRETAB: SABRE Platform for Tablets based on i.MX53

Overview

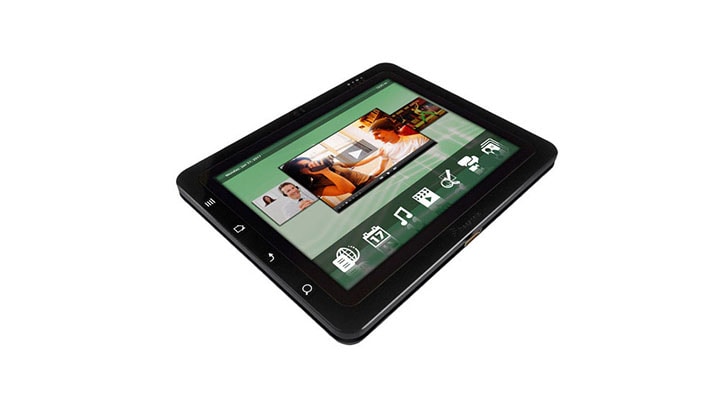

The NXP^® Smart Application Blueprint for Rapid Engineering (SABRE) platform for tablets based on the i.MX53 family of multimedia applications processors delivers the ultimate in performance and design flexibility for enabling new product designs in vertical markets such as industrial, medical and home automation.

Can be used to evaluate the i.MX53 for use in any mobile device requiring low power and an amazing user experience
With on-chip offerings, system-level power and performance optimizations and form-factor readiness, the SABRE platform for tablets enables you to rapidly innovate new consumer products
Broad operating system support includes Android™, Linux^® and Windows^® Embedded

MoreLess

Target Applications

Telehealth System

SABRE Platform for Tablets Based on i.MX53

Specifications

Technical and Functional Specifications

Processor sub-system	i.MX 53 1 GHz Arm Cortex-A8 Processor 1 GB DDR3 SDRAM up to 400 MHz (800 MHz DDR) 4 GB eMMC Flash Power Management IC
Display	10.1” 1024 x 768 LVDS Display with Integrated P-cap Sensing HDMI Connector LVDS Connector (for optional second display)
User Interface	10.1” Capacitive Multi-Touch Display Capacitive Buttons: Home, Menu, Back, Search Other Buttons: Power, Reset, Volume Up/Down
Audio	NXP^® Audio Codec SPDIF via HDMI 2 x 1W@8 ohm Speakers Headphone/Microphone Jack
Analog Sensors	NXP 3-Axis Accelerometer
Camera	Omnivision 5 MP Sensor
Wireless Connectivity	Atheros Wi-Fi/BT Module Atheros GPS Receiver NXP 2.4 GHz IEEE^® 802.15.4/ZigBee^®
Connectivity	Full-size SD/MMC Card Slot 7-pin SATA Data Connector 2 x USB 2.0 High-Speed Host Ports Micro USB 2.0 High-Speed OTG Port
Debug	Debug Board (separate PCB) 10/100BT Ethernet Port 20-pin JTAG Connector DB-9 UART Port
Expansion Connector	Parallel LCD interface I²C Resistive touch LCD backlight rails
Miscellaneous	Sandisk 8 GB SSD 3-cell Li-ion Battery and Charger (currently on backorder, available Q4 2011) Power Supply 15 V, 3A Form-factor enclosure
