MCUXpresso Integrated Development Environment (IDE)

Overview

The MCUXpresso IDE brings developers an easy-to-use Eclipse-based development environment for NXP^® MCUs based on Arm^® Cortex^®-M cores, including its general purpose crossover and Bluetooth^™-enabled MCUs. The MCUXpresso IDE offers advanced editing, compiling, and debugging features with the addition of MCU-specific debugging views, code trace and profiling, multicore debugging, and integrated configuration tools. The MCUXpresso IDE debug connections support Freedom, Tower^® system, LPCXpresso, i.MX RT-based EVKs, and your custom development boards with industry-leading open-source and commercial debug probes from NXP, P&E Micro^®, and SEGGER^®.

MoreLess

Features

A complimentary, unlimited code size, easy-to-use IDE
Advanced editing, compiling and editing with syntax coloring, MCU-specific debugging views, code trace and profiling
Use built-in SDK selection tool, or drag and drop pre-built packages made with SDK Builder
Integrated configuration tools, including pins, clocks, peripheral and TEE tools
Industry-standard GNU toolchain with a choice of libraries: optimized C library or the standard GNU Newlib/Nano library with support for semihosting
SWO trace and profiling (via SEGGER J-Link, PE Micro, MCU-Link or LPC-Link2 probes)
Instruction trace (for ETB / MTB enabled devices)
Integrated GUI Flash Programming Tool
Rich viewing capabilities for Peripheral Registers, Global Variables, Textual/Graphical Live Variables
New Project Wizards and easy SDK example importing
Heap and Stack Usage view to track heap and stack usage of bare metal projects
Image Info view gives detailed overall memory usage, memory regions content and static call graphs including stack usage information
Support for FreeRTOS and Azure RTOS ThreadX aware debugging
Highly extensible using widely available Eclipse plug-ins
Energy/power/current measurement (where supported)
Host operating systems:
- Ubuntu Linux^® 18.04 LTS / 20.04 LTS
- macOS 10.14/Mojave, 10.15/Catalina, 11.x/Big Sur
- Microsoft^® Windows^® 10 (64-Bit only)

MoreLess

Features

A complimentary, unlimited code size, easy-to-use IDE
Advanced editing, compiling and editing with syntax coloring, MCU-specific debugging views, code trace and profiling
Use built-in SDK selection tool, or drag and drop pre-built packages made with SDK Builder
Integrated configuration tools, including pins, clocks, peripheral and TEE tools
Industry-standard GNU toolchain with a choice of libraries: optimized C library or the standard GNU Newlib/Nano library with support for semihosting
SWO trace and profiling (via SEGGER J-Link, PE Micro, MCU-Link or LPC-Link2 probes)
Instruction trace (for ETB / MTB enabled devices)
Integrated GUI Flash Programming Tool
Rich viewing capabilities for Peripheral Registers, Global Variables, Textual/Graphical Live Variables
New Project Wizards and easy SDK example importing
Heap and Stack Usage view to track heap and stack usage of bare metal projects
Image Info view gives detailed overall memory usage, memory regions content and static call graphs including stack usage information
Support for FreeRTOS and Azure RTOS ThreadX aware debugging
Highly extensible using widely available Eclipse plug-ins
Energy/power/current measurement (where supported)
Host operating systems:
- Ubuntu Linux^® 18.04 LTS / 20.04 LTS
- macOS 10.14/Mojave, 10.15/Catalina, 11.x/Big Sur
- Microsoft^® Windows^® 10 (64-Bit only)

User Guide

Download

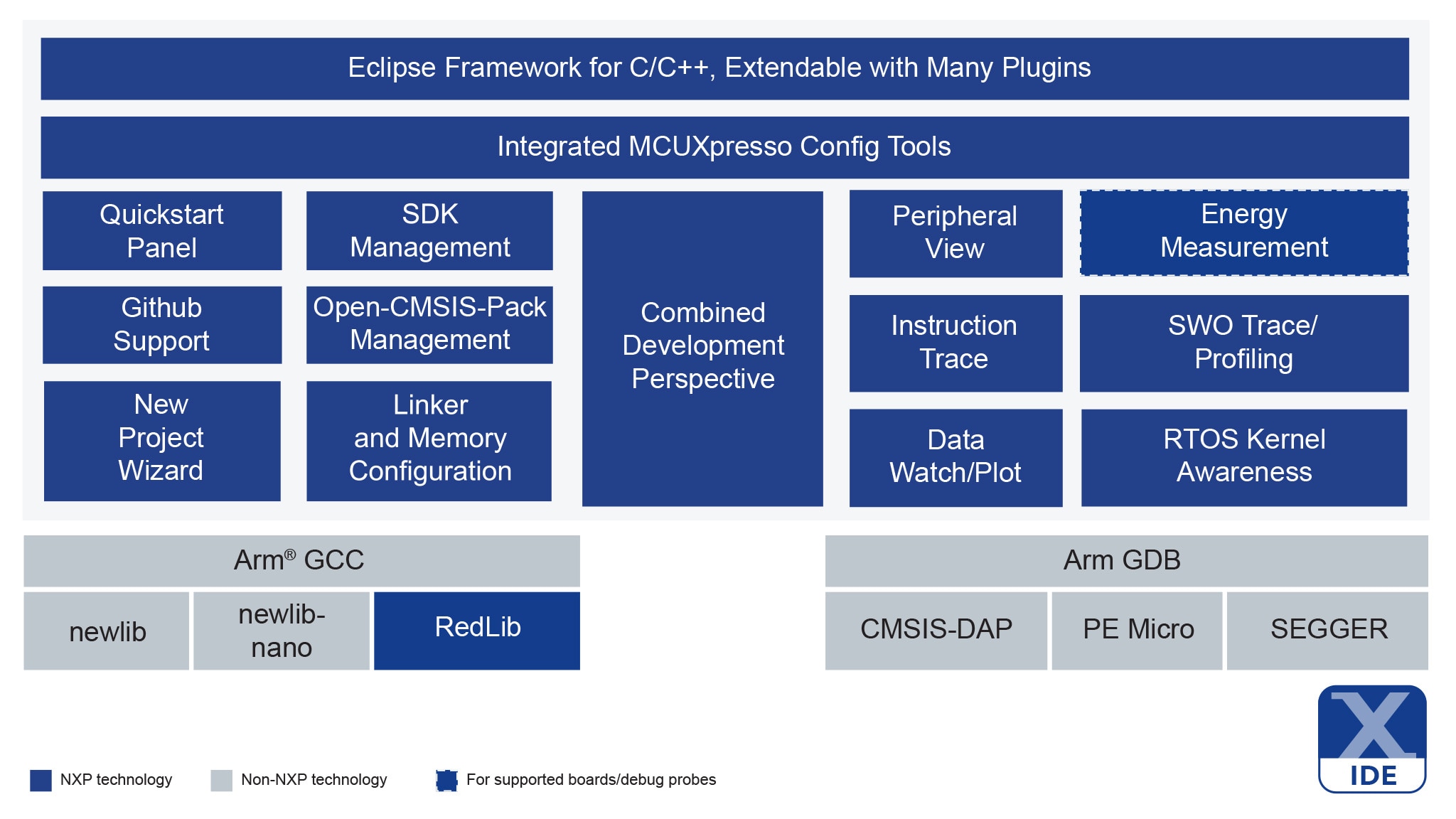

MCUXpresso IDE Block Diagram

MCUXpresso IDE is an Eclipse-based IDE for simple debug, edit and compile

MCU Minutes | MCUXpresso Software and Tools Overview

MCUXpresso IDE Block Diagram
MCUXpresso IDE is an Eclipse-based IDE for simple debug, edit and compile
MCU Minutes | MCUXpresso Software and Tools Overview

MCUXpresso IDE Block Diagram

MCUXpresso IDE is an Eclipse-based IDE for simple debug, edit and compile

MCU Minutes | MCUXpresso Software and Tools Overview

Previous Next

Supported Devices

Processors and Microcontrollers
- Arm Microcontrollers
  - LPC1800 Series: High-Performance Microcontrollers (MCUs) based on Arm^® Cortex^®-M3 Cores
    - LPC18S57JET256: 32-bit Arm^® Cortex^®-M3 MCU; 1 MB Flash and 136 KB SRAM; Ethernet, Two High-speed USB, LCD, EMC, AES Engine
    - LPC1830FET100: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1833JET100: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC18S30FET100: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 200 KB SRAM; Ethernet, Two HS USB, EMC
    - LPC1837JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1833JBD144: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1827JET100: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1830FET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1850FET180: Quad SPI Flash Interface (SPIFI), 200 KB SRAM, Two High-speed USB, Ethernet, LCD, TFBGA180 Package
    - LPC1850FET256: Quad SPI Flash Interface (SPIFI), 200 KB SRAM, Two High-speed USB, Ethernet, LCD, LBGA256 Package
    - LPC1857JET256: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1833JET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1857JBD208: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1857FET256: 1 MB Flash, 136 KB SRAM, Two High-speed USB, Ethernet, LCD, LBGA256 Package
    - LPC1853JET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC18S10FBD144: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 136 KB SRAM; EMC
    - LPC1853JBD208: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC18S10FET100: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 136 KB SRAM; EMC
    - LPC18S50FET180: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 200 KB SRAM; Ethernet, Two HS USB, LCD, EMC
    - LPC18S57JBD208: 32-bit Arm^® Cortex^®-M3 MCU; 1 MB Flash and 136 KB SRAM; Ethernet, Two High-speed USB, LCD, EMC, AES Engine
    - LPC18S50FET256: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 200 KB SRAM; Ethernet, Two HS USB, LCD, EMC
    - LPC18S37JBD144: 32-bit Arm^® Cortex^®-M3 MCU; 1 MB Flash and 136 KB SRAM; Ethernet, Two High-speed USB, EMC, AES Engine
    - LPC1837JET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1853FET256: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1830FBD144: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC18S30FBD144: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 200 KB SRAM; Ethernet, Two HS USB, EMC
    - LPC1810FBD144: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1830FET180: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC18S30FET256: 32-bit Arm^® Cortex^®-M3 Flashless MCU with Security Features; 200 KB SRAM; Ethernet, Two HS USB, EMC
    - LPC1833FET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1837JBD144: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1837FET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC18S37JET100: 32-bit Arm^® Cortex^®-M3 MCU; 1 MB Flash and 136 KB SRAM; Ethernet, Two High-speed USB, EMC, AES Engine
  - Kinetis^® L Series: Ultra-Low Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KL28: Kinetis^® KL28-72/96 MHz, 512KB Flash, USB, Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KL3x: Kinetis^® KL3x-48 MHz, Segment LCD Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KL1x: Kinetis^® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KL4x: Kinetis^® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KL2x: Kinetis^® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KL0x: Kinetis^® KL0x-48 MHz, Entry-Level Ultra-Low Power Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
  - Kinetis^® K4x USB and Segment LCD Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K40_100: Kinetis^® K40-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K40_72: Kinetis^® K40-72 MHz, Mixed-Signal Integration Microcontrollers based on Arm^® Cortex^®-M4 Core
  - i.MX RT Crossover MCUs
    - i.MX-RT1024: i.MX RT1024 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT600: i.MX RT600 Crossover MCU with Arm^® Cortex^®-M33 and DSP Cores
    - i.MX-RT1020: i.MX RT1020 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT1015: i.MX RT1015 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT1160: i.MX RT1160 Crossover MCU Family - High-performance MCU with Arm^® Cortex^®-M7 and Cortex-M4 Cores
    - i.MX-RT1060: i.MX RT1060 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT500: i.MX RT500 Crossover MCU with Arm^® Cortex^®-M33, DSP and GPU Cores
    - i.MX-RT1010: i.MX RT1010 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT1064: i.MX RT1064 Crossover MCU with Arm^® Cortex^®-M7 Core
    - i.MX-RT1170: i.MX RT1170 Crossover MCU Family - First GHz MCU with Arm^® Cortex^®-M7 and Cortex-M4 Cores
  - LPC4000 Series: Mid-range Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Cores
    - LPC4088FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
    - LPC4076FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
    - LPC4088FBD208: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
    - LPC4078FBD100: 32-bit Arm^® Cortex^®-M4 MCU; Up to 512 kB Flash, 96 kB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
    - LPC4088FET208: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
    - LPC4078FBD80: 32-bit Arm^® Cortex^®-M4 MCU; Up to 512 kB Flash, 96 kB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
    - LPC4078FET180: 32-bit Arm^® Cortex^®-M4 MCU; Up to 512 kB Flash, 96 kB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
    - LPC4078FBD208: 32-bit Arm^® Cortex^®-M4 MCU; Up to 512 kB Flash, 96 kB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
    - LPC4078FBD144: 32-bit Arm^® Cortex^®-M4 MCU; Up to 512 kB Flash, 96 kB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
    - LPC4078FET208: 32-bit Arm^® Cortex^®-M4 MCU; Up to 512 kB Flash, 96 kB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
    - LPC4076FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
    - LPC4072FET80: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
    - LPC4074FBD144: LPC4074FBD144
    - LPC4074FBD80: LPC4074FBD80
    - LPC4088FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4 Core
  - LPC1700 Series: Scalable Mainstream Microcontrollers (MCUs) based on Arm^® Cortex^®-M3 Cores
    - LPC1788FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1778FET208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1787FBD208: 512kB Flash, 96kB SRAM, USB, LCD, LQFP208 Package
    - LPC1788FET208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1768FBD100: 512kB Flash, 64kB SRAM, Ethernet, USB, LQFP100 Package
    - LPC1776FET180: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1777FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1774FBD144: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1786FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1768FET100: 512kB Flash, 64kB SRAM, Ethernet, USB, TFBGA100 Package
    - LPC1776FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1774FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1788FBD144: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1769FBD100: 512kB Flash, 64kB SRAM, Ethernet, USB, LQFP100 Package
    - LPC1788FET180: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1778FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1785FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1778FBD144: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1768UK: Scalable Mainstream 32-bit Microcontroller based on Arm^® Cortex^®-M3
    - LPC1778FET180: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M3 Core
    - LPC1767FBD100: 512kB Flash, 64kB SRAM, Ethernet, No CAN, LQFP100 Package
  - Kinetis^® K2x USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K21_120: Kinetis K21-120 MHZ, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm^® Cortex^®-M4
    - K20_72: Kinetis^® K20-72 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K24_120: Kinetis^® K24-120 MHz, Full-Speed USB, 256KB SRAM Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K26_180: Kinetis^® K26-180 MHz, Dual High-Speed & Full-speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K22_100: Kinetis^® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K20_120: Kinetis^® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K20_100: Kinetis^® K20-100 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm^® Cortex^®-M4 Core
    - K21_50: Kinetis^® K21-50 MHz, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm^® Cortex^®-M4 Core
    - K28_150: Kinetis^® K28-150 MHz, 2x USB, Core Voltage Bypass, 2MB Flash, 1MB SRAM MCUs based on Arm^® Cortex^®-M4
    - K22_50: Kinetis^® K22-50 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K22_120: Kinetis^® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K20_50: Kinetis^® K20-50 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm^® Cortex^®-M4 Core
    - K27_150: Kinetis^® K27-150 MHz, 2x USB, 2MB Flash, 1MB SRAM Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
  - LPC4300 Series: High-Performance Microcontrollers (MCUs) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4333JET256: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC43S70FET256: 32-bit Arm^® Cortex^®-M4 + 2 X M0 MCU; 282 kB SRAM; Ethernet; Two HS USBs; 80 Msps 12-bit ADC; Configurable Peripherals, AES Engine
    - LPC4333JBD144: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4350FET180: Dual-core Cortex^®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, LCD, CAN, AES, SPIFI, SGPIO, SCT
    - LPC4327JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4353JBD208: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S50FET256: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 264 kB SRAM; Ethernet; Two HS USBs; LCD
    - LPC4333JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4327JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Two High-speed USB, LCD, EMC
    - LPC4312JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4315JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4350FET256: Dual-core Cortex^®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, LCD, CAN, AES, SPIFI, SGPIO, SCT
    - LPC4367JET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M4/M0
    - LPC4367JBD208: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M4/M0
    - LPC4337JET256: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC43S20FBD144: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 200 kB SRAM; USB
    - LPC4367JET100: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M4/M0
    - LPC4353JET256: 32-bit Arm^® Cortex^®-M4/M0 MCU; up to 1 MB flash and 136 kB SRAM; Ethernet, two High-speed USB, LCD, EMC
    - LPC4330FBD144: Dual-core Cortex^®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
    - LPC4320FBD144: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S50FET180: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 264 kB SRAM; Ethernet; Two HS USBs; LCD
    - LPC4357JBD208: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC4333FET256: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4325JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S37JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; 1 MB Flash and 136 kB SRAM; Ethernet, 2 X USB, EMC, AES Engine
    - LPC4353FET256: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S67JET256: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M4/M0
    - LPC43S30FET256: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 264 kB SRAM; Ethernet; Two HS USBs
    - LPC4337JET100: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC4312JBD144: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4337FET256: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC43S30FBD144: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 264 kB SRAM; Ethernet; Two HS USBs
    - LPC4313JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4322JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Two High-speed USB, LCD, EMC
    - LPC4320FET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4357FET256: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4323JBD144: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S67JBD208: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M4/M0
    - LPC4322JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S20FET180: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 200 kB SRAM; USB
    - LPC4330FET180: Dual-core Cortex^®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
    - LPC4313JBD144: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4315JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC4310FET100: Dual-core Cortex^®-M4/M0, 168 kB SRAM, CAN, AES, SPIFI, SGPIO, SCT
    - LPC43S70FET100: 32-bit Arm^® Cortex^®-M4 + 2 X M0 MCU; 282 kB SRAM; Ethernet; Two HS USBs; 80 Msps 12-bit ADC; Configurable Peripherals, AES Engine
    - LPC4323JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4370FET100: 32-bit Arm^® Cortex^®-M4 + 2 x M0 MCU; 282 kB SRAM; Ethernet; two HS USBs; 80 Msps 12-bit ADC; configurable peripherals
    - LPC43S37JET100: 32-bit Arm^® Cortex^®-M4/M0 MCU; 1 MB Flash and 136 kB SRAM; Ethernet, 2 X USB, EMC, AES Engine
    - LPC43S30FET100: 32-bit Arm^® Cortex^®-M4/M0 Flashless MCU with Security Features; 264 kB SRAM; Ethernet; Two HS USBs
    - LPC4357JET256: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4317JET100: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC43S57JBD208: 32-bit Arm^® Cortex^®-M4/M0 MCU; 1 MB Flash and 136 kB SRAM; Ethernet, 2 X USB, LCD, EMC, AES Engine
    - LPC4310FBD144: High Performance 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M4/M0 Cores
    - LPC4330FET100: Dual-core Cortex^®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
    - LPC4337JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC4370FET256: 32-bit Arm^® Cortex^®-M4 + 2 X M0 MCU; 282 kB SRAM; Ethernet; Two HS USBs; 80 Msps 12-bit ADC; Configurable Peripherals
    - LPC4325JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Two High-speed USB, LCD, EMC
    - LPC4330FET256: Dual-core Cortex^®-M4/M0, 264 kB SRAM, 2 HS USB with on-chip PHY, Ethernet, CAN, AES, SPIFI, SGPIO, SCT
    - LPC4317JBD144: 32-bit Arm^® Cortex^®-M4/M0 MCU; Up to 1 MB Flash and 136 kB SRAM; Ethernet, Two High-speed USB, LCD, EMC
    - LPC43S57JET256: 32-bit Arm^® Cortex^®-M4/M0 MCU; 1 MB Flash and 136 kB SRAM; Ethernet, 2 X USB, LCD, EMC, AES Engine
    - LPC43S67JET100: High Performance 32-bit Microcontroller based on Arm^® Cortex^®-M4/M0
  - Kinetis^® E Series: 5V, Robust Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+/M4 Core
    - KE06: Kinetis^® KE06-48 MHz, Mainstream with CAN Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KE02_40: Kinetis^® KE02-40 MHz, Entry-Level Microcontrollers (MCUs) based on Arm^® Cortex^® -M0+ Core
    - KE04: Kinetis^® KE04-48 MHz, Mainstream Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - KE02: Kinetis^® KE02-20 MHz, Entry-Level Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
  - Kinetis^® K1x Mainstream Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K10_120: Kinetis^® K10-120 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K12_50: Kinetis^® K12-50 MHz, Microcontrollers (MCUs) with Optimized Features based on Arm^® Cortex^®-M4 Core
    - K10_100: Kinetis^® K10-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K11_50: Kinetis^® K11-50 MHz, Anti-Tamper Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K10_50: Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K10_72: Kinetis^® K10-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
  - LPC5500 Series: Arm^® Cortex^®-M33 based Microcontroller Series for Mass Market, Leveraging 40nm Embedded Flash Technology
    - LPC55S6x: High Efficiency Arm^® Cortex^®-M33-Based Microcontroller Family
    - LPC550x: LPC550x/S0x: Baseline Arm^® Cortex^®-M33-Based Microcontroller Family
  - Kinetis^® K6x Ethernet Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K60_120: Kinetis^® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm^® Cortex^®-M4 Core
    - K60_100: Kinetis^® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm^® Cortex^®-M4 Core
    - K63_120: Kinetis^® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K64_120: Kinetis^® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K66_180: Kinetis^® K66-180 MHz, Dual High-Speed & Full-speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
  - LPC800 Series: Low-Cost Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Cores
    - LPC84X: Low-Cost Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Cores
    - LPC8N04: Low-Cost Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
    - LPC82X: Low-Cost Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Cores
    - LPC80X: Low-Cost Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
  - General Purpose MCUs
    - LPC51U68: High-performance, Power-efficient and Cost Sensitive Arm^® Cortex^®-M0+ MCUs
  - K32 L Series: Ultra-Low Power Microcontrollers (MCUs) Optimized for Low-Leakage Applications
    - K32-L3: NXP’s Energy Efficient Cortex-M4 MCU with Cortex-M0+ and Advanced Security
    - K32-L2: Ultra-Low-Power, Highly Integrated MCU
  - Kinetis^® K3x Segment LCD Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K30_72: Kinetis K30-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K30_100: Kinetis^® K30-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
  - Kinetis^® K5x Measurement Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K50_100: Kinetis^® K50-100 MHz, USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K51_100: Kinetis^® K51-100 MHz, Segment LCD, USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K53_100: Kinetis^® K53-100 MHz, USB, Segment LCD, Ethernet Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K50_72: Kinetis^® K50-72 MHz, USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K51_72: Kinetis^® K51-72 MHz, Segment LCD, USB Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
  - KEA: Ultra-Reliable KEA Automotive Microcontrollers (MCUs) based on ARM® Cortex®-M0+ Core
    - KEA: Ultra-Reliable KEA Automotive Microcontrollers (MCUs) based on Arm^® Cortex^®-M0+ Core
  - Kinetis^® K8x Secure Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K82_150: Kinetis^® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core
    - K80_150: Kinetis^® K80-150 MHz Advanced Security and QuadSPI Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core
  - Kinetis^® K0x Entry-level Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K02_100: Kinetis^® K02-100 MHz, Microcontrollers (MCUs) with Optimized Features based on Arm^® Cortex^®-M4 Core
  - Kinetis^® K7x Graphic LCD Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core
    - K70_120: Kinetis^® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm^® Cortex^®-M4 Core
  - LPC54000 Series: Power-Efficient Microcontrollers (MCUs) Based on Arm^® Cortex^®-M4 Core
    - LPC546XX: Power-Efficient Microcontrollers (MCUs) With Advanced Peripherals Based on Arm^® Cortex^®-M4 Core
    - LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm^® Cortex^®-M4 Core
Wireless Connectivity
- Bluetooth Low Energy
  - Bluetooth^® Smart/Bluetooth Low Energy
    - QN9080: QN908x: Ultra-Low-Power Bluetooth Low Energy System on Chip Solution
    - KW39-38-37: KW39/38/37: 32-Bit Bluetooth 5.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm^® Cortex^®-M0+ Core
    - KW36-35: KW36/35/34: Arm^® Cortex^®-M0+|Kinetis^® KW36/35/34 Bluetooth Low Energy 32-bit MCUs | NXP
- Zigbee
  - JN5189_88_T: JN5189/88 (T): High Performance and Ultra-low Power MCUs for Zigbee^® and Thread with Built-in NFC Option
  - KW21Z: Kinetis^® KW21Z-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm^® Cortex^®-M0+ Core
- Wireless Microcontrollers
  - Multiprotocol MCUs
    - K32W061_41: K32W061/41: High Performance, Secure and Ultra-Low-Power MCU for Zigbee^®,Thread^™, and Bluetooth^® LE 5.0 with Built-in NFC Option
    - KW41Z: Kinetis^® KW41Z-2.4 GHz Dual Mode: Bluetooth^® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm^® Cortex^®-M0+ Core

System Requirements

SDK v2.10 requires IDE V11.4.x or later
SDK v2.9 requires IDE v11.3.x or later
SDK v2.8 requires IDE v11.2.x or later
SDK v2.7 requires IDE v11.1.x or later
SDK v2.6 requires IDE v11.0.x or later
SDK v2.5 requires IDE v10.3.x or later
SDK v2.4 requires IDE v10.2.x or later
SDK v2.3 requires IDE v10.1.x or later
SDK v2.2 requires IDE v10.0.x or later

MCUXpresso Integrated Development Environment (IDE)

Overview

Features

Features

MCUXpresso IDE Block Diagram

MCUXpresso IDE is an Eclipse-based IDE for simple debug, edit and compile

MCU Minutes | MCUXpresso Software and Tools Overview

MCUXpresso IDE Block Diagram

MCUXpresso IDE is an Eclipse-based IDE for simple debug, edit and compile

MCU Minutes | MCUXpresso Software and Tools Overview

Supported Devices

System Requirements

MCUXpresso Software and Tools

Other IDEs for Kinetis, i.MX RT, and LPC MCUs
