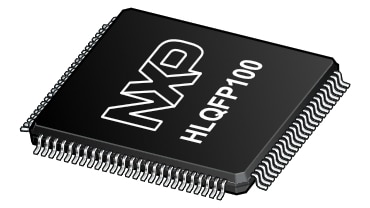

SOT1570-5: HLQFP100

Overview

HLQFP100, plastic, thermal enhanced low profile quad flat package; 100 terminals; 0.50 mm pitch; 14 mm x 14 mm x 1.4 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT1570-5	HLQFP100	surface mount	quad	HLQFP	14 x 14 x 1.4		plastic

Manufacture Code	Reference Codes	Issue Date
98ASA01602D		2021-12-14

Products

Part	Description	Quick access
LPC55S36JBD100	Arm Cortex-M33-based Microcontroller with 8KB Cache	View parametrics
LPC5534JBD100	Arm Cortex-M33-based Microcontroller with 8KB Cache	View parametrics
LPC5536JBD100	Arm Cortex-M33-based Microcontroller with 8KB Cache	View parametrics
