SOT1688-3(DD): HLQFN16

Overview

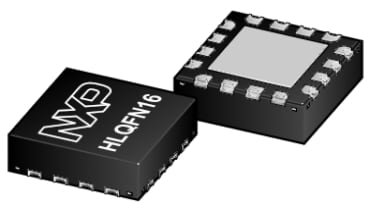

HLQFN16; plastic, thermal enhanced low profile quad flat non-leaded package, dimple wettable flank; 16 terminals; 0.8 mm pitch; 4 mm x 4 mm x 1.45 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT1688-3(DD)	HLQFN16	surface mount	quad	HLQFN	4 x 4 x 1.45	16	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA01725D		2025-03-07

Related Documents

Name/Description	Type	Modified Date
SOT1688-3-DD  PDF	Package Information	2025-03-10

Products

Part	Description	Quick access
NXLS96630AES	PSI5 Y Single-Axis High-g Inertial Sensor	View parametrics
NXLS96322AES	PSI5 XY Dual-Axis Medium-g Inertial Sensor	View parametrics
NXLS95630AES	Y Single-Axis High-g Inertial Sensor	View parametrics
