SOT2137-1: VFBGA112

Overview

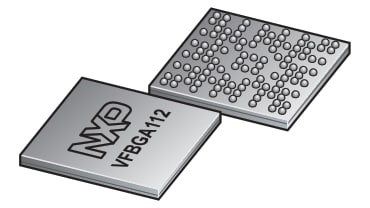

VFBGA112; very thin fine-pitch ball grid array, 112 terminals, 0.5 mm pitch, 7 mm x 7 mm x 0.86 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT2137-1	VFBGA112	surface mount		VFBGA	7 x 7 x 0.86	112	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA02081D		2023-04-07

Products

Part	Description	Quick access
MCXA155VPJ		View parametrics
MCXA144VPJ	MCX A14 Essential MCUs with Arm® Cortex®-M33, Low Power and Intelligent Peripherals, 112 BGA	View parametrics
MCXA154VPJ	MCX A15 Essential MCUs with Arm® Cortex®-M33, Low Power and Intelligent Peripherals, 112 BGA	View parametrics
MCXA156VPJ	MCX A15 Essential MCUs with Arm® Cortex®-M33, Low Power and Intelligent Peripherals, 112 BGA	View parametrics
MCXA146VPJ	MCX A14 Essential MCUs with Arm® Cortex®-M33, Low Power and Intelligent Peripherals, 112 BGA	View parametrics
MCXA145VPJ	MCX A14 Essential MCUs with Arm® Cortex®-M33, Low Power and Intelligent Peripherals, 112 BGA	View parametrics
