SOT2172-1: VFBGA184

Overview

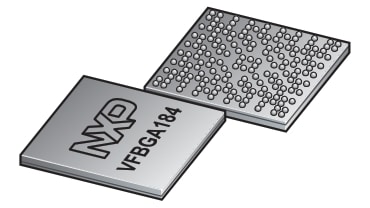

VFBGA184, very thin fine-pitch ball grid array package, 184 terminals, 0.5 mm pitch, 9 mm x 9 mm x 0.86 mm body
Package Version Package Name Mount Terminal Position Package Style Dimensions Termination Count Material
 SOT2172-1 VFBGA184 surface mount bottom VFBGA 9 x 9 x 0.86 184 plastic
Manufacture Code Reference Codes Issue Date
98ASA01888D 2021-12-21
Part Description Quick access
MCXN235VDFT MCX N23 Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security, 184 BGA View parametrics
MCXN236VDFT MCX N23 Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security, 184 BGA View parametrics
MCXN547VDFT MCX N54 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN247VDFT MCX N24 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN527VDFT MCX N52 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN526VDFT MCX N52 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN546VDFT MCX N54 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN537VDFT MCX N53 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN947VDFT MCX N94 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN536VDFT MCX N53 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
MCXN946VDFT MCX N94 with Highly Integrated Low-Power Dual Core Arm® Cortex®-M33 MCUs with On-Chip Accelerators and Advanced Security View parametrics
