SOT2223-1: HVQFN81

Overview

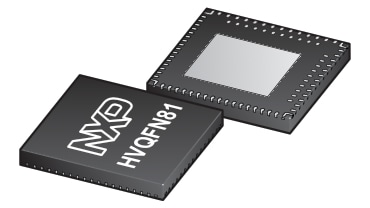

HVQFN81, plastic thermal enhanced very thin quad flat wettable flanks package; no leads; 81 terminals, 0.4 mm pitch, 8 mm x 7.5 mm x 0.85 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT2223-1	HVQFN81	surface mount	quad	HVQFN	8 x 7.5 x 0.85	81	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA02101D		2024-12-10

Products

Part	Description	Quick access
IW610CHN		View parametrics
IW610BHN		View parametrics
IW610GHN		View parametrics
IW610FHN		View parametrics
