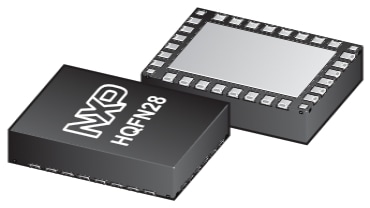

SOT2228-1(D): HQFN28

Overview

HQFN28, thermal enhanced quad flat package, no leads, 0.1 dimple wettable flank, 28 terminals, 0.8 mm pitch, 8 mm x 6 mm x 1.9 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT2228-1(D)	HQFN28	surface mount	quad	HQFN	8 x 6 x 1.9	28	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA02130D		2023-12-15

Related Documents

Name/Description	Type	Modified Date
SOT2228-1(D)  PDF	Package Information	2024-01-30
