SOT619-28: HVQFN48

Overview

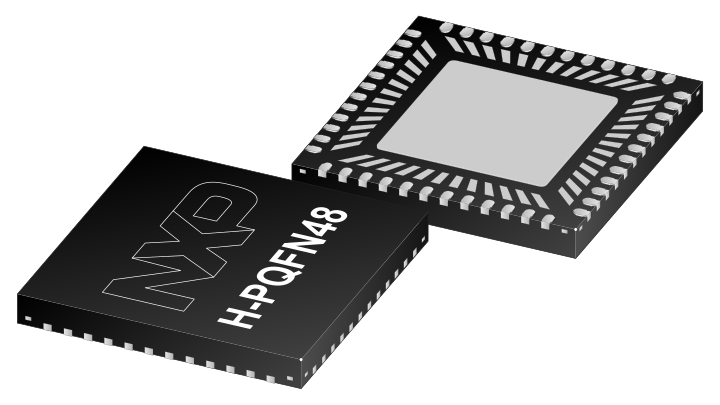

HVQFN48, thermal enhanced very thin quad flat package; no leads; 48 terminals; 0.5 mm pitch, 7 mm x 7 mm x 0.85 mm body
Package Version Package Name Mount Terminal Position Package Style Dimensions Termination Count Material
 SOT619-28 HVQFN48 surface mount quad HVQFN 7 x 7 x 0.85 48 plastic
Manufacture Code Reference Codes Issue Date
98ASA01637D 2020-07-03
Part Description Quick access
MCXA146VFT View parametrics
MCXA145VFT View parametrics
LPC5502JHI48 View parametrics
MCXA153VFT View parametrics
MCXA152VFT View parametrics
MCXA155VFT View parametrics
MCXA154VFT View parametrics
MCXA156VFT View parametrics
MCXA132VFT View parametrics
MCXA133VFT View parametrics
LPC55S04JHI48 View parametrics
LPC5506JHI48 View parametrics
MCXA142VFT View parametrics
MCXA143VFT View parametrics
MCXA144VFT View parametrics
LPC5504JHI48 View parametrics
LPC55S06JHI48 View parametrics
