2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.4 + 802.15.4 Tri-radio Solution

Block Diagram

Choose a diagram:

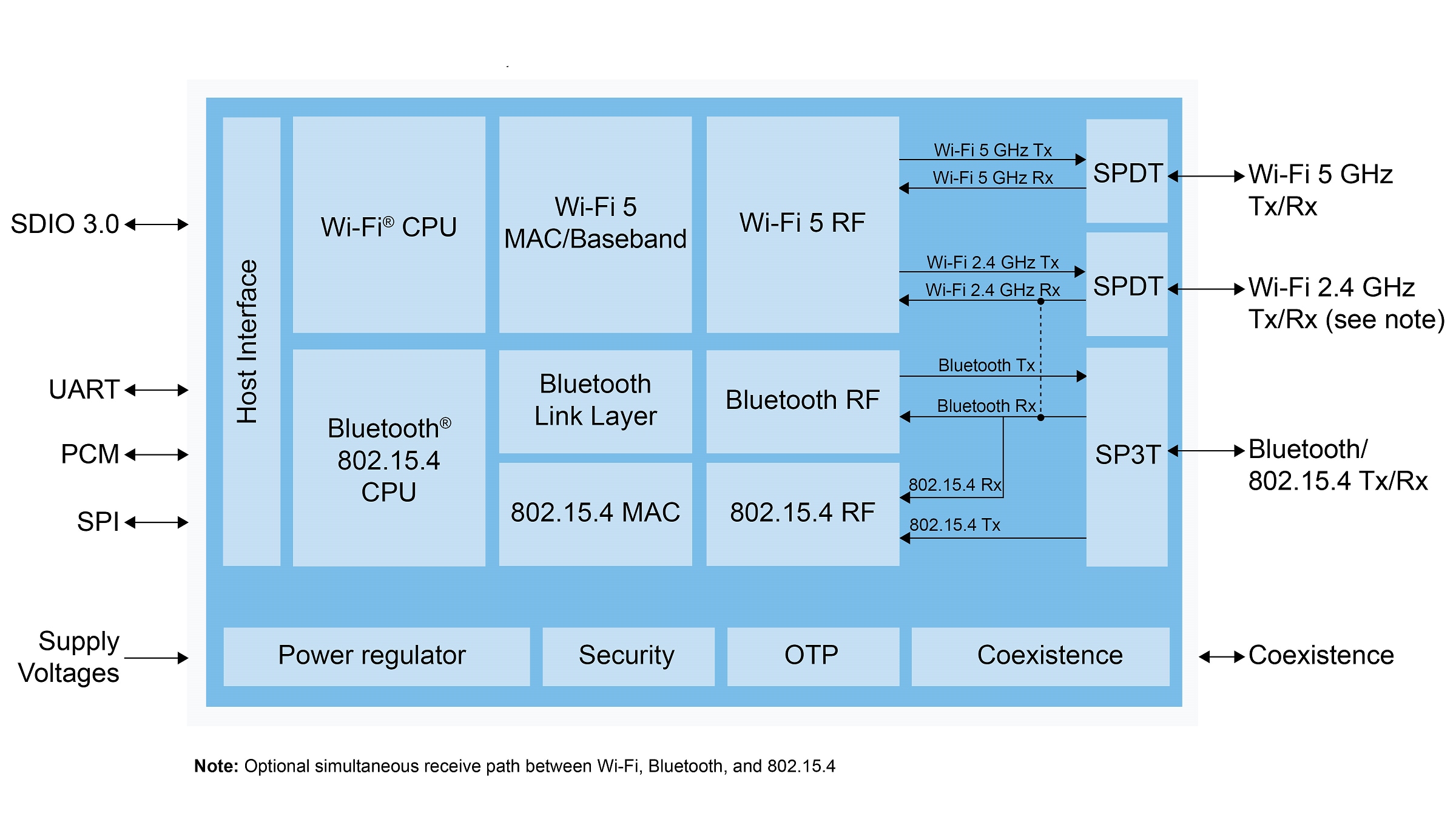

IW512 internal block diagram

IW512 internal block diagram

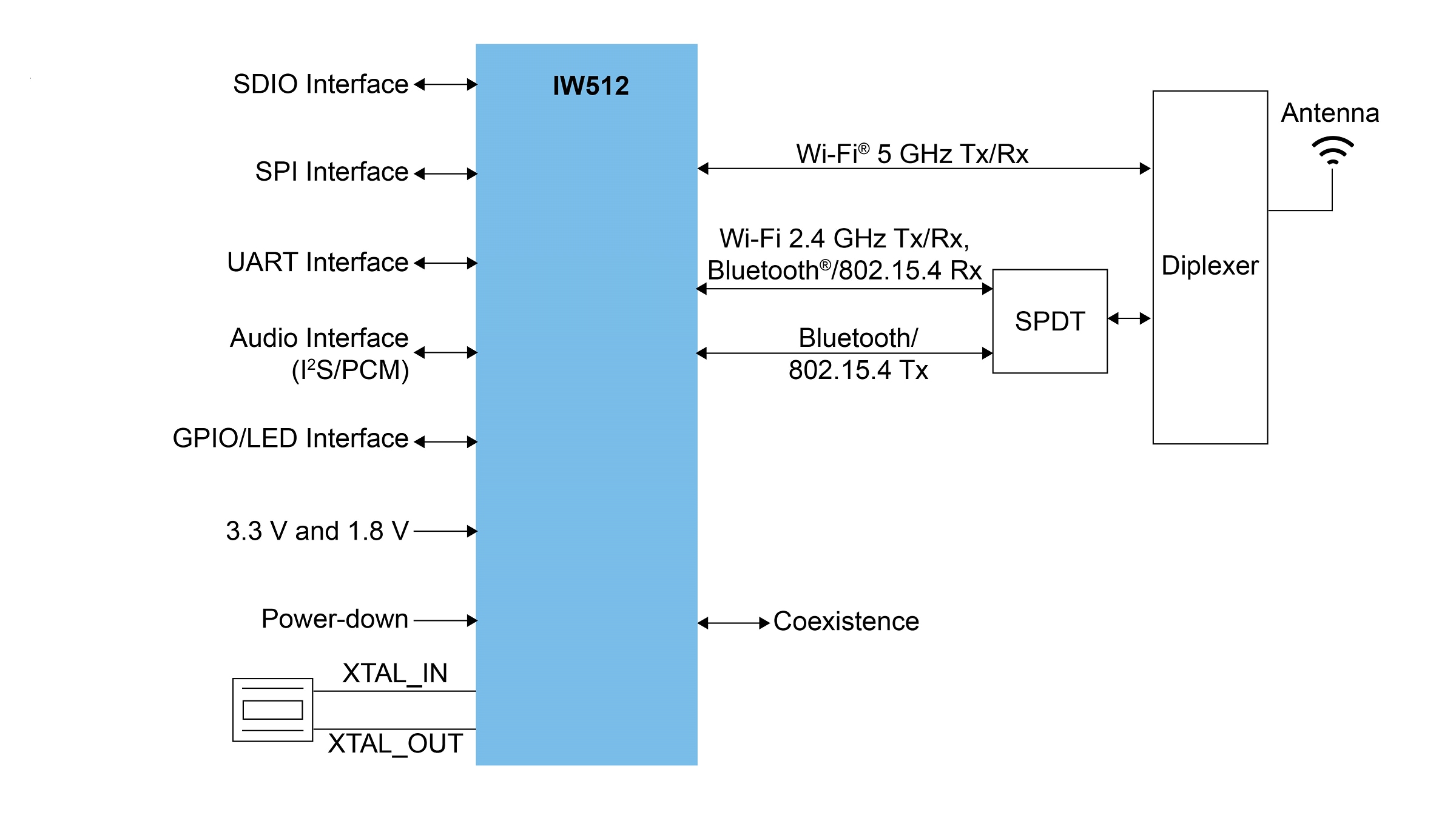

IW512 application diagram - Single antenna

IW512 application diagram - Single antenna

IW512 application diagram - Dual antenna

IW512 application diagram - Dual antenna

Features

Wi-Fi Key Features

  • IEEE 802.11a/b/g/n/ac 1x1 SISO 2.4 GHz and 5 GHz, up to 80 MHz channel bandwidth
  • 802.11az accurate ranging
  • Integrated PA, LNA and T/R switches
  • WPA3 security with hardware encryption engines
  • SDIO 3.0 host interface

Bluetooth Key Features

  • Supports Bluetooth 5.2 features
  • Bluetooth 5.4 certified
  • Integrated high power PA up to +20 dBm transmit power
  • Full featured Bluetooth baseband
  • Bluetooth LE 2 Mbit/s, Long Range and Advertising Extensions
  • LE Audio with Isochronous channels
  • AES hardware encryption
  • UART host interface

802.15.4 Key Features

  • IEEE 802.15.4-2015 compliant supporting Thread in 2.4 GHz band
  • Integrated high power PA up to + 20 dBm transmit power
  • Shared transmitter and antenna pin with Bluetooth
  • Simultaneous receive with Bluetooth
  • SPI host interface

General Features

  • Dedicated, independent CPUs and memories for Wi-Fi and Bluetooth
  • Efficient power management system supporting deep-sleep low-power mode
  • Single and dual antenna configurations
