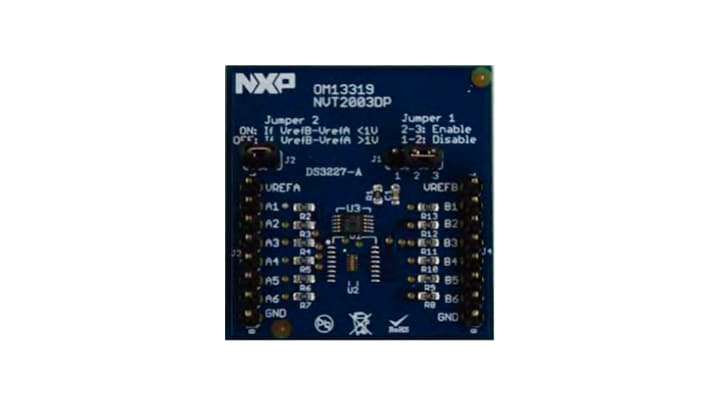

NVT2003DP Demo board, three channel bi-directional voltage level translator

OM13319

Roll over image to zoom in

The NVT2003DP (OM13319), NVT2004TL (OM13316) and NVT2006PW (OM13323) demo boards are designed to evaluate the NXP® 3-channel, 4-channel and 6-channel bi-directional voltage level translators. The demo boards interface between device I/Os operating at different voltage levels. Since the NVT2003DP, NVT2004TL, and NVT2006PW devices are passive devices, pull-up resistors may be needed depending on the I/O interface type (totem pole or open-drain), a difference in translation voltage, and the translation direction (high to low-voltage, low to high-voltage, or bi-directional). The NVT2003DP, NVT2004TL and NVT2006PW devices allow translations between any voltages from 1.0 V to 5.5 V.

Product Details

Select a section:

Supported Devices

Products

No Longer Manufactured

  • NVT2004TL: Bidirectional voltage-level translator for open-drain and push-pull applications

Peripherals and Logic

Voltage Level Translators

  • NVT2003_06: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications

Features

  • Simple to evaluate each NVT device without additional components

Connectivity

  • All Bn I/O pins on high-voltage right-hand side always have 10 kΩ pull up resistors to VREFB
  • All An I/O pins on low-voltage left-hand side with jumper option have 10 kΩ pull up resistors to VREFA
  • Jumper J1 (3 pins) to control NVT device enable (pin 2-3 on) or disable (pin 1-2 on)
  • Easy to apply high-voltage VREFB/GND and Bn signals on right-hand side header
  • Easy to apply low voltage VREFA/GND and An signals on left-hand side header

Buy Options

  • OM13319

  • NVT2003DP Demo board, three channel bi-directional voltage level translator.

  • $28.05 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
