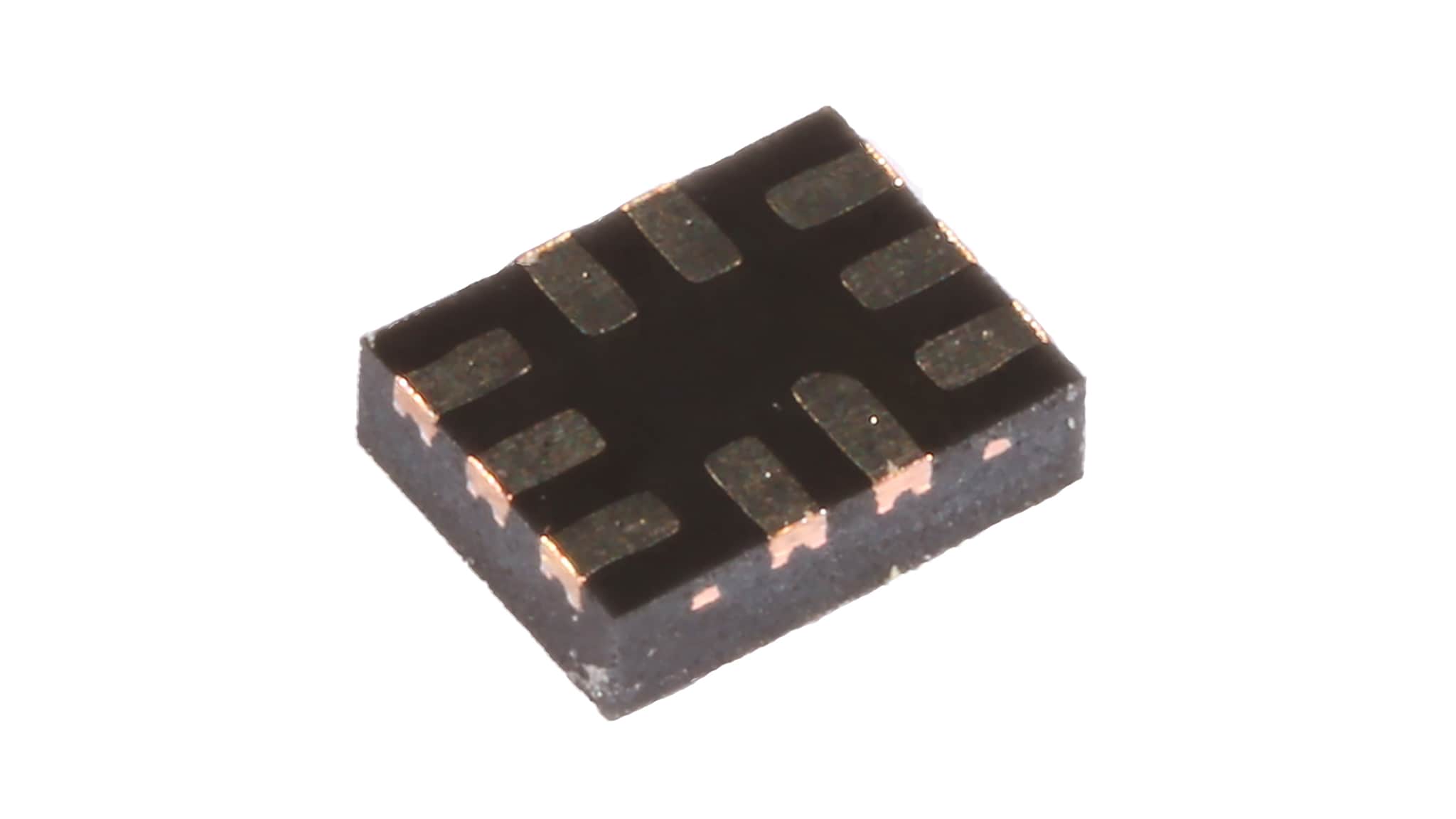

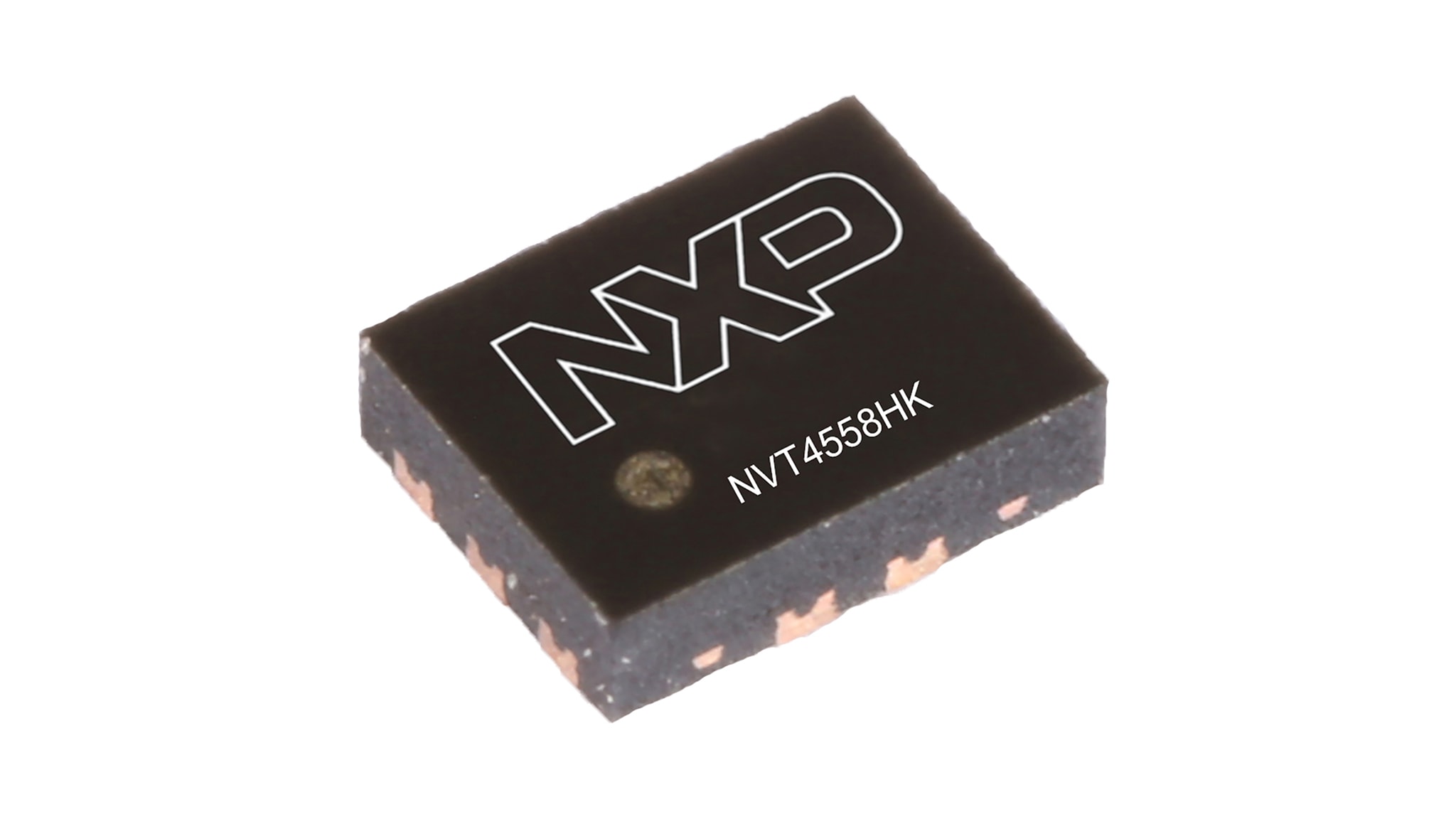

SIM Card Interface Level Translator with EMI Filter and ESD Protection

  • Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

Product Details

Select a section:

Block Diagram

SIM Card Interface Level Translator

NVT4558HK Block Diagram

Features

Low Voltage Operation

  • 1.2 V to 1.8 V translation from the processor side to 1.8 V to 3.3 V on the SIM card side

Robust Features

  • Integrated 8 kV ESD protection according to IEC 61000-4-2, level 4 on VCCB or any of the card side pins
  • Integrated EMI filters suppress higher harmonics of digital I/Os
  • Level shifting buffers keep ESD stress away from the host
