12 A Core Supply Regulator with AVP and Watchdog
PF5300 Receive alerts
- Preproduction
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.
The PF53 integrates a high performance 12 A buck converter to power high-end automotive processors. With adaptive voltage positioning and a high-bandwidth loop, it offers excellent transient regulation to minimize capacitor requirement.
Built-in functional safety features(up to ASIL D) help with robust product design and fast time to market.
For additional information and sample availability, contact your local Sales Office.
Product Details
Features
Key Features
- High-efficiency DC-DC converter
- Programmable Adaptive Voltage Positioning (AVP)
- High accuracy (+/-1%)
- 1.5 uA Off Quiescent Current

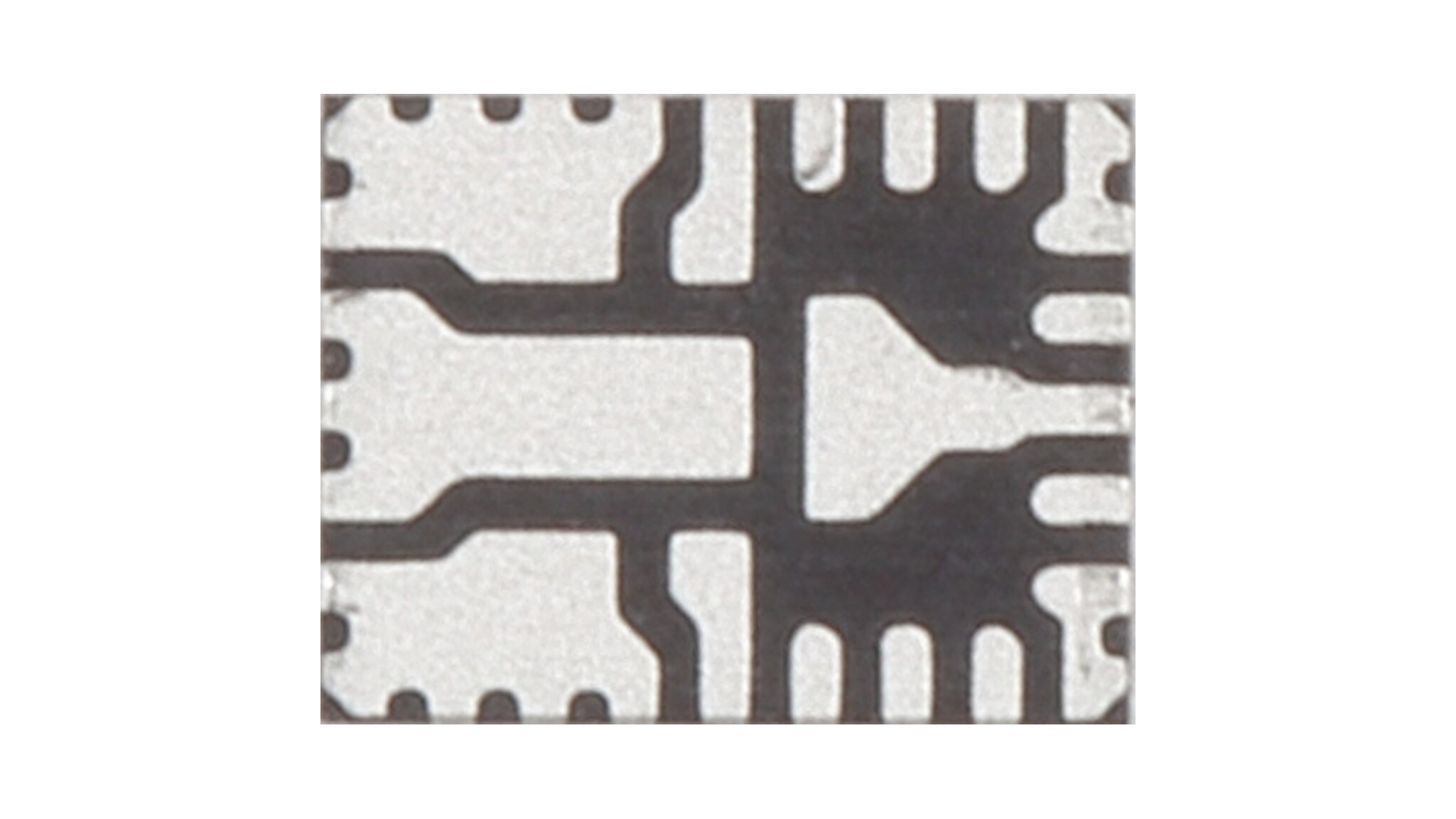

- 24-pin 3.5 x 4.5 FC-QFN package
System Features
- OTP (One-time programmable) memory for flexible device configuration
- High speed I2C interface (3.4 MHz)
- PGOOD monitoring circuits
- External clock synchronization
- Frequency spread spectrum
Monitoring Circuits to Fit ASIL D Safety Level
- Independent circuits to fit ASIL D safety level
- Voltage monitoring with programmable fault reaction
- Advanced thermal monitoring and protection
- Programmable internal watchdog timer
- I2C CRC and write protection mechanism
- Analog built-in self-test (ABIST)
Programmability
- Supplies, sequencing and specific functions can be programmed by one time programmable (OTP) memory
- During development phase, customized OTP part can be programmed using the evaluation board
- Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
- Custom OTP can be created using the GUI tool
Product Longevity Program
- This product is included in the NXP product longevity program ensuring a stable supply of products for your embedded designs. Automotive target market derivatives are included in the 15-year program.
