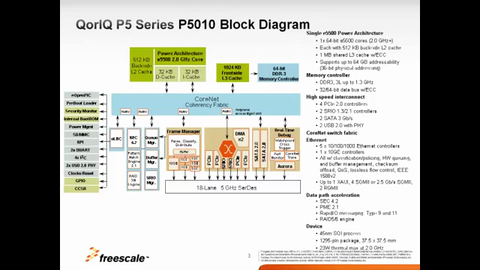

P5020: QorIQ® P5020 and P5010 64-bit Dual- and Single-Core Communications Processors
Overview
Features
Features
Core Complex
- Single or dual 64-bit e5500 cores offered at 2.0 GHz
- Three level cache-hierarchy: 32 KB I/D L1; 512 KB private L2 per core; 2 MB shared L3
- Up to 2.0 GHz with 64-bit ISA support (Power Architecture v2.06-compliant)
- Three levels of instruction: user, supervisor, hypervisor
- Hybrid 32-bit mode to support legacy software and transition to 64-bit architecture
- 2.0 MB configures as dual 1 MB platform cache
Networking Elements
- SerDes
- 18 lanes at up to 5 Gbps
- Supports SGMII, Serial RapidIO®, XAUI, PCI Express® (PCIe) rev1.1/2.0, SATA
- Ethernet interfaces
- 10 Gbps Ethernet MAC
- Five 1 Gbps Ethernet MACs
Accelerators and memory control
- Two 64-bit DDR3/3L SDRAM memory controllers with ECC and interleaving support
- Up to 1300MT/s
- Frame manager for packet handling
- Queue manager for policing, scheduling and workload distribution
- Security block for crypto algorithm acceleration
- RAID5/6 for parity calculations in storage applications
- RapidIO message manager for type 9 and 11 messaging
- Pattern matching engine for regular expression searches
Basic Peripherals and Interconnect
- Up to four PCIe 2.0/3.0 controllers
- Two serial ATA (SATA 2.0) controllers
- Two USB 2.0 controllers with integrated PHY
- Enhanced secure digital host controller (SD/MMC/eMMC)
- Two I²C controllers
- Two DUARTs
Additional Features
- Hardware hypervisor for safe partitioning of operating systems between cores
- Trusted boot capability to ensure only the correct code is booted and that code is not reverse-engineered
- This product is included in NXP®.#8217;s product longevity program, with assured supply for a minimum of 10 years after launch
Development Boards
Development Boards

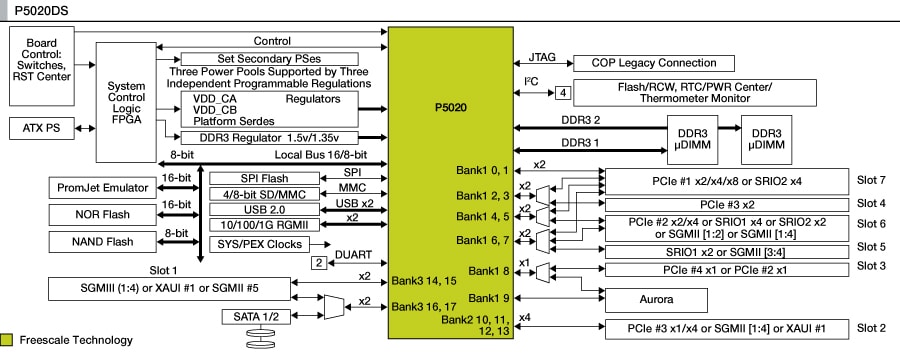

P5020DS:
P5020 QorIQ® Development SystemComparison Table
Comparison Table
| P5020 | P5010 | |
|---|---|---|
| Cores | 2 | 1 |
| Core Frequency | 1.6 to 2.0 GHz | 1.6 to 2.0 GHz |
| L2 Cache | 512 KB | 512 KB |
| L3/Platform Cache | 2 MB | 1 MB |
| DDR3 | 2x 64-bit | 1x 64-bit |
| GbE | 5x 1 GbE 1x 10 GbE | 5x 1 GbE 1x 10 GbE |
| SERDES | 18 Lanes | 18 Lanes |
| Security | Trust | Trust |
