LPC54018 IoT Module for the LPC540xx family of MCUs

OM40007

Roll over image to zoom in

This board is no longer in production. The recommended replacements for this board are the LPC54S018-EVK or LPC54S018M-EVK.

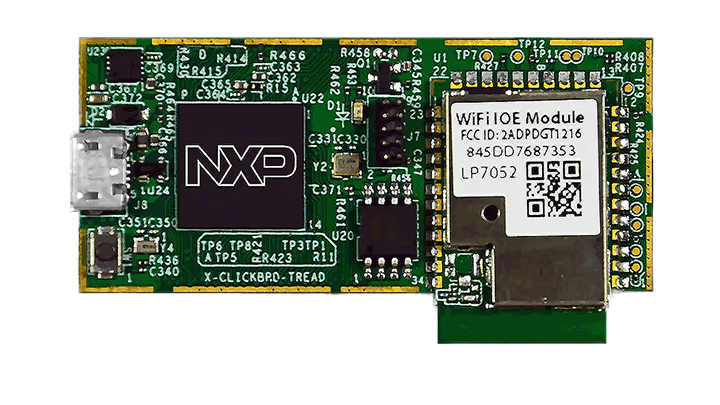

The LPC54018 IoT module, developed by NXP in partnership with Embedded Artists, is self-contained, high performance, IEEE802.11 enabled microcontroller module for the development of products based on the LPC540xx MCU family.

The LPC54018 IoT module can be used standalone or plugged into a motherboard/baseboard for rapid product development and prototyping. The IoT module may be mounted on to a baseboard (part number OM40006), which provides several onboard peripherals, including SDRAM, LCD with touchscreen, audio codec, digital microphone, Ethernet PHY, micro SD card slot and Arduino® UNO expansion connectors. The baseboard also includes an onboard debug probe.

Developers can choose to use debug probes from partners SEGGER or P&E Micro, or the LPC-Link2 debug probe from Embedded Artists and NXP (order code OM13054).

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC54000 Arm Cortex-M4

  • LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • LPC54018 Power-Efficient Microcontroller (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core, running at 180 MHz

Memory

  • 128 Mb Macronix serial NOR Flash

Connectivity

  • High-speed device USB port
  • Dual expansion connectors provide access to wide range of peripherals and memory expansion
      • LCD Interface
      • External memory interface, supporting SDRAM, SRAM, and parallel flash
      • Up to 10 Flexcomm serial ports, configurable as UART, SPI, I2C, I2S (2 ports), or GPIO
      • Dual CAN/CAN-FD
      • SDIO
      • 10//100 Ethernet
      • Full speed USB host/device port
      • DAC
      • ADC
      • Smart card

Debug

  • External debug probe connector

Wireless

  • Longsys GT1216 WiFi module based on Qualcomm QCA4004

Support

  • Fully supported by MCUXpresso Eclipse-based IDE and GNU C/C++ toolchain
  • Reset switch
  • CE and FCC Certified

Buy Options

OM40007-Image

Click to expand

  • OM40007

  • LPC54018 based IoT module powered by AWS.

    • 1x LPC54018 IoT Module

    Documentation

    Quick reference to our documentation types.

    Filters

    2 documents

    Design Resources

    Select a section:

    Design Files

    Filters

    1 design file

    • Printed Circuit Boards and Schematics

      Design database for LPC54018 IoT Module (OM40007)

      ZIPRev ANov 28, 2017 16:53:003.2 MBOM40007-PCB
      Download

    Software

    Filters

    2 software files

    • Code Snippets

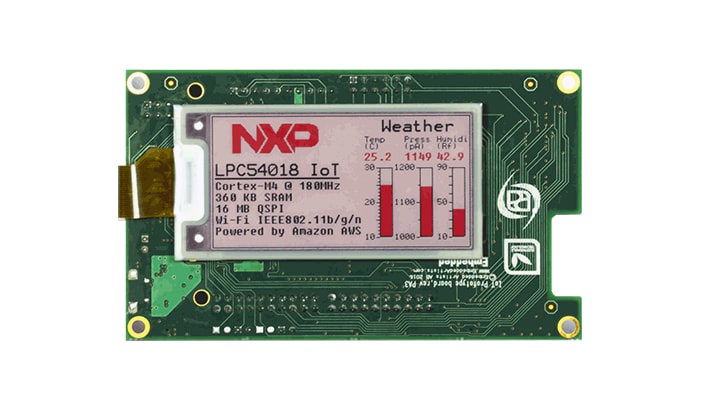

      MCUXpresso Projects for IoT Mini Prototype Board (OM4008) with LPC54018 IoT (OM4007)

      EXERev 1Jun 14, 2018 15:08:001 KBMCUXPRESSO-IOT-MINI-PROTO-BOARD
      Download
    • Operating Systems

      FreeRTOS

      EXTERNALRev 1.0Nov 30, 2017 11:02:001 KBFREERTOS
      Download
