AzureWave Wi-Fi Evaluation Kit: AW-NM191-uSD

AW-NM191NF-uSD

Roll over image to zoom in

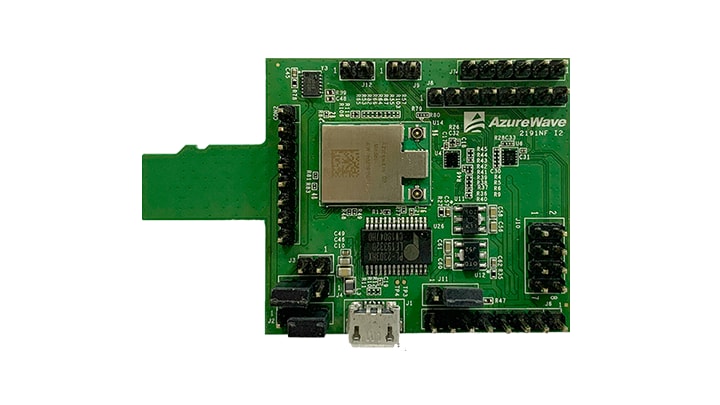

Connecting to NXP's i.MX RT and i.MX 6 series, the AzureWave AW-NM191-uSD represents a uSD-1216 adapter board for the 88W8801, NXP's 2.4 GHz Single-Band 1x1 Wi-Fi 4 (802.11n) solution. Two antennas support communications diversity with 1 (transmit) x 1 (receive), while the host interface supports SDIO.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
  • i.MX-RT1064: i.MX RT1064 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT1060: i.MX RT1060 Crossover MCU with Arm® Cortex®-M7 Core

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8801: 2.4 GHz Single-Band 1x1 Wi-Fi® 4 (802.11n) Solution

Features

Wireless Standard

  • IEEE 802.11b/g/n 1x1

Interface

  • SDIO

Antenna No.

  • 2 (diversity)

Characteristics

  • Size: 62.7 mm x 40.4 mm
  • TX Power: 13 ±1.5 dBm (HT20 MCS7)
  • RX Sensitivity: -67 dBm (HT20 MCS7)
  • Operating Temperature: 0 ~ 70℃

Software Support

  • Linux
  • RTOS

Buy Options

Click to expand

  • AW-NM191NF-uSD

  • Azurewave AW-M191-uSD evaluation board enables evaluation and development of the AW-NM191NF 802.11b/g/n 2.4GHz M.2 1216 module based on NXP's 88W8801 WiFi solution.

  • Kit Contains:

    • AW-NM191-uSD (with AW-NM191NF module on board)
    • 75mm, 20 contacts, 0.5mm pitch FFC Cable
    • PIFA Antenna
