Murata NXP 88W8987 Wi-Fi® 5 (802.11ac) + Bluetooth® chipset-based module: Type 1ZM

MURATA-TYPE-1ZM

Roll over image to zoom in

Type 1ZM is a small and very high performance module based on NXP 88W8987 combo chipset which supports Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.1 BR/EDR/LE up to 433Mbps PHY data rate on Wi-Fi and 3Mbps PHY data rate on Bluetooth. The 88W8987 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth collaboration is optimized for maximum performance.

Product Details

Select a section:

Block Diagram

Murata Type 1ZM Block Diagram

Murata Type 1ZM Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth®

  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170 First GHz Crossover MCU with Arm® Cortex®-M7 and Cortex-M4 Cores
  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT500: i.MX RT500 Crossover MCU with Arm® Cortex®-M33, DSP and GPU Cores
  • i.MX-RT1060: i.MX RT1060 Crossover MCU with Arm® Cortex®-M7 Core

i.MX 8 Processors

  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7
  • i.MX8M: i.MX 8M Family - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video
  • i.MX8X: i.MX 8X Family – Arm® Cortex®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR

i.MX 6 Processors

  • i.MX6DL: i.MX 6DualLite Processors – Dual-Core, 3D Graphics, HD Video, Arm® Cortex®-A9 Core

Features

Wireless Standard

  • 802.11 a/b/g/n/ac 1x1 433Mbps

Interface

  • UART, SDIO

Characteristics

  • 2.4GHz & 5 GHz Wi-Fi+Bluetooth Module
  • Network Topology: uAP and STA dual mode
  • Chipset: NXP (88W8987)
  • Processor: No
  • FCC/IC ""Reference"" Certified
  • Modulation: DSSS / CCK / OFDM

Software Support

  • NXP i.MX Linux

Buy

Buy

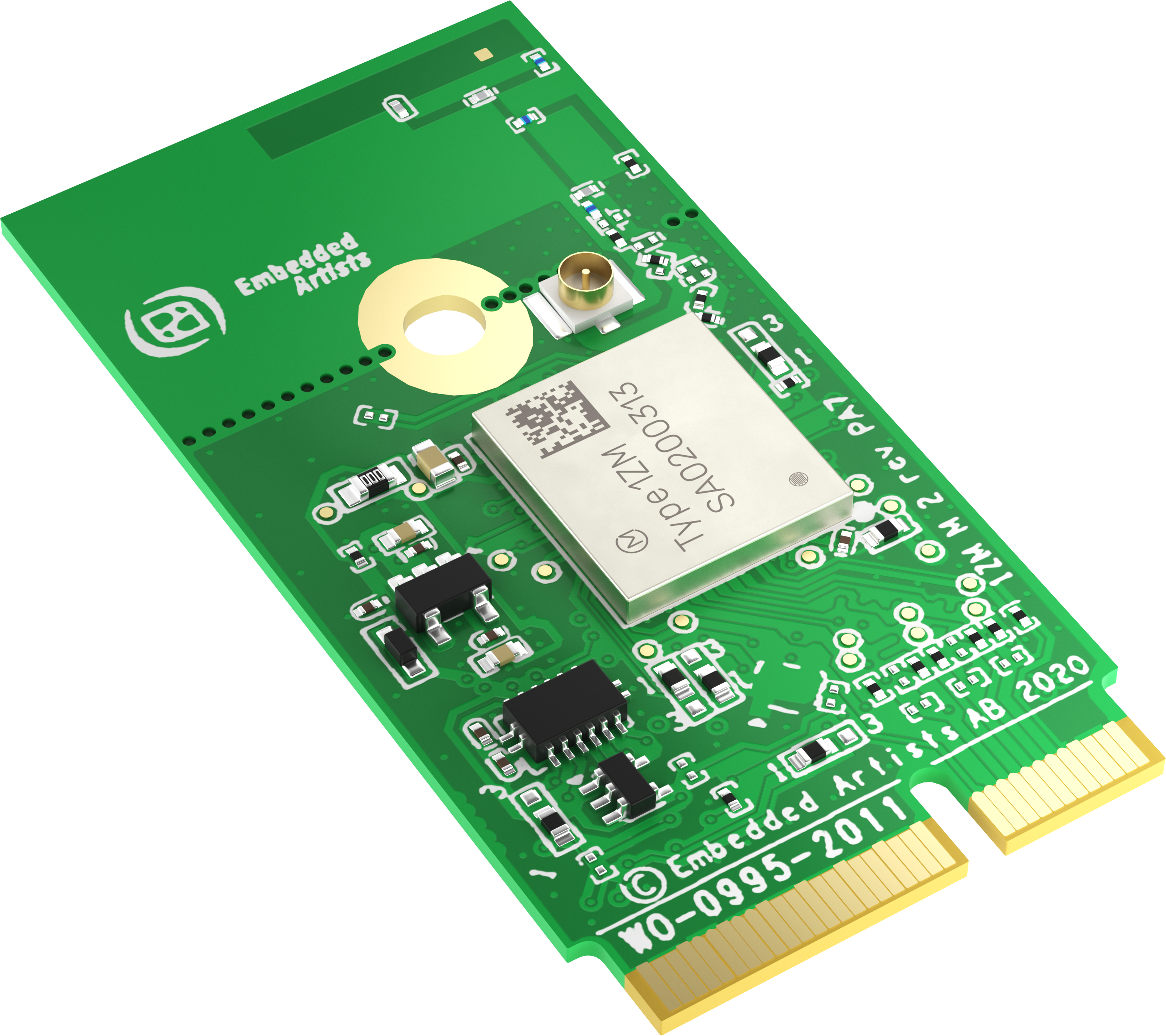

  • 1ZM M.2 module Active

  • The 1ZM M.2 module, co-developed by Embedded Artists and Murata, is designed for evaluation, integration and ease-of-use.
    • 802.11 a/b/g/n/ac and Bluetooth/Bluetooth Low Energy 5.1
    • SDIO 3.0 interface, SDR104@208MHz
    • Chipset: NXP 88W8987
1ZM M.2 module - Image
