u-blox Wi-Fi® Evaluation Kits: EVK-LILY-W131 & EVK-LILY-W132

EVK-LILY-W13x

Roll over image to zoom in

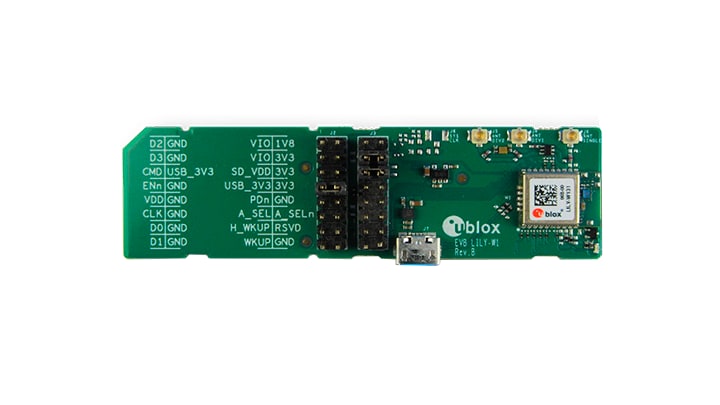

Based on 88W8801, NXP's 2.4 GHz Single-Band 1x1 Wi-Fi 4 (802.11n) solution, this evaluation board comes with a SDIO card connector and a micro USB connector, selectable voltage level for power supply and GPIOs, as well as two antenna options. The LILY-W132 provides an integrated antenna, while the LILY-W131 evaluation board connects to an external antenna via U.FL.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
  • i.MX-RT1064: i.MX RT1064 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT1060: i.MX RT1060 Crossover MCU with Arm® Cortex®-M7 Core

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8801: 2.4 GHz Single-Band 1x1 Wi-Fi® 4 (802.11n) Solution

Features

Wi-Fi connectivity

  • IEEE 802.11 b/g/n
  • Based on NXP 88W8801

Interfaces

  • SDIO via SDIO card connector
  • USB via micro USB connector

LILY-W132

  • Antenna and LTE filter integrated on module
  • U.FL connector for external antenna (EVK-LILY-W131 only)
  • Antenna switch for receive diversity (EVK-LILY-W131 only)
  • External antenna included (EVK-LILY-W131 only)

LILY-W131

  • U.FL connector for external antenna
  • Antenna switch for receive diversity

Buy Options

Click to expand

  • EVK-LILY-W131

  • Kit for evaluation of LILY-W131 module with antenna pin (external antenna).

    • Evaluation board with LILY-W131 module
    • RPSMA antenna
    • U.FL to RPSMA antenna cable

Click to expand

  • EVK-LILY-W132

  • Kit for evaluation of LILY-W132 module with integrated metal PIFA antenna and LTE filter (internal antenna).

    • Evaluation board with LILY-W132 module
