Laird 60 Wi-Fi® Bluetooth® M.2 EvalKit USB SDIO PCIE UART

LAIRD-60-SIP

Roll over image to zoom in

DVK-ST60-2230C Evaluation Kit for Laird 60 Series WiFi 5 802.11ac 2x2 MIMO plus BT 5.1 Combo Module based on the 88W8997 chipset. Ideally suited for medical and industrial applications that require robust scan and roam, long term support, and single SKU regulatory management via Laird’s Adaptive World Mode.

  • Wi-Fi interfaces supported: SDIO/USB/PCIE
  • Bluetooth interfaces supported: UART/SDIO/USB
  • Supports Linux Kernel 3.2 and newer
  • Supports Android 7 and newer

Product Details

Select a section:

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8997: 2.4/5 GHz Dual-Band 2x2 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.3 Solution

Processors and Microcontrollers

i.MX 6 Processors

  • i.MX6S: i.MX 6Solo Processors – Single-Core, Multimedia, 3D Graphics, Arm® Cortex®-A9 Core

i.MX 7 Processors

  • i.MX7S: i.MX 7Solo Processors - Heterogeneous Processing with Arm® Cortex®-A7 and Cortex-M4 Cores

i.MX 8 Applications Processors

  • i.MX8: i.MX 8 Family – Arm® Cortex®-A53, Cortex-A72, Virtualization, Vision, 3D Graphics, 4K Video

Features

Wireless

  • Wi-Fi 5 - 802.11ac 2x2 - MIMO Dual Band 2.4 Ghz + 5 GHz
  • Bluetooth/Bluetooth LE 5.1

Interfaces

  • Wi-Fi - USB/SDIO/PCIE
  • Bluetooth - USB/SDIO/UART

OS Support

  • Linux Kernel (Minimum 3.2 and newer)
  • Android (Minimum 7 and newer)

Software Features

  • Single SKU Regulatory Management
  • WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise
  • EasyMesh
  • Advanced Scan and Roam

Certifications and Approvals

  • FCC (USA), ISED (Canada), EU (Europe), KC (Korea), Giteki (Japan), RCM (AUS/NZ)
  • Global Capable

Physical Characteristics

  • Industrial temperature rating:  -30° to +85° C

Form Factor

  • M.2 2230 E-key (22 mm x 30 mm x 3.3 mm)

Buy Options

Click to expand

  • DVK-ST60-2230C

  • Laird 60 M.2 Evaluation Kit.

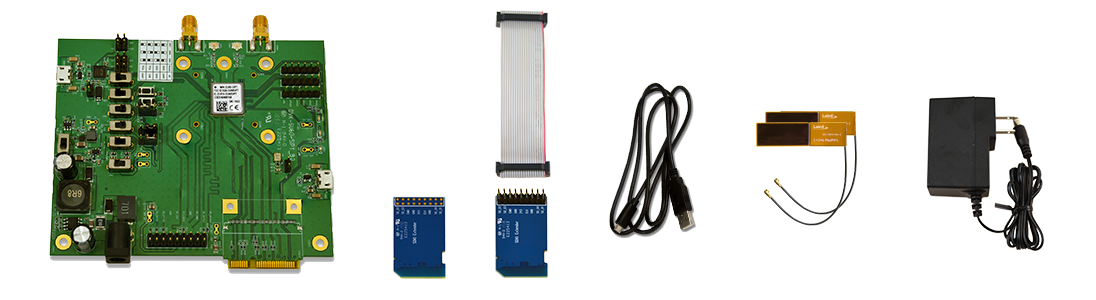

  • Kit Contains:

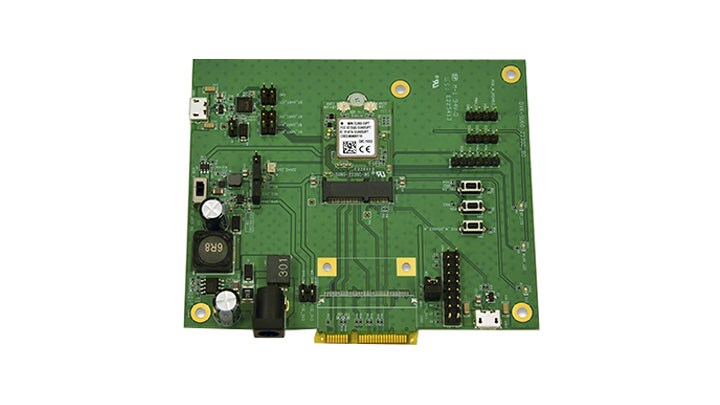

    • SDIO/USB/PCIE/UART Evaluation Board
    • Cables - USB cable – Type A to micro B, SDIO Extender Cable
    • External Power Supply
    • Two 2.4G/5GHz FlexPIFA antennas
