RS08LA Tool Summary Page

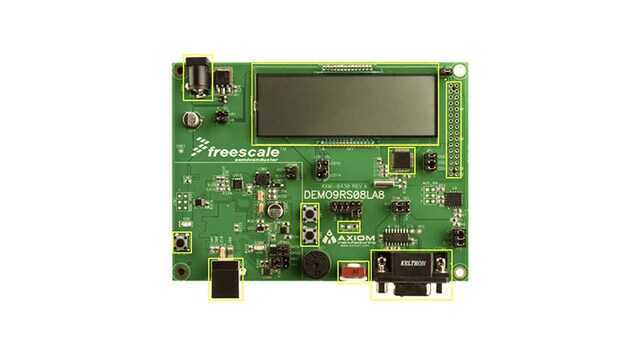

DEMO9RS08LA8

Roll over image to zoom in

Product Details

Select a section:

Features

Microcontroller

  • MC9RS08LA8, 48 LQFP

Connectivity

  • Integrated P&E USB-BDM
  • 40-pin MCU I/O Connector
  • 2.0 mm Barrel Connector
  • BDM_PORT (not installed)
  • USB Connector
  • DB9 Connector

Power Management

  • On-board +5 V regulator
  • Power Input Selection Jumpers

Sensors

  • Temperature Sensor

User Components

  • 3 Push Switches; 4 User, 1 Reset
  • User Option Jumpers to disconnect Peripherals
  • 5 K ohm POT w /LP Filter

Documentation

Quick reference to our documentation types.

3 documents

Design Resources

Select a section:

Design Files

1 design file

  • Printed Circuit Boards and Schematics

    DEMO9RS08LA8 board schematic
