Overview

P1020 device is "Not recommended for new designs", please use the replacement families Power Architecture ( T1023), Arm Architecture (LS1023A).

The QorIQ^® P1 platform series, which includes the P1020 and P1011 communications processors, offers the value of extensive integration and high power for a wide variety of applications in the networking, telecom, aerospace, defense and industrial markets. The series provides dual-and single-core solutions for the 533 MHz to 800 MHz performance range, along with advanced security and a rich set of interfaces delivered on 45 nm technology for a low-power implementation.

The P1 platform series is perfectly suited for multiservice gateways, Ethernet switch controllers, wireless LAN access points and high-performance general-purpose control processor applications with tight thermal constraints.

The QorIQ P1 series consists of dual- and single-core products that are pin-compatible with QorIQ P2 platform products, offering a five-chip range of cost-effective solutions. Scaling from a single core at 533 MHz (P1011) to a dual core at 1.2 GHz per core (P2020), the two QorIQ platforms deliver an impressive 4.5X aggregate frequency range.

Features

Core Complex

Dual (P1020) or single (P1011) high-performance Power Architecture^® e500 cores, 32 KB L1 cache, up to 800 MHz
256 KB L2 cache with ECC, also configurable as SRAM and stashing memory

Networking Elements

Three 10/100/1000 Mbps enhanced triple-speed Ethernet controllers (eTSEC)
Two SGMII interfaces
Support for IEEE^® 1588

Accelerators and Memory Control

DDR2/3 32-bit memory controller with ECC support
Integrated security engine
- Protocol support includes SNOW, ARC4, 3DES, AES, RSA/ECC, RNG, single-pass SSL/TLS, Kasumi
- XOR acceleration

Basic Peripherals and Interconnect

Four-lane SERDES up to 3.125 GHz multiplexed across controllers
Two PCI Express^® Gen1.0 interface controllers
Two USB2.0 controllers
Enhanced Local Bus Controller (eLBC)
TDM
eSDHC
Dual I²C, DUART, PIC, DMA, GPIO

Additional Features

NXP^® Product Longevity Program
689-pin 31x31 mm TePBGA package

Features

Core Complex

Dual (P1020) or single (P1011) high-performance Power Architecture^® e500 cores, 32 KB L1 cache, up to 800 MHz
256 KB L2 cache with ECC, also configurable as SRAM and stashing memory

Networking Elements

Three 10/100/1000 Mbps enhanced triple-speed Ethernet controllers (eTSEC)
Two SGMII interfaces
Support for IEEE^® 1588

Accelerators and Memory Control

DDR2/3 32-bit memory controller with ECC support
Integrated security engine
- Protocol support includes SNOW, ARC4, 3DES, AES, RSA/ECC, RNG, single-pass SSL/TLS, Kasumi
- XOR acceleration

Basic Peripherals and Interconnect

Four-lane SERDES up to 3.125 GHz multiplexed across controllers
Two PCI Express^® Gen1.0 interface controllers
Two USB2.0 controllers
Enhanced Local Bus Controller (eLBC)
TDM
eSDHC
Dual I²C, DUART, PIC, DMA, GPIO

Additional Features

NXP^® Product Longevity Program
689-pin 31x31 mm TePBGA package

P1020RDB : QorIQ<sup>®</sup> P1020 and P1011 Reference Design Board thumbnail

P1020RDB:QorIQ^® P1020 and P1011 Reference Design Board

Evaluation and Development Boards

Comparison Table

	P1011	P1012	P1020	P1021
Cores	1	1	2	2
Core Frequency	533 - 800 MHz	533 - 800 MHz	533 - 800 MHz	533 - 800 MHz
L2 Cache	256KB	256KB	256KB	256KB
DDR	32-bit DDR2/DDR3	32-bit DDR2/DDR3	32-bit DDR2/DDR3	32-bit DDR2/DDR3
GbE	3 x 10/100/1000	3 x 10/100/1000	3 x 10/100/1000	3 x 10/100/1000
PCIe Gen 1.0	2 controllers w/ 4 SERDES	2 controllers w/ 4 SERDES	2 controllers w/ 4 SERDES	2 controllers w/ 4 SERDES
USB 2.0	2	1	2	2
Memory Card	SD/MMC	SD/MMC	SD/MMC	SD/MMC
Other interfaces	SPI, 2xI²C, DUART	SPI, 2xI²C, DUART	SPI, 2xI²C, DUART	SPI, 2xI²C, DUART
TDM or QUICC Engine	TDM	QUICC Engine	TDM	QUICC Engine
Accelerators	SEC3.3	SEC3.3	SEC3.3	SEC3.3

P1011

P1012

P1020

P1021

Cores

Core Frequency

533 - 800 MHz

L2 Cache

256KB

DDR

32-bit DDR2/DDR3

GbE

3 x 10/100/1000

PCIe Gen 1.0

2 controllers w/ 4 SERDES

USB 2.0

Memory Card

SD/MMC

Other interfaces

SPI, 2xI²C, DUART

TDM or QUICC Engine

TDM

QUICC Engine

TDM

QUICC Engine

Accelerators

SEC3.3

Complementary products for your application

Step 1:

Step 2:

QorIQ^® P1020 and P1011 Dual- and Single-Core Communications Processors

Overview

Features

Core Complex

Networking Elements

Accelerators and Memory Control

Basic Peripherals and Interconnect

Additional Features

Features

Core Complex

Networking Elements

Accelerators and Memory Control

Basic Peripherals and Interconnect

Additional Features

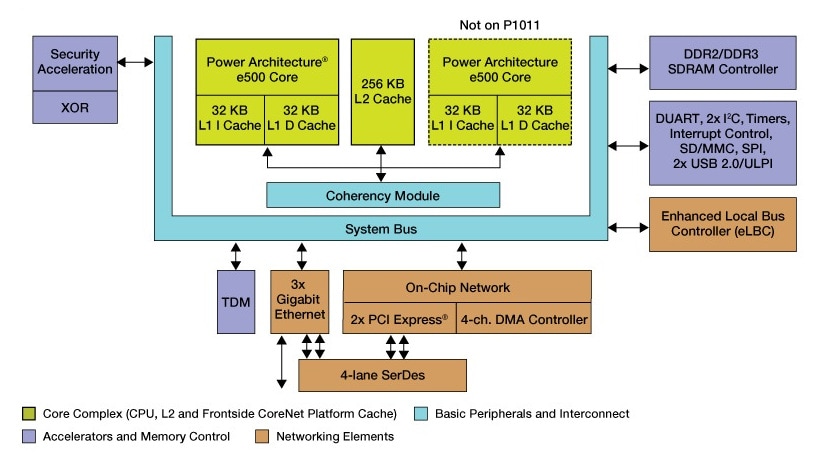

Freescale QorIQ P1020/11 Communication Processor Block Diagram
