Demoboard for BGA3018, 40 MHz to 2600 MHz wideband amplifier application

OM7865

Roll over image to zoom in

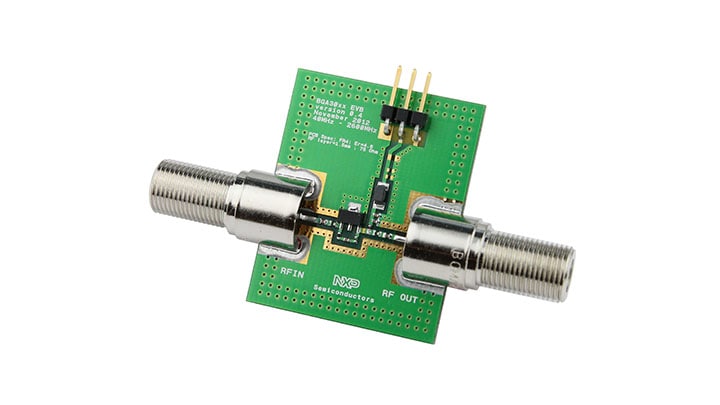

The BGA3018 CATV drop amplifier kit simplifies the evaluation of the BGA3018 wideband amplifier. It contains a RF board matched to 75 Ohm from 40 MHz up to 2.6 GHz with F-connectors. The board operates between 5 V and 8 V. The kit also provides BGA3018 samples for prototyping, device models and product documentation.

Product Details

Select a section:

Supported Devices

RF

Wideband Amplifiers GP & Extreme

  • BGA3018: 1 GHz 18 dB Gain Wideband Amplifier MMIC

Features

  • Evaluation of electrical DC and RF performance like IDC, S-Parameters, Distortion levels, P-1 dB, Noise Figure
  • PCB layout evaluation
  • Device Models and S-parameters

Buy Options

  • OM7865

  • Demoboard for BGA3018, 40 MHz to 2600 MHz wideband amplifier application.

    • RF board
    • BGA3018 samples
  • $160.00 USD
  • For a quantity of 1
