MK UWB SR150/SR040: UWB Development Kit for Trimension™ SR150/SR040

MK-UWB-DEV-KIT

Roll over image to zoom in

The MK UWB SR150/SR040 Development Kit is a comprehensive reference design and development platform for UWB-based IoT solutions. Experience UWB technology with ready-to-run demonstration apps, Arduino-connected development boards and software libraries to start prototyping and developing your own UWB applications with minimum effort. Leverage on our powerful software tools such as the MK UWB Toolbox Android application to develop innovative mobile applications, the MK UWB PC Shell application to obtain ranging information on any host computer, the MK UWB Library which provides a simple but powerful API for your IoT embedded solution and out-of-the-box support for NXP QN9090 and Nordic nRF 52840 MCUs.

Product Details

Select a section:

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Secure Ultra-Wideband (UWB)

  • SR040: Trimension™ SR040: Reliable UWB Solution for IoT
  • SR150: Trimension™ SR150: Secure UWB Solution for IoT Devices

Features

Secure Ultra-Wideband (UWB)

  • SR040 : Trimension™ SR040: Reliable UWB Solution for IoT Tags
  • SR150 : Trimension™ SR150: Reliable UWB solution for IoT Devices
  • EdgeLock® SE051W : IoT Secure Element product family for secure UWB ranging in IoT

On-board component

Security and Authentication

Host Interface

  • USB, Bluetooth Low Energy, UART, SPI

Other Interfaces

  • NFC (no built-in antenna)

UWB IC

Antenna

  • MK UWB 3D Antenna board

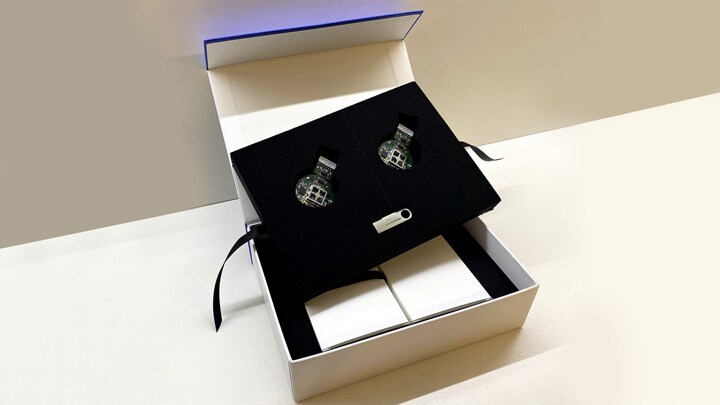

Kit Content

  • 2x UWB Tags SR040
  • 1x MK UWB SR150 Anchor 3D, consisting of:
    • MK UWB Shield 2 Arduino-compatible development board
    • MK UWB 3D Antenna board, with a soldered UWB module featuring NXP Trimension™ SR150 UWB IC and supporting 3D position information
  • 1x MK UWB SR040 Board with a soldered UWB module featuring NXP TrimensionTM SR040 UWB IC and an integrated antenna
  • Cables and connectors: USB to micro-USB OTG adapter, micro-USB to USB-C adapter, and USB cable
  • USB flash drive with software and documentation

Software

  • MK UWB SDK
  • MK UWB Library
  • MK UWB Toolbox Android application
  • MK UWB PC Shell application

Buy Options

Click to expand

  • MK UWB SR150/SR040 Development Kit

  • A set of hardware, software tools and documentation to prototype your UWB-based solution(s) and accelerate the time to market.

    • 2x UWB Tags SR040
    • 1x MK UWB SR150 Anchor 3D, consisting of:
      • MK UWB Shield 2 Arduino-compatible development board
      • MK UWB 3D Antenna board, with a soldered UWB module featuring NXP Trimension™ SR150 UWB IC and supporting 3D position information
    • 1x MK UWB SR040 Board with a soldered UWB module featuring NXP TrimensionTM SR040 UWB IC and an integrated antenna
    • Cables and connectors: USB to micro-USB OTG adapter, micro-USB to USB-C adapter, and USB cable
    • USB flash drive with software and documentation
