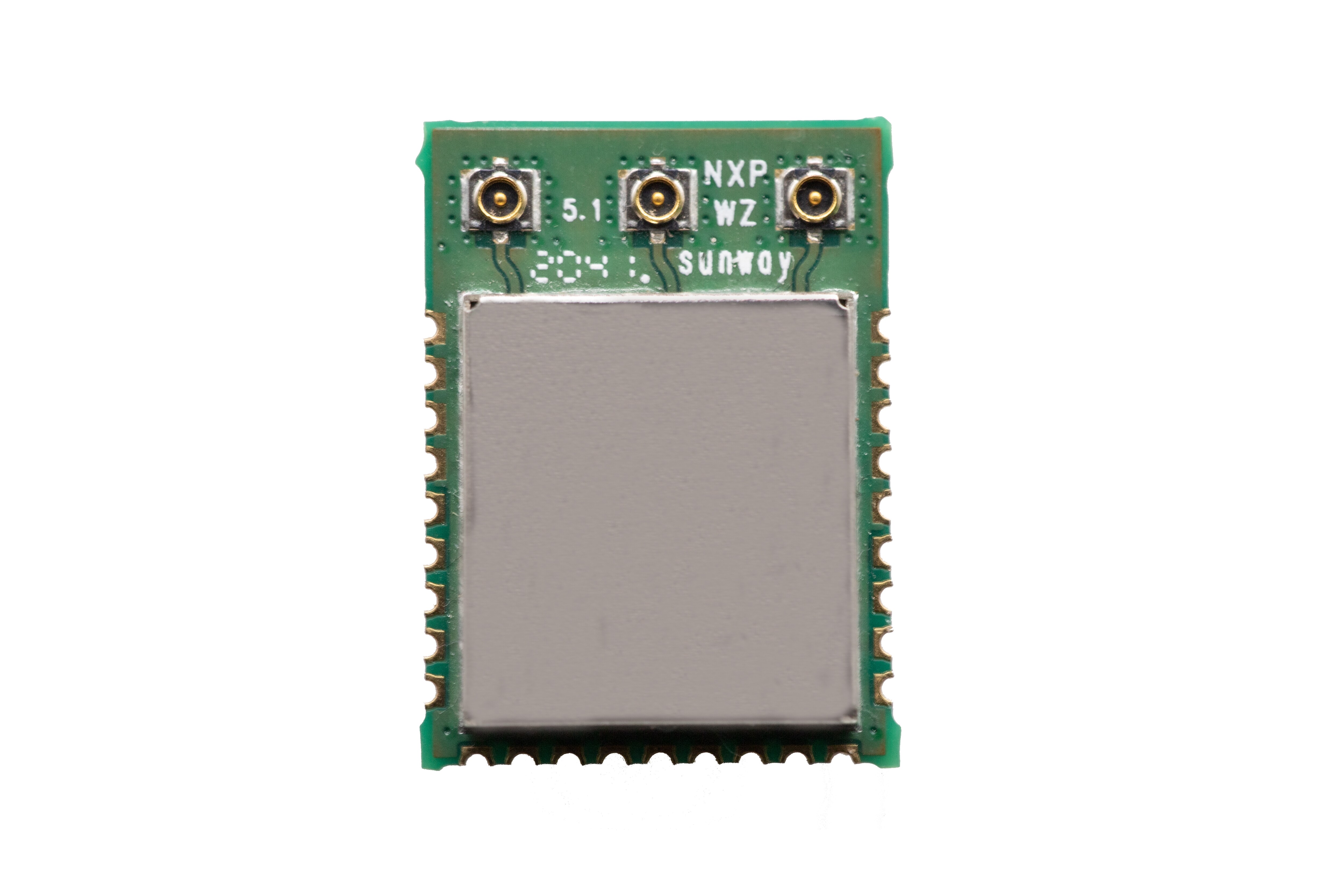

Developed on NXP’s SR150 Ultra-Wideband (UWB) transceiver IC, the SW-M1000-SR150 by Sunway Communication is a complete UWB module with fully integrated RF frontend and RF connectors. It is designed to deliver high-precision two-way ranging (±10 cm) and direction measurement (±3°) which enables many new location-based services and device-to-device IoT applications both in consumer and industrial settings. The module offers wide supply voltage range including direct Lithium-Ion battery connection giving customers maximum flexibility while reducing the external component count.
- Support up to 3 external antennas for high accuracy secure ranging with 3D Ange-of-Arrival (AoA)
- Onboard EEPROM for custom antenna calibration
- Onboard 32 kHz crystal
- Optional DCDC
- Full FiRa Consortium™ ready MAC/PHY
- Multicast and multisession capability
