Dual Synchronous Rectifier Evaluation Board

TEA2096DB2201

Roll over image to zoom in

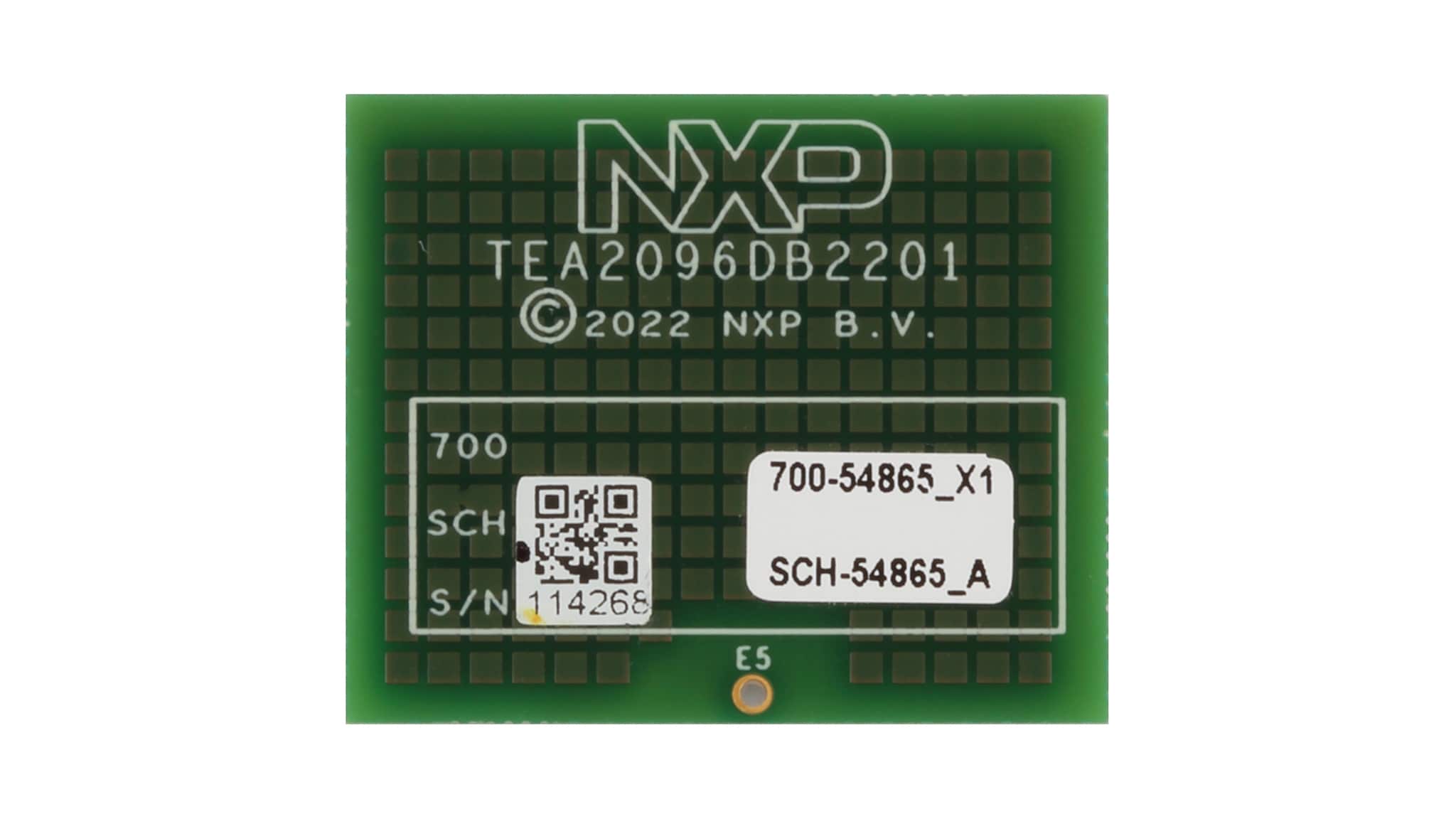

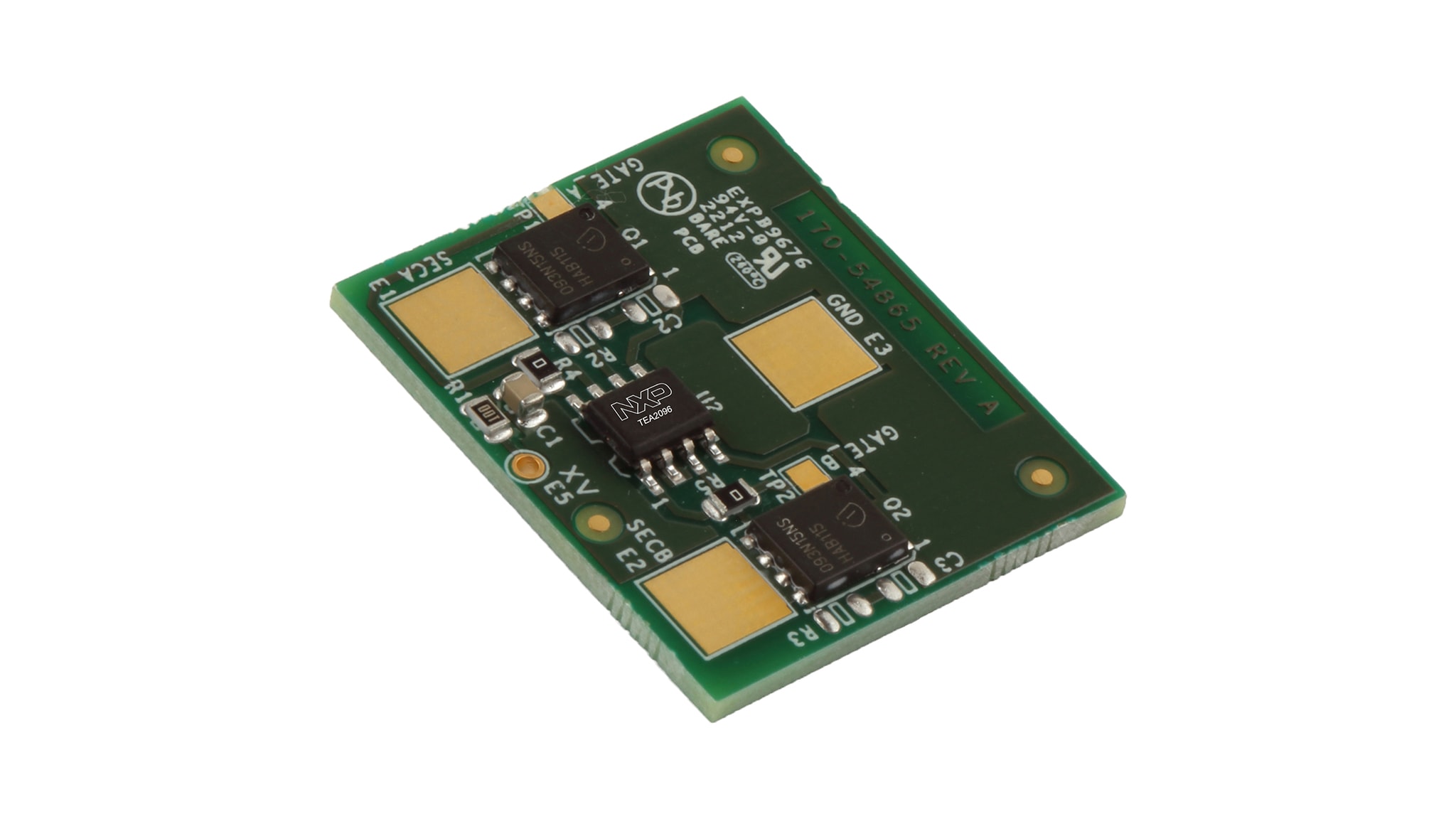

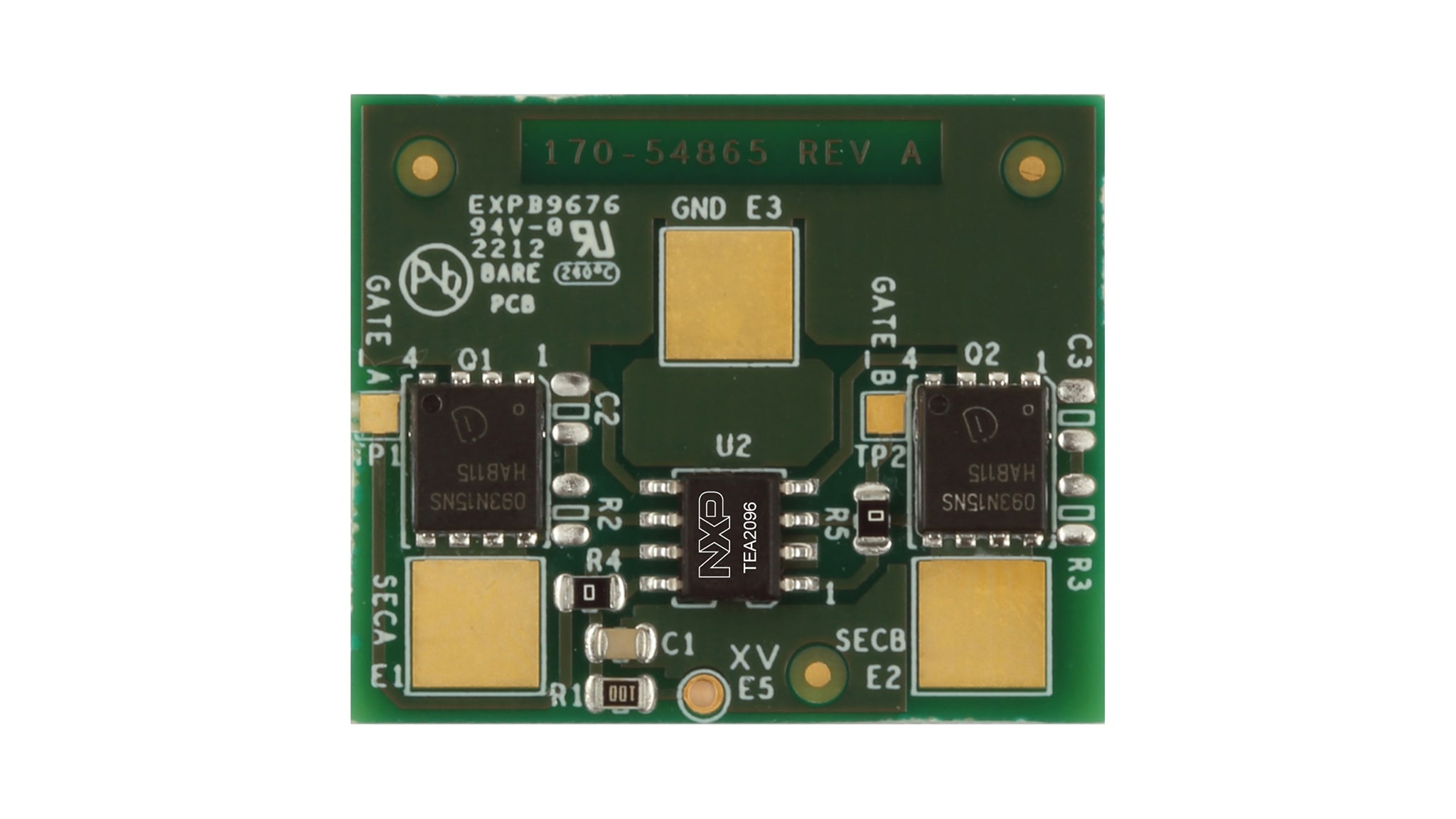

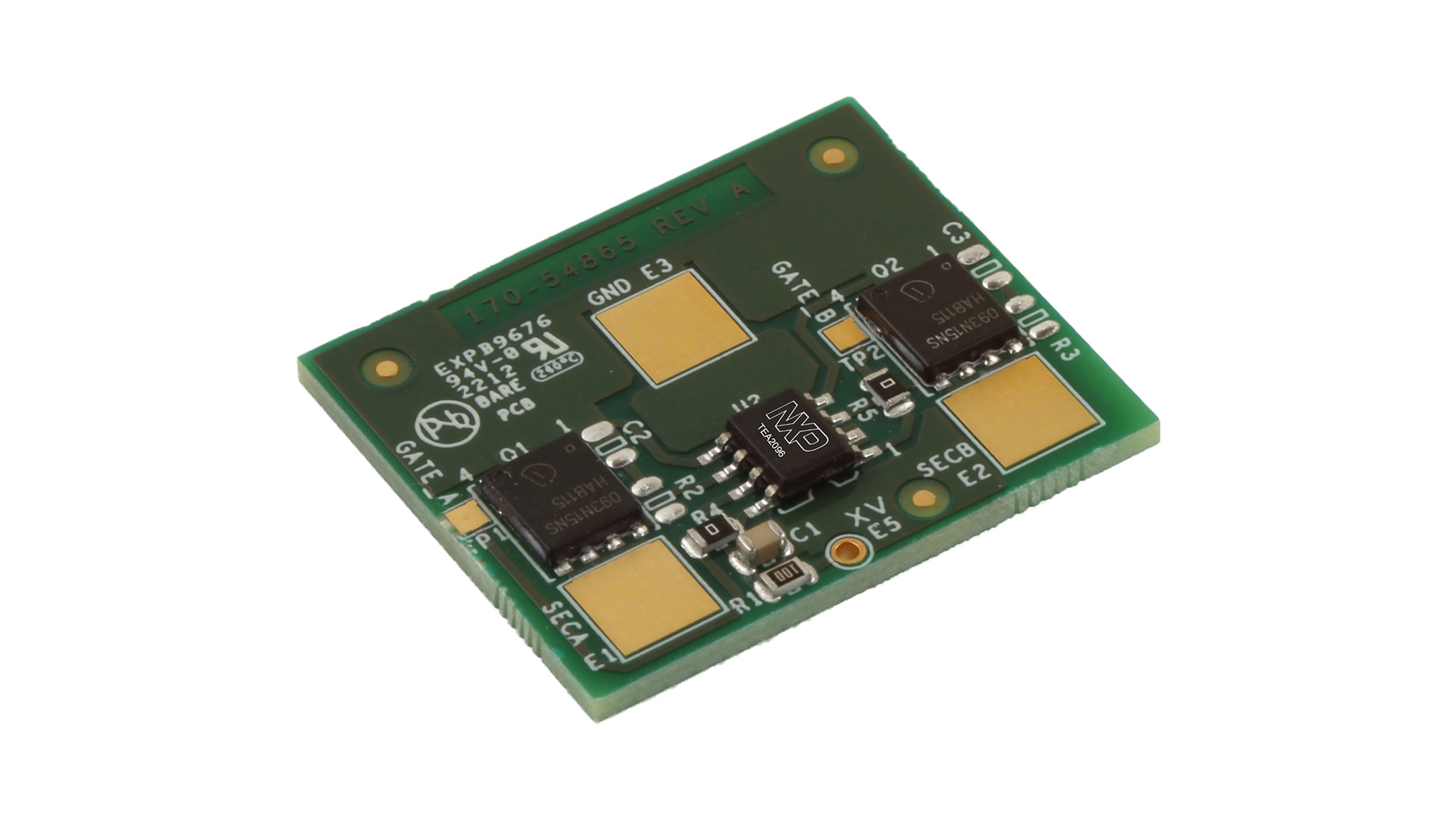

The TEA2096DB2201 is an add-on evaluation board enabled by the TEA2096T Synchronous Rectification controller in an SO-8 package. The TEA2096T controller includes two adaptive gate drives for maximum efficiency at any load.

The TEA2096DB2201 add-on evaluation board also contains two 150 V / 9.3 mΩ MOSFETs and therefore enables easy replacement of the secondary side rectification in an existing power supply.

Product Details

Select a section:

Supported Devices

Power Management

Secondary Side Controllers

  • TEA2096: Dual Synchronous Rectifier Controller

Features

Key Features

  • Easy replacement of secondary-side rectifiers of an existing LLC converter
  • Two 150 V / 9.3 mΩ MOSFETs are incorporated
  • Adaptive gate drive for maximum efficiency at any load
  • Supports up to 1MHz switching frequency
  • Interlock function to prevent simultaneous conduction of both MOSFETs
  • Wide supply voltage range from 4.75 V to 38 V
  • Supply current in energy save operation of 80 μA
