NHS52Sx4EVK Evaluation Kit for BLE 5.3 IoT Solutions
NHS52Sx4EVK Receive alerts
- Preproduction
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

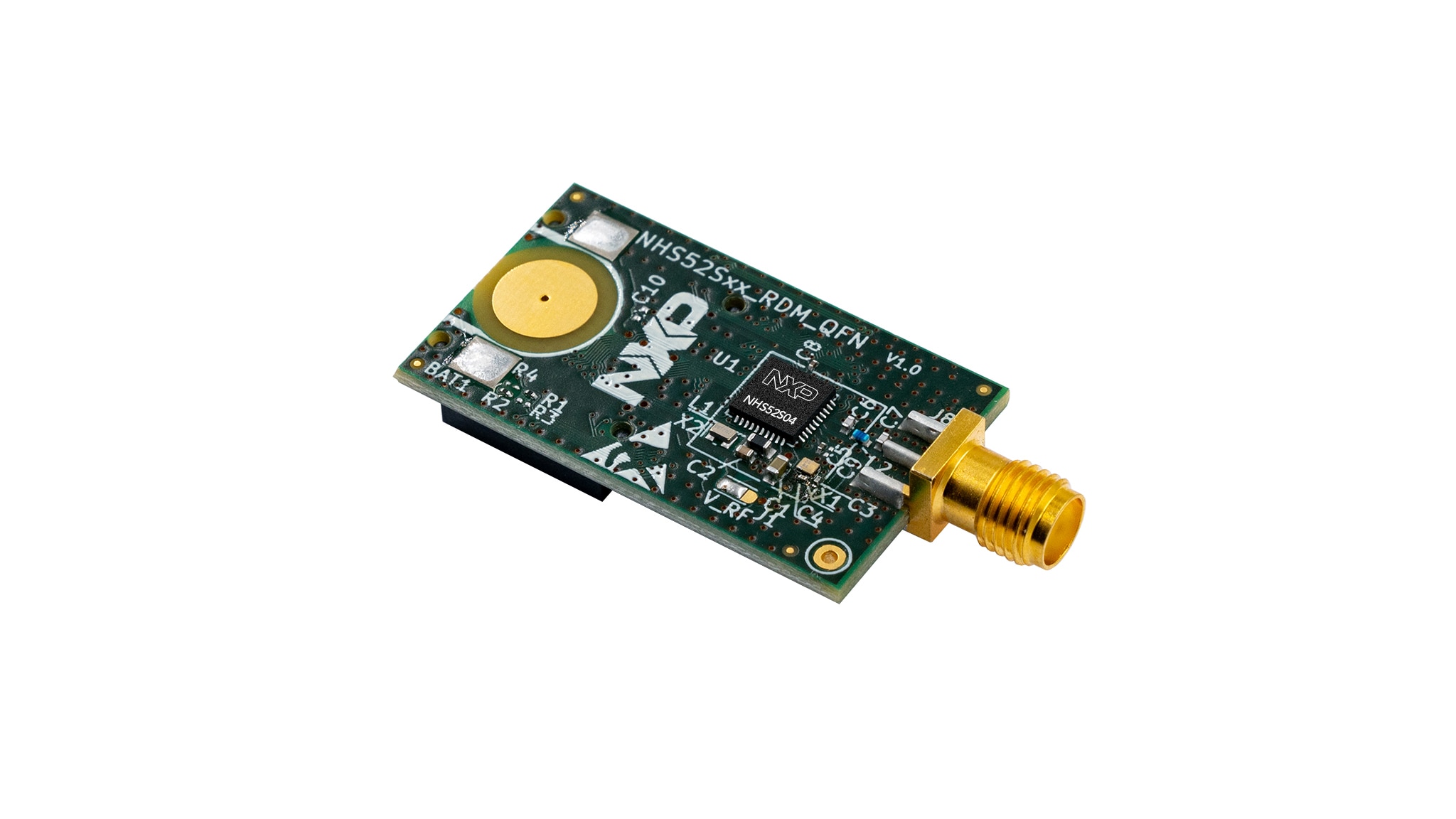

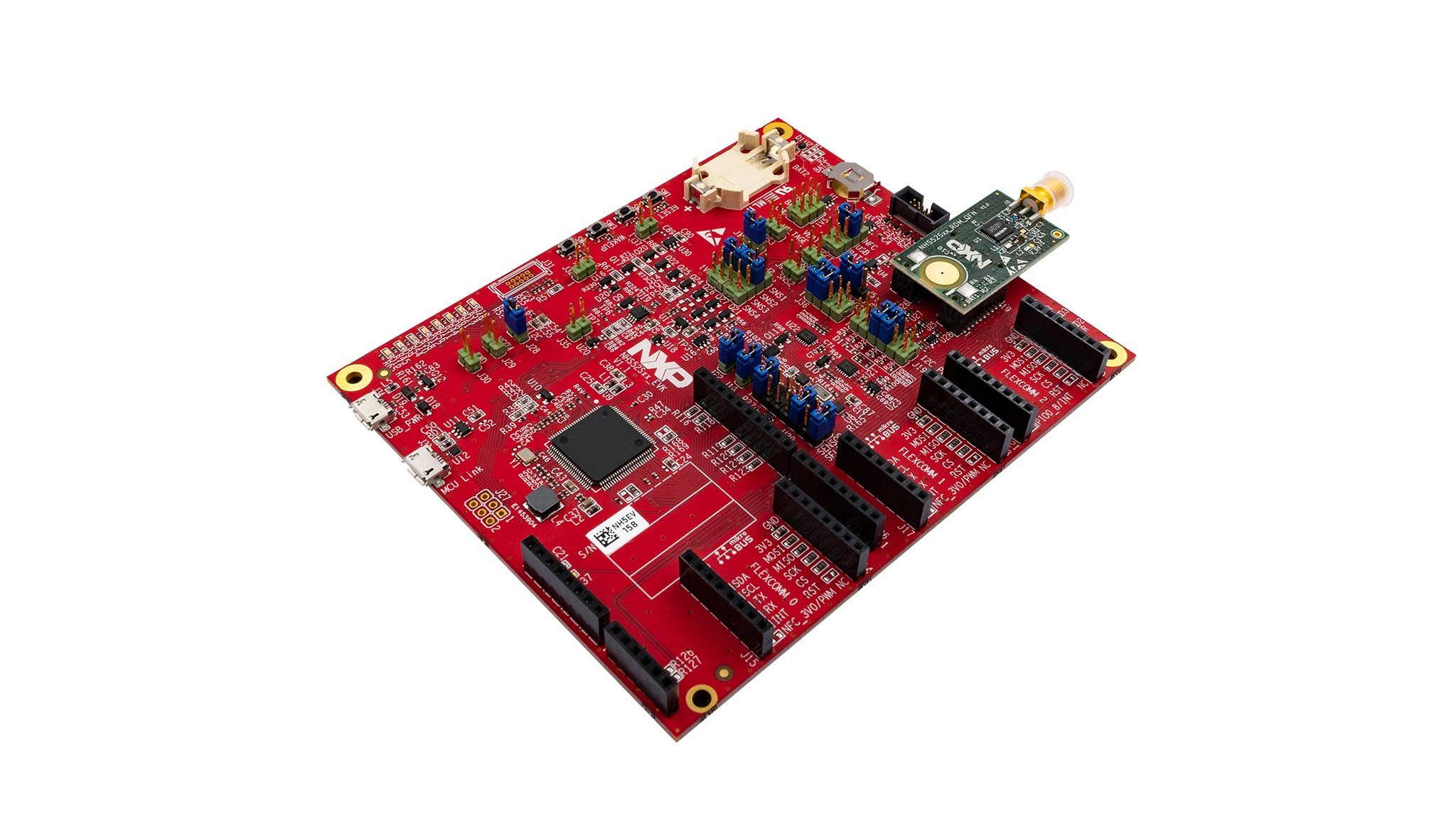

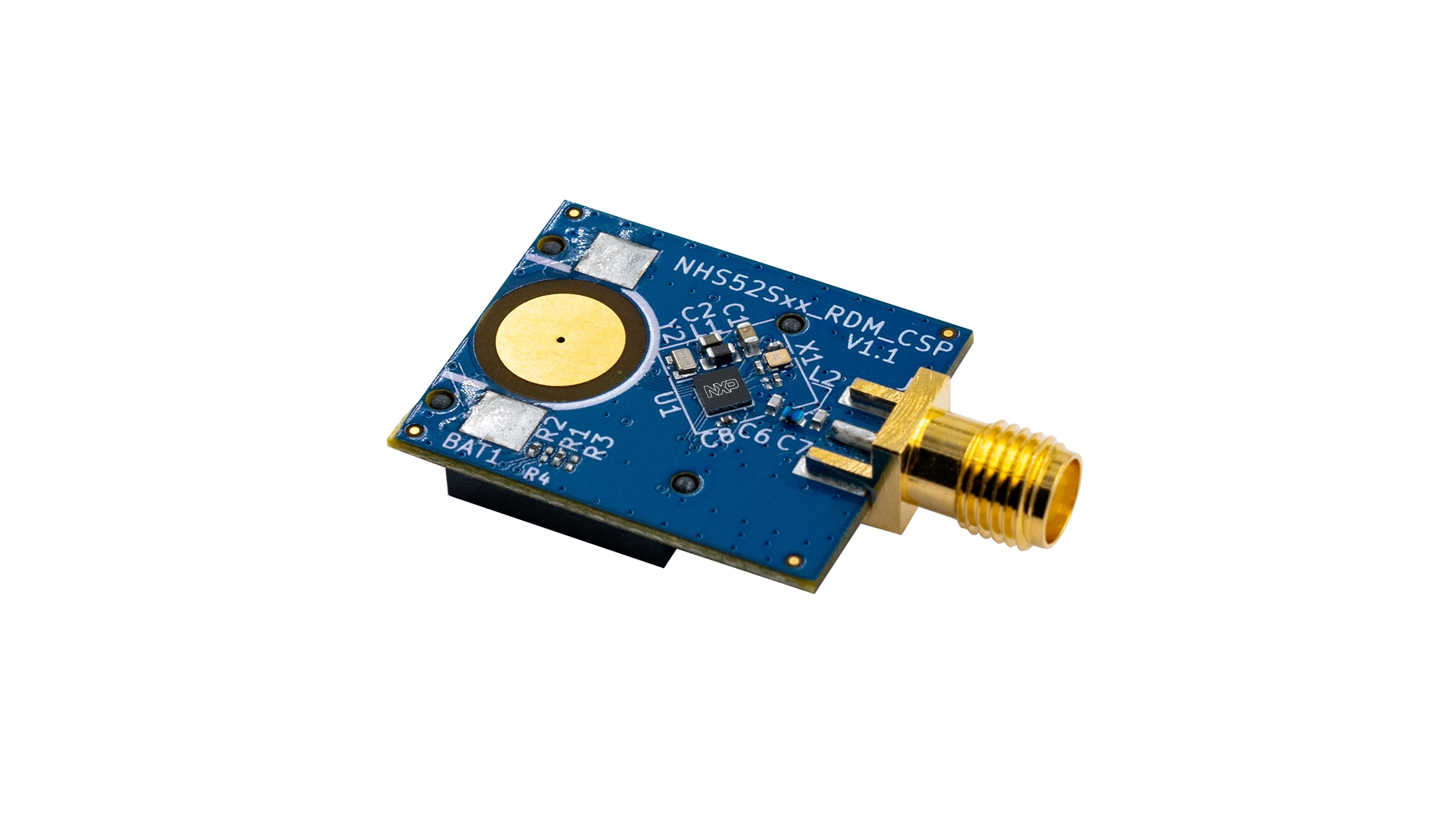

The NHS52Sx4 base board, combined with a NHS52Sx4 Radio Daughter Module (RDM), is an evaluation environment supporting NXP’s NHS52Sx4 wireless processor.
The EVK supports IoT applications and is intended for prototyping, demos, software development and measurements (power consumption and RF).
The NHS52Sx4EVK also supports direct operations from a single silver-oxide battery and constitutes multiple debugging mechanisms, thus aiding easier application development.
NHS52Sx4EVK and enablement (documentation, software and boards) are available for select customers with an approved NDA. For additional information and sample availability, contact support or your local sales representative.
Product Details
Supported Devices
Wireless Connectivity
Bluetooth Low Energy
- NHS52Sx4: NHS52Sx4: Ultra-Low-Power Bluetooth® Low Energy Solution With Arm® Cortex®-M33 TrustZone® for Medical IoT
Sensors
Magnetic Sensors
- NMH1000: NMH1000 Ultra-Low Power and Low-Voltage Magnetic Switch
Barometric Pressure 15 to 150 kPa
- FXPQ3115BV: Biomedical Precision Pressure Sensor
Accelerometers
- FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer
Features
Connectivity
- The NHS52Sx4EVK can be connected using:
- FlexComm
- UART
- SPI
- I2C
- MikroBUS socket connectors
- SMA antenna connector
User Interface
- 4 push buttons – Wake-up, Reset, ISP and User
- Onboard sensors
- Multiple battery holders
MCU-Link Pro
- SWO profiling and I/O features
- Multiple LEDs for diagnosis
- HS-USB host interface
- Current measurement with two ranges: 0 to 1 mA and 0 to 50 mA
