Trimension™ SR040 UWB Module with Integrated Antenna: SW-M1000-SR040

UWB-SUNWAY-SR040

Roll over image to zoom in

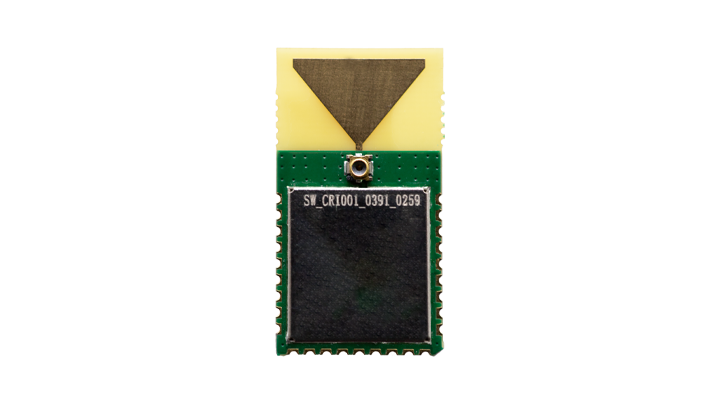

The UWB module is based on NXP Trimension SR040 UWB transceiver IC. It integrates all RF circuitry, power management and clock circuitry in one module compliant to IEEE 802.15.4 HRP UWB PHY. In addition, the antenna is integrated into module. The pinout is the same as for the SW-M1000-SR150 simplifying designs. Designed for ranging applications in an IoT environment, it can be used for 2-way measurement with a measurement accuracy of 10 cm. as well as for data transmission with a data rate of up to 7.8 Mbits/s.

Product Details

Select a section:

Supported Devices

Wireless Connectivity

Secure Ultra-Wideband (UWB)

  • SR040: Trimension™ SR040: Reliable UWB Solution for IoT

Features

Size

  • 13 mm x 24 mm x 2.2 mm

On-board component

  • UWB antenna

Host Interface

  • SPI

Ohter Interfaces

  • GPIO

Secure element interface

  • None

UWB IC

Antenna

  • On-Board

Buy Options

Click to expand

  • SW-M1000-SR040

  • Sunway UWB Module based on NXP Trimension SR040 for tagging use cases.

  • Kit Contains:

    • Integrated antenna
    • 2-way measurement
    • Data transmission of up to 7.8 Mbits/s
