PNEV5180B
Active -
PN5180 NFC Frontend Development Board for POS Terminal Applications.
Compact List
PN5180 NFC Frontend Development Board for POS Terminal Applications

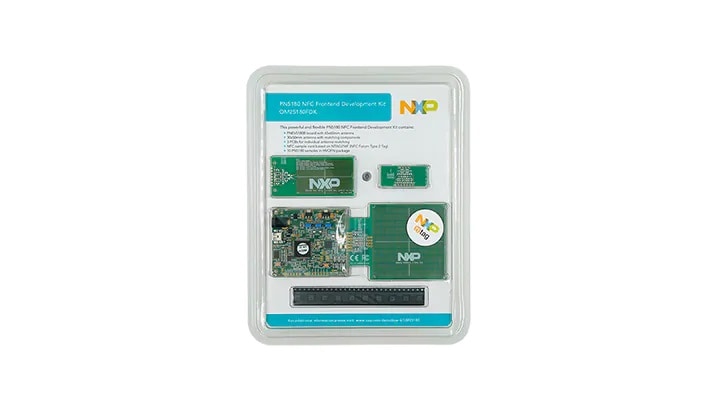

OM25180FDK is a flexible and easy to use frontend development kit for PN5180, which is mainly used for POS terminal applications. It contains a PNEV5180B board with 65 mm x 65 mm antenna optimized for EMVCo applications, a 30 mm x 50 mm antenna with matching components optimized for NFC applications, three small antenna matching PCBs (approx. 30 mm x 50 mm sized) for implementation of a custom antenna matching circuit, an NFC sample card based on NTAG®216F (NFC Forum Type 2 Tag) and PN5180 samples in HVQFN package.
Product Details
Features
Wireless
- Highest RF performance
- Full compliance with all standards relevant to NFC, contactless operation, and EMVCo
Power Management
- Onboard Dynamic Power Control (DPC) for optimized RF performance
- Low-power card detection
- Active load modulation, boosting small antenna performance in Card Emulation Mode
- Artificial damping of the RF field in the middle of the antenna simulating the presence of a PCB or display to demonstrate the expected performance
Buy Options
-
OM25180FDK
Active -
OM25180FDK Frontend Development Kit (FDK).
Documentation
Quick reference to our documentation types.
3 documents
Reliability and Quality Information (2)
-
PNEV5180B EMVCO3.1a test reports[PNEV5180B_EMVCo3.1a_testreports]
-
EC Declaration of Conformity for PNEV5180B[DoC_PNEV5180B]
User Guide (1)
-
PN5180 SW Quick start guide[UM10954]Getting Started
Design Resources
Software
Quick reference to our software types.
3 software files
-
Configuration Tools
NFC Cockpit Configuration Tool for NFC ICs
-
BSPs and Device Drivers
PN5180 Antenna design tools
Note: For better experience, software downloads are recommended on desktop.
