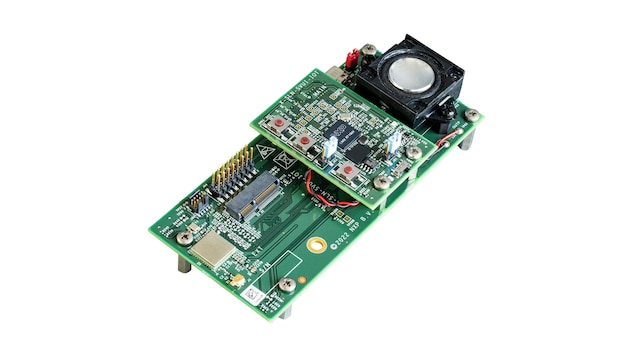

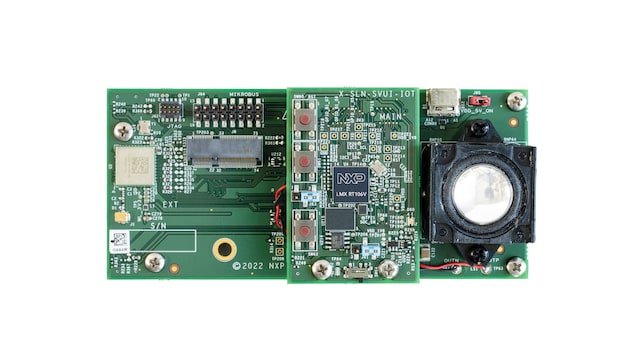

EdgeReady i.MX RT106V-Based Smart Voice User Interface Solution

SLN-SVUI-IOT

Roll over image to zoom in

This EdgeReady solution for both local and online voice control leverages the i.MX RT106V crossover MCU with integrated voice intelligent technology (VIT) offering a voice user interface for touchless applications. This ultra-small form-factor and production ready hardware design comes with fully integrated software running on FreeRTOS for a quick out-of-the-box evaluation. This turnkey solution minimizes time to market, risk and development effort enabling OEMs to easily add voice to their smart home and smart appliance products. This NXP EdgeReady solution is part of the EdgeVerse™ edge computing platform.

Block Diagram

Choose a diagram:

SVUI Hardware

SLN-SVUI-IOT Smart Solutions

SVUI Software

SLN-SVUI-IOT Smart Solutions
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1060: i.MX RT1060: Crossover MCU with Arm® Cortex®-M7

Features

  • i.MX RT106V Crossover MCU with Arm® Cortex®-M7 core, 3020 CoreMark/1284 DMIPS @ 600 MHz
  • Advanced multimedia for GUI and enhanced HMI
    • 2D graphics acceleration engine
    • LCD display controller (up to WXGA 1366x768)
    • 3x I2S for high-performance, multi-channel audio
  • Secure JTAG PLL OSC eDMA 4x Watch Dog 6x GP Timer 4x Quadrature ENC 4x QuadTimer 4x FlexPWM IOMUX
  • Extensive external memory interface options
    • NAND, eMMC, QuadSPI NOR Flash, and Parallel NOR Flash
  • Far field audio front end automatic speech recognition supports 360° far field voice 65dB noise @ >3 meters
  • Supports 2xPDM or up to 3xI2S DMIC provides 2 or 3-mic for audio beamforming
  • Text input tool creates speech models of custom commands and wake words with no NRE
  • IW416 integrated on board to support Wi-Fi® 4 (802.11n) + Bluetooth® 5.2

Buy Options

SLN-SVUI-IOT-Image

Click to expand

  • SLN-SVUI-IOT

  • EdgeReady i.MX RT106V-Based Smart Voice User Interface Solution .

  • Kit Contains:

    • i.MX RT Voice Kit
    • USB Type-A to USB Type-C Cable
    • Wi-Fi Antena

  • $109.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 14
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
