The PF09 power management integrated circuit (PMIC) is optimized for high-performance i.MX95 based applications. It features five high-efficiency buck converters and four linear regulators for powering the processor, memory and miscellaneous peripherals. PF09 provides low quiescent current in standby and low-power off modes.
The PF09 is developed in compliance with automotive ISO 26262 and industrial IEC 61508 safety standards, including safety features, with failsafe outputs and integrated self-test mechanisms, becoming part of a safety oriented system partitioning targeting high integrity safety levels up to automotive ASIL D and industrial SIL 2.
| Part Number | Description | OTP ID* | Safety Grade | Package |
|---|---|---|---|---|
| MPF0900AMBA1ES | i.MX 95 | OTP report, programming and configuration | ASILB | HVQFN56 |
| MPF0900AMBA2ES | i.MX 95 | OTP report, programming and configuratio | QM | HVQFN56 |
| MPF0900AMMA1ES | i.MX 95 | OTP report, programming and configuratio | QM | HVQFN56 |
| MPF0900AMMA2ES | i.MX 95 | OTP report, programming and configuratio | QM | HVQFN56 |
| MPF0900AMMA5ES | i.MX 93 | OTP report, programming and configuration | QM | HVQFN56 |
| MPF0900AVNA1ES | i.MX 95 | OTP report, programming and configuratio | QM | HVQFN56 |
| MPF0900AVNA2ES | i.MX 95 | OTP report, programming and configuration | QM | HVQFN56 |
| MPF0900AVNA5ES | i.MX 93 | F3 report, programming and configuration | QM | HVQFN56 |
| MPF0900AVSA1ES | i.MX 95 | OTP report, programming and configuration | SIL2 | HVQFN56 |
| MPF0900AVSA2ES | i.MX 95 | OTP report, programming and configuration | SIL2 | HVQFN56 |
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Quick reference to our documentation types
8 documents
Compact List
Receive the full breakdown. See the product footprint and more in the eCad file.
4 hardware offerings

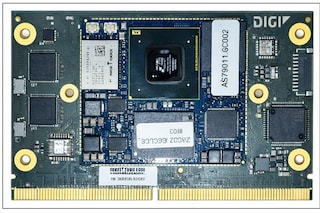

Additional hardware available. View our featured partner solutions.
