Universal Sensing Modules with Wired Connectivity

UNIVERSAL-SENSING-MODULES
Active

Roll over image to zoom in

NXP's universal sensing module is a universal, software-configurable analog input solution designed for high-precision sensing and edge intelligence. It supports versatile sensor inputs (voltage, current, temperature, resistance, pressure and weight) and ensures reliable wired connectivity via CAN FD, Ethernet and USB.

With an advanced NAFE13388 analog front end and an MCX N947 MCU, this module delivers high-accuracy, high-precision data, in addition to real-time diagnostics, anomaly detection and predictive maintenance for industrial automation, lab instrumentation and smart manufacturing.

Block Diagram

Universal Sensing Modules

Universal Sensing Modules with Wired Connectivity Block Diagram
Get diagram PDF

Features

NAFE13388 Analog Front End

  • Low-power 24-bit universal input AFE
  • Voltage and current excitation sources
  • Eight single-ended or four differential channels with ranges up to ±12.5 V (AFE capable of ± 25V)
  • Configurable for voltage, current, resistance, RTD, Thermocouples and other sensors
  • Overvoltage protected up to ±36 V
  • 7.5 kV HBM ESD and IEC 61000-4-5 2 kV Surge protected inputs

MCX N947 Microcontroller

  • Dual-core Arm® Cortex®-M33 @150MHz
  • Up to 2MB dual-bank flash
  • eIQ® Neural Processing Unit
  • DSP Accelerator (PowerQUAD)
  • Smart DMA Engine
  • EdgeLock® Secure Enclave

Connectivity

  • 10/100 Mbps Ethernet and PHY
  • CAN FD Transceiver
  • HS USB Type-C connectors
  • SPI/I²C/UART connector

Expansion Options

  • Arduino® Header (with FRDM expansion rows)
  • FRDM Header

Software Ecosystem

  • FreeMASTER Run-Time Debugging Tool
  • MCUXpresso SDK
  • Application Code Hub

Buy Options

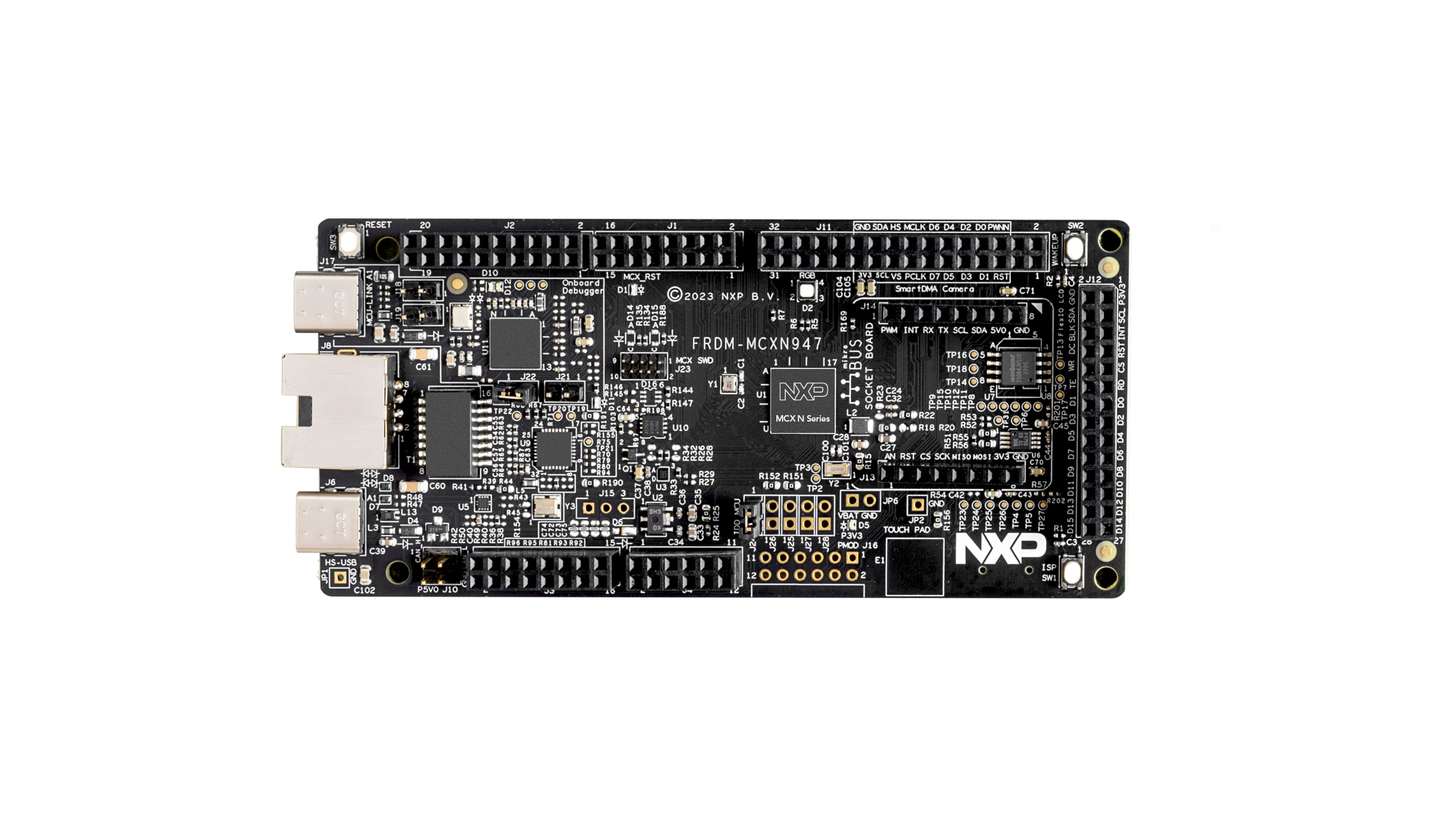

FRDM-MCXN947-Image

Click to expand

FRDM-MCXN947
Active

FRDM Development Board for MCX N94 and N54 MCUs.

    $25.00 USD
    In Stock :47

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors

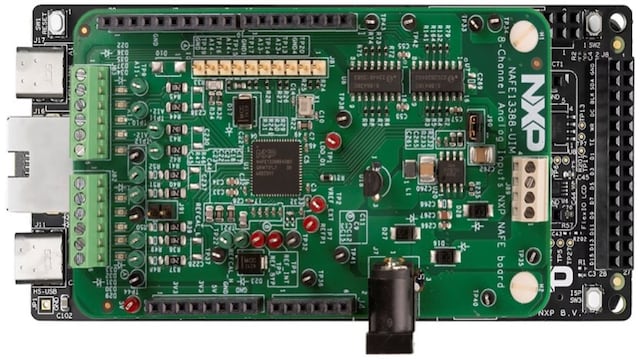

    NAFE13388-UIM-Image

    Click to expand

    NAFE13388-UIM
    Active

    NAFE13388-UIM 8-Channel Universal Input AFE Arduino® Shield Board.

    • Expansion Board: Yes
    $49.00 USD
    In Stock :11

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
