FRDM Development Boards
FRDM development boards include low-cost, compact MCU and MPU boards with an easy development journey and extensive ecosystem to simplify your design. The FRDM ecosystem includes comprehensive software and tools, modular hardware and access to solution-driven examples.
FRDM Ecosystem
At NXP, we empower engineers with the FRDM ecosystem to innovate. Whether you're an experienced developer or just starting out, our FRDM ecosystem offers tools to accelerate development and simplify prototyping.
Software Tools
Comprehensive software tools for seamless prototyping and rapid development.
Modular Hardware
Modular Hardware Scale your project with modular, quick-start FRDM and expansion boards.
Application Code
Leverage our application code hub or GoPoint to access 100+ code snippets and demos.
Design without Bounds
Explore FRDM Ecosystem—modular boards, powerful tools and rapid prototyping for edge innovation.
FRDM Platform
NXP's differentiated technology to address a range of secure, connected edge applications with baseline features across the FRDM platform
40-pin + HDMI + Wi-Fi + Bluetooth + 802.15.4
FRDM Platform for Applications Processors
The next chapter for NXP's FRDM Development Platform includes the introduction of our powerful i.MX applications processors for advanced edge applications. Our FRDM i.MX 93 and FRDM i.MX 91 development platforms offer scalability across both software and hardware to support your next design project. Explore our FRDM i.MX development boards in our whitepaper.
FRDM Portfolio
NXP’s FRDM Platform is enabling technologies across supported products to help you evaluate different use cases with scalable options from General purpose MCUs to i.MX Processors.
| MCX A | MCX C | MCX E | MCX N | MCX W | RW612 | i.MX 9 | |
|---|---|---|---|---|---|---|---|
| Industrial Safety | |||||||
| Motor Control | |||||||
| AI/ML Acceleration | |||||||
| Security | |||||||
| Multimedia | |||||||
| Networking TSN | |||||||
| Connectivity | |||||||
| Sensing |
Find the FRDM development board to start your project.
| Family | Core | FRDM Part number | Main feature | |
|---|---|---|---|---|
| Entry MCU | MCX C | Cortex-M0+ | FRDM-MCXC041 | UART, SPI, I2C |
| Cortex-M0+ | FRDM-MCXC242 | FS USB | ||
| Cortex-M0+ | FRDM-MCXC444 | FS USB and SLCD | ||
| Mainstream MCU | MCX A | Cortex-M33 | FRDM-MCXA153 | FS USB |
| Cortex-M33 | FRDM-MCXA156 | FS USB and CAN FD | ||
| МСХ Е | Cortex-M4F | FRDM-MCXE247 | 5V/3.3V, Ethernet, 3x CAN | |
| Advanced MCU | MCX N | Cortex-M33 | FRDM-MCXN236 | HS USB |
| Cortex-M33 | FRDM-MCXN947 | Ethernet, HS USB and ML acceleration | ||
| Connectivity MCU | MCX W | Cortex-M33 | FRDM-MCXW71 | Bluetooth LE® and 802.15.4, CAN |
| RW612 | Cortex-M33 | FRDM-RW612 | Wi-Fi 6, Bluetooth LE®, 802.15.4, Ethernet, HS USB | |
|
Entry MPU Mainstream MPU |
i.MX 9 | Cortex-A55 | FRDM-IMX91 | 40 pin EXPI, Wi-Fi 6 + Bluetooth® + 802.15.4 Module, eMMC 8GB |
| Cortex-A55, Cortex-M33 | FRDM-IMX93 | HDMI, MIPI CSI/DSI, Wi-Fi 6 + Bluetooth® + 802.15.4 Module, eMMC 32 GB |
Latest FRDM Development Boards
Compact and scalable. Unlock the possibilities with the extensive ecosystem that come along the latest FRDM development boards.
FRDM i.MX 93 development board is a low-cost and compact development board featuring the i.MX93 applications processor.

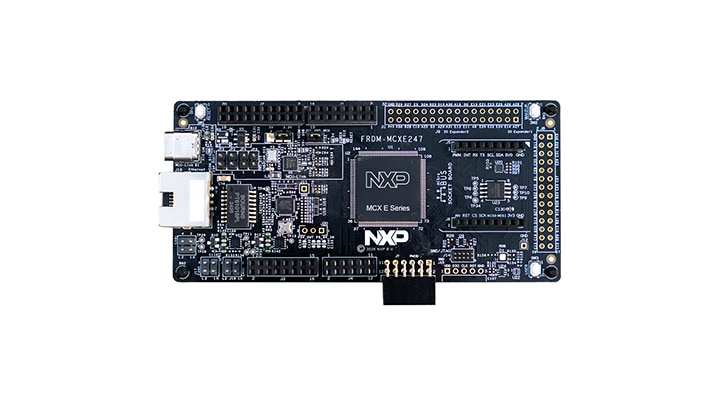

FRDM Development Board for rapid prototyping of MCX E245/246/247 MCUs.
The FRDM i.MX 91 development board is a low-cost and compact development board featuring the i.MX91 applications processor.
Design Resources
FAQs
What are NXP evaluation boards, including FRDM development boards, and how do they compare to other NXP evaluation kits?
NXP evaluation boards are hardware tools that enable developers to experiment with, test, and prototype applications using NXP’s microcontrollers, processors, or other semiconductor components. They offer convenient access to essential chip features such as I/O interfaces, communication options, and power controls, making it easier to assess system performance before building custom hardware. Among these, FRDM development boards are recognized for being cost-effective, compact, and scalable through add-on expansion boards, ideal for quick prototyping and educational use. Though they offer essential features for embedded development in combination with scalability options though expansion boards, they are more streamlined than other NXP Evaluation Kits (EVKs), which tend to be larger and more feature-rich to support advanced, in-depth evaluation.
What is an expansion board?
An expansion board is a hardware module that connects to a development board to extend its functionality. It enables the easy addition of components like sensors, displays, communication interfaces, or motor controllers. These boards accelerate the development of advanced prototypes and streamline the evaluation and creation of proof-of-concept designs.
Can I use Arduino shields with FRDM boards?
Yes, FRDM Development board implement industry-standard headers as Arduino, Pmod and mikroBUS to expand capabilities with add-on expansion boards. Before to use it, NXP recommend to verify documentation to ensure the versions are compatible.
What software and tools are supported by FRDM development boards?
NXP supports FRDM development boards with a comprehensive suite of SDKs, application code, and online tutorials. For board-specific tools and software compatibility, refer to the official Getting Started page. It provides step-by-step guidance, example projects, and details on supported development environments to help you set up your workflow efficiently.
