FRDM Development Board for MCX A175, A176, A185, A186, A255, A256, A265 and A266 MCUs

FRDM-MCXA266
Active

Click image to open expanded view

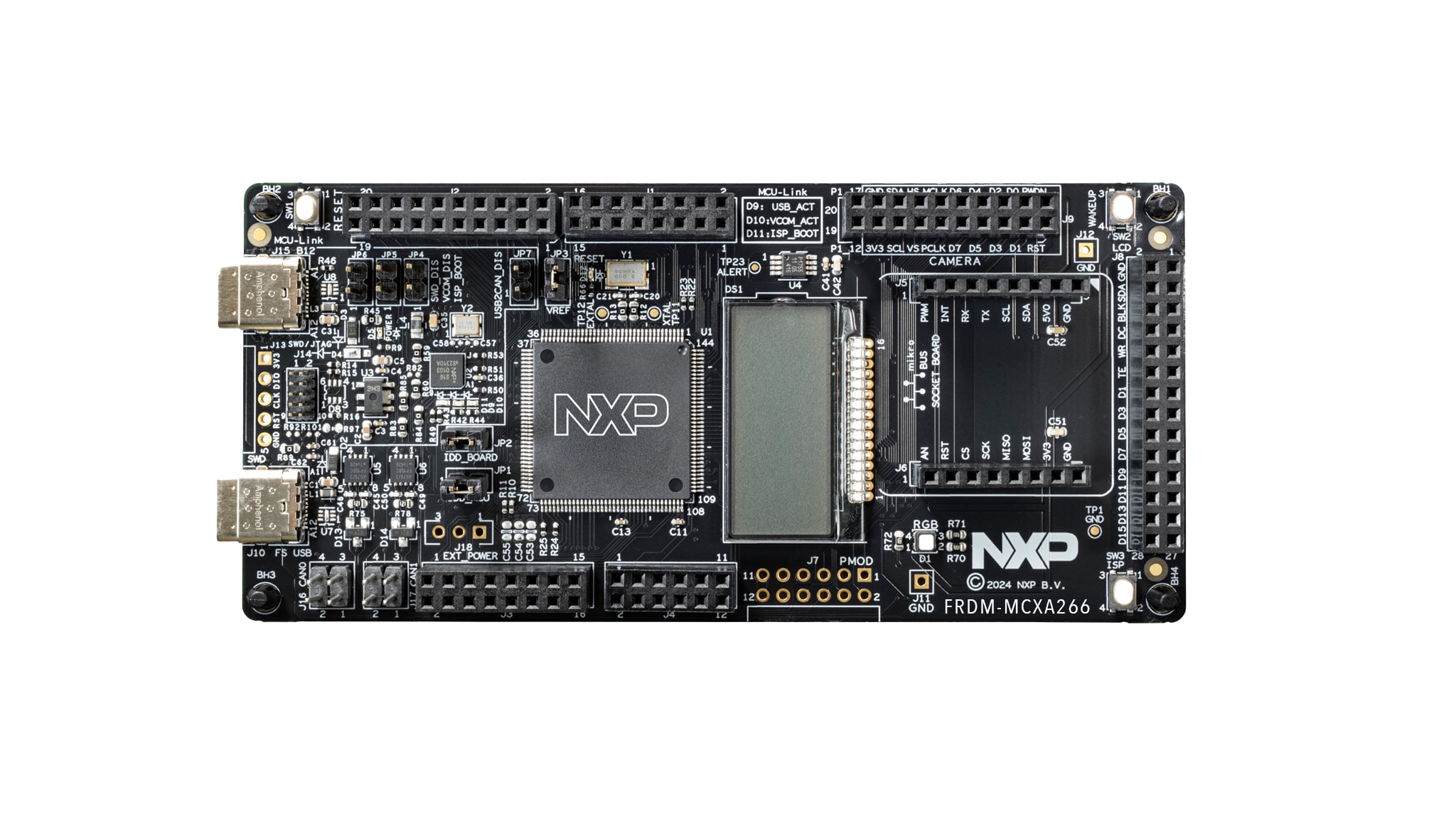

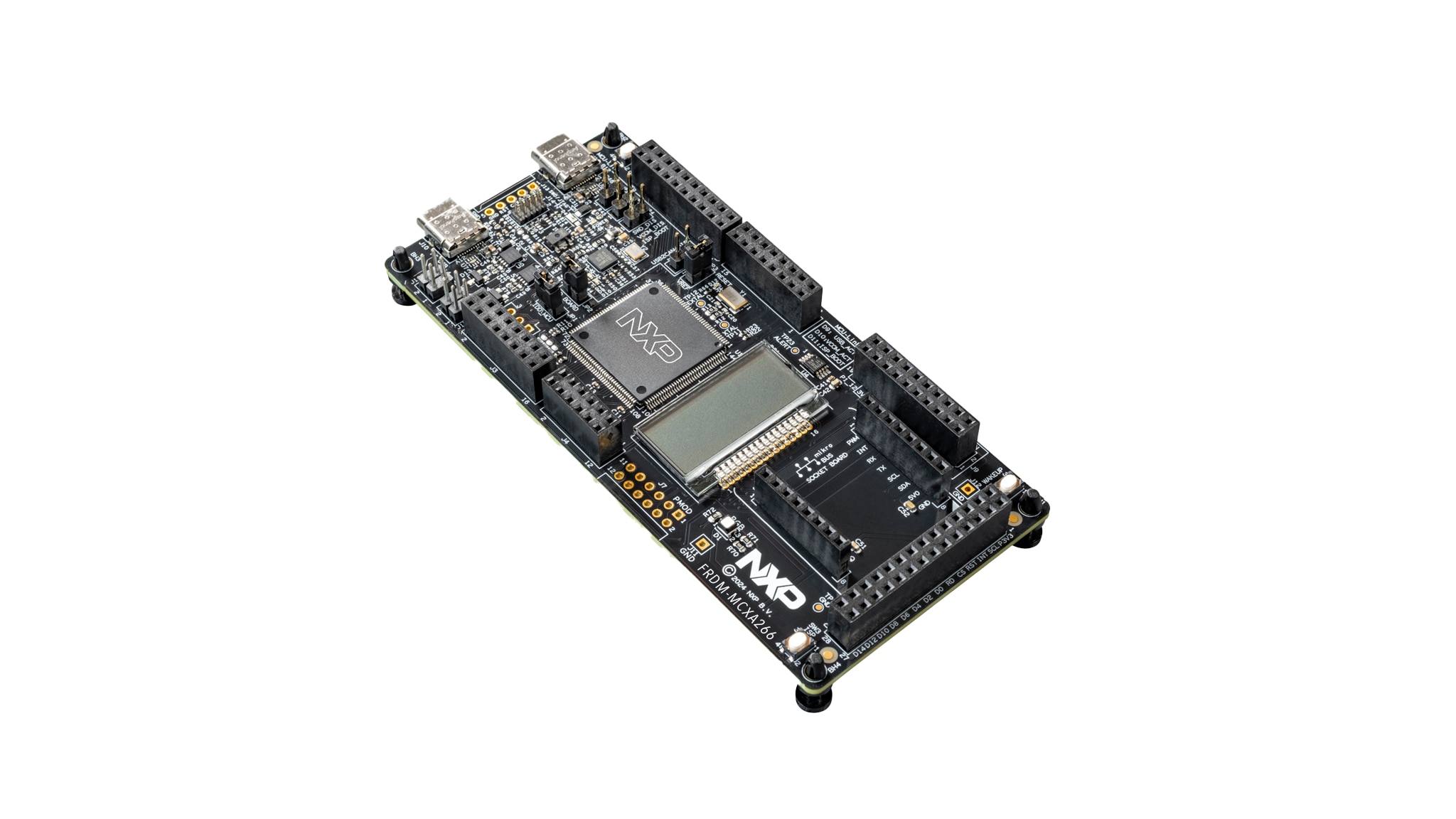

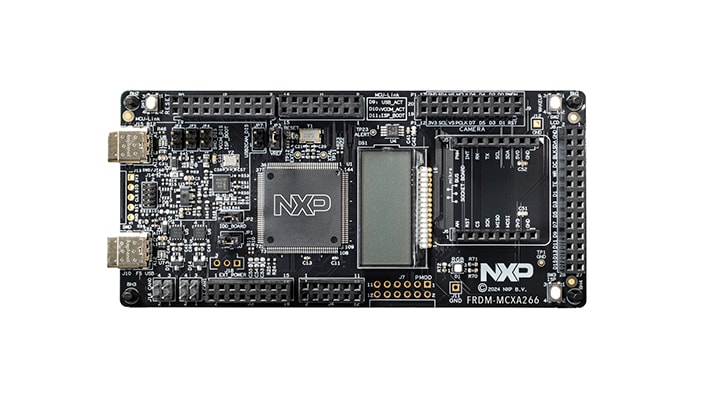

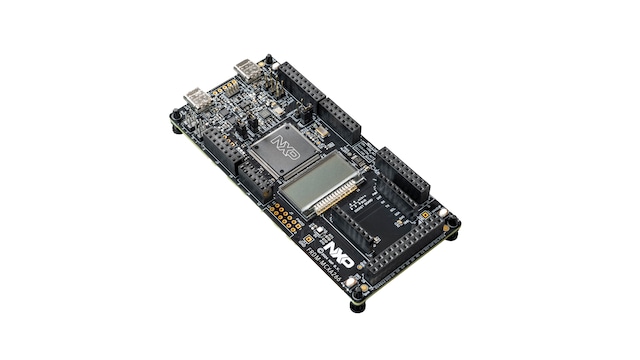

FRDM-MCXA266 is a compact and scalable development board for rapid prototyping for either the MCX A175, A176, A185, A186, A255, A256, A265 and A266 MCUs, ideal for industrial HMI, secure connected sensing, and USB-enabled control designs. It provides industry-standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, and an on-board MCU-Link debugger.

Designed to accelerate development of smart sensing, motor control, and industrial HMI applications, it includes FS USB Type-C device functionality, SLCD, CAN-FD, SmartDMA/camera and FlexIO/LCD expansion headers, and security-enabled MCU support to simplify evaluation, expansion, and application development.

Additional tools such as the Expansion Board Hub (EBH) for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-MCXA266

FRDM-MCXA266 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A17: MCX A17: Essential Arm® Cortex® M33 MCU with 180 MHz and Rich Serial Peripherals
  • MCX-A26: MCX A26: Arm® Cortex®-M33 Mainstream MCU with Rich Serial Peripherals
  • MCX-A25: MCX A25: Enhanced Mainstream Arm® Cortex® M33 MCU with 180 MHz for PC Accessories and Motor Control
  • MCX-A18: MCX A18: Essential Mainstream Arm® Cortex® M33 MCU with 240MHz and Motor Control Peripherals

Features

Microcontroller

  • MCX A266 Arm® Cortex®-M33 core up to 240 MHz
  • Up to 1 MB flash with up to 256 KB RAM with 8 KB ECC, support SmartDMA, Security, FlexIO, CAN-FD, LPUART, LPSPI, LPI²C, I3C and DMA

Connectivity

  • HS USB Type-C connectors (On-board MCU-Link debugger)
  • FS USB Type-C connectors (MCXA266 USB port)
  • CAN/I3C/SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
  • Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
  • Camera connector (SmartDMA)
  • LCD connector (FlexIO)

Debugger

  • On-board MCU-Link debugger with CMSIS-DAP
  • JTAG/SWD connector

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ *DNP
  • mikroBUS™
  • SmartDMA/Camera Header
  • FlexIO/LCD Header

User Interface

  • RGB user LED
  • Reset button
  • ISP button
  • Wake-up button
  • SLCD

Buy Options

FRDM-MCXA266-Image

Click to expand

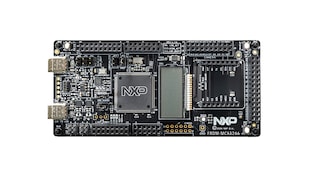

FRDM-MCXA266
Active

FRDM Development Board for MCX A175, A176, A185, A186, A255, A256, A265 and A266 MCUs.

    $30.00 USD
    Pending Stock
    ADD TO CART
