FRDM Development Board for MCX A345 and MCX A346 MCUs

FRDM-MCXA346
Active

Click image to open expanded view

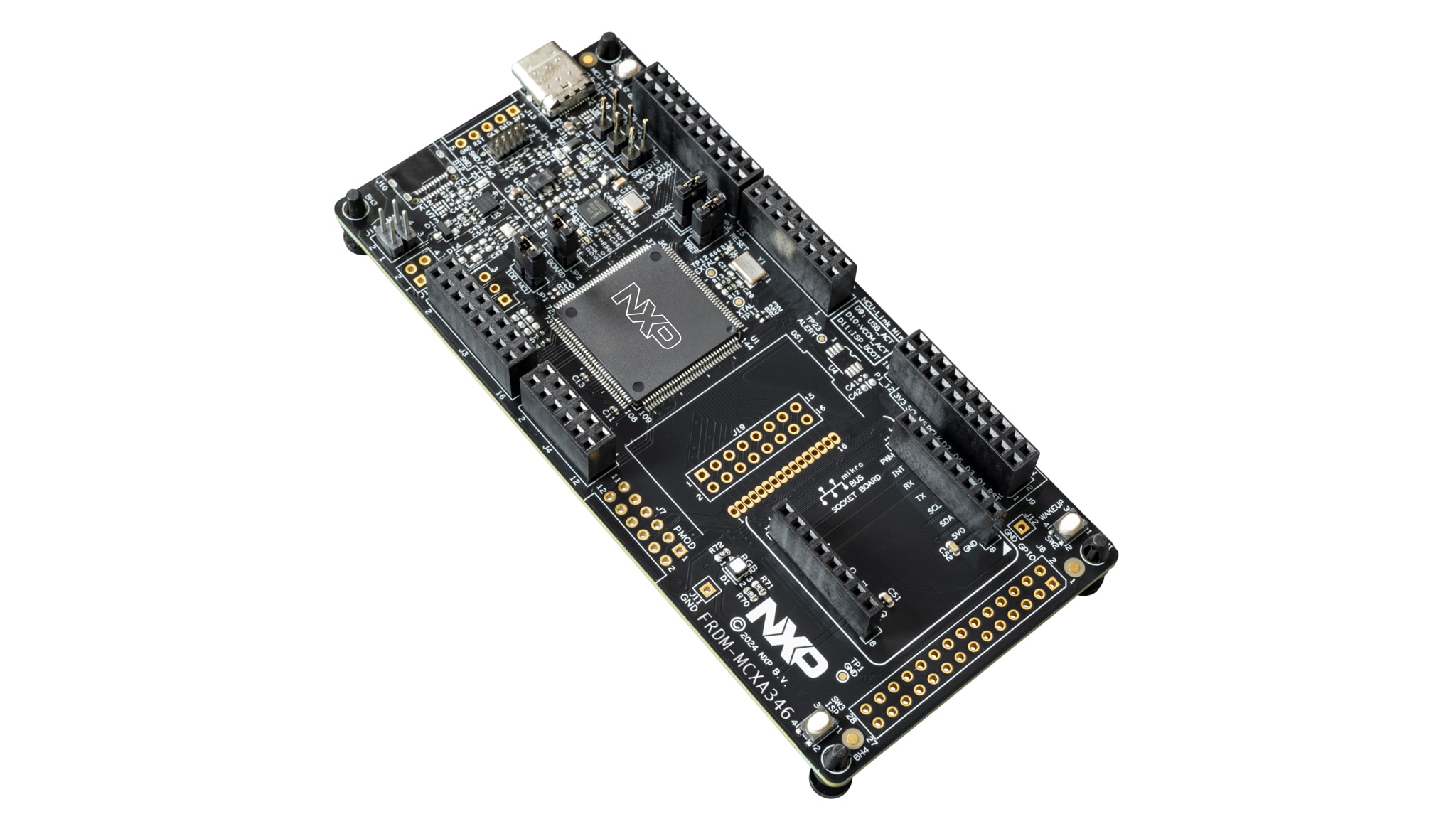

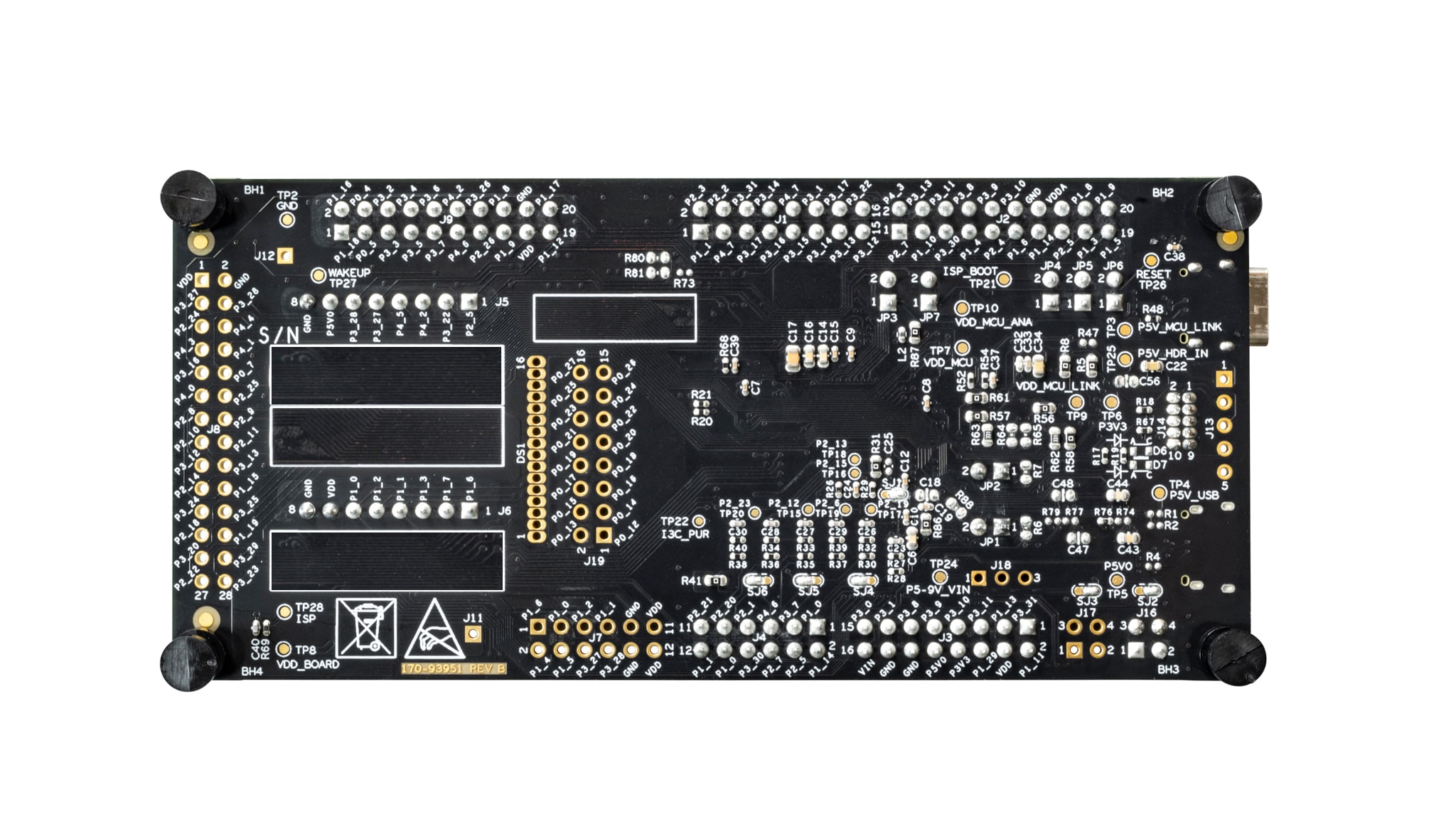

FRDM‑MCXA346 is a compact and scalable development board for rapid prototyping with MCX A345 and A346 MCUs, ideal for advanced motor control and high-performance real-time designs. It provides industry-standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, and an on-board MCU-Link debugger.

Designed to accelerate development of advanced motor control, motor drives, and real-time industrial control applications, it includes CAN-FD connectivity, a Mathematical Acceleration Unit (MAU) to improve performance in real-time motor control computations, SmartDMA support, a SmartDMA/camera header, and flexible GPIO expansion headers to simplify evaluation, expansion, and application development.

Additional tools such as the expansion board hub (EBH) for add-on boards and the application code hub (ACH) for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-MCXA346

FRDM-MCXA346 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A34: MCX A34: Mixed-Signal MCUs for Motor Control and High Performance Analog Peripherals

Features

Microcontroller

  • MCX A346 Arm® Cortex®-M33 core up to 180MHz
  • Up to 1 MB flash with up to 256 KB RAM with 8 KB error correction code (ECC), support multiply-accumulate unit (MAU) and Smart direct memory access (SmartDMA), Controller Area Network flexible data-rate (CAN-FD), low-power universal asynchronous receiver-transmitter (LPUART), low-power serial peripheral interface (LPSPI), low-power inter-integrated circuit (LPI2C), direct memory access (DMA) and low dropout regulator (LDO)

Connectivity

  • high-speed Universal Serial Bus (HS USB) Type-C connectors (onboard MCU-Link debugger)
  • controller area network (CAN)/improved inter-integrated circuit (I3C)/ serial peripheral interface (SPI)/inter-integrated circuit (I²C)/UART connector (Arduino, peripheral module (PMOD)/microcontroller bus (mikroBUS), do not populate (DNP))
  • Wi-Fi connector (Arduino, peripheral module (PMOD)/microcontroller bus (mikroBUS), do not populate (DNP))
  • Camera connector (SmartDMA)

Debugger

  • Onboard MCU-Link debugger with Cortex Microcontroller Software Interface Standard – debug access port (CMSIS-DAP)
  • Joint Test Action Group/serial wire debug (JTAG/SWD)/SWD connector

Expansion Options

  • Arduino® header
  • FRDM header
  • Pmod™ *DNP
  • mikroBUS™
  • SmartDMA/camera header
  • general-purpose input/output 1 (GPIO1) header
  • general-purpose input/output 2 (GPIO2) header

User Interface

  • RGB user LED
  • Reset button
  • in-system programming (ISP) button
  • Wake-up button
