Name: FRDM Development Board for MCX N23x MCUs
Price: 20.00 USD
Availability: BackOrder

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click image to open expanded view

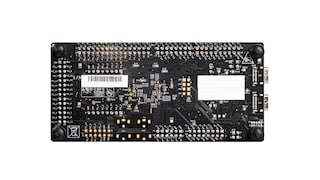

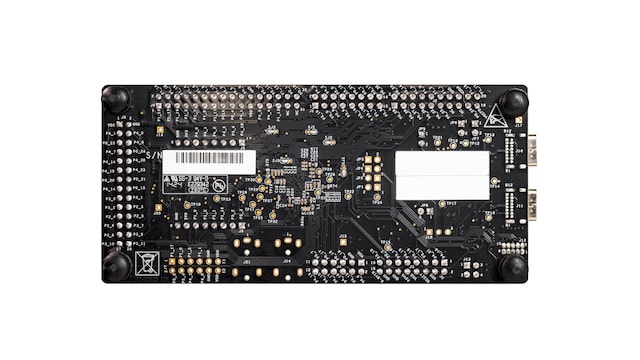

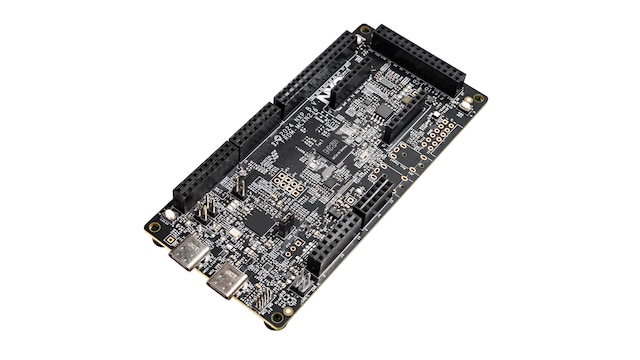

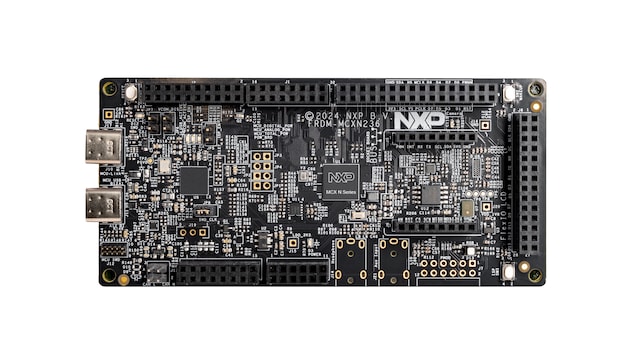

FRDM-MCXN236 is a compact and scalable development board for rapid prototyping of MCX N23x MCU. It offers industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an onboard MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Design Files

Software

Product Details

Block Diagram

FRDM Development Board for MCX N23x MCUs

Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX N Series Microcontrollers

MCX-N23X: MCX N23x Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security

Features

Microcontroller

MCXN236 Arm® Cortex®-M33 core @150MHz
Up to 1MB dual-bank flash with optional full ECC RAM
Accelerators:

SmartDMA

Memory Expansion

QSPI flash W25Q64 (64 Mbit)

Connectivity

HS USB-Type C connector
SPI/I2C/UART connector (mikroBUS, Pmod™ *DNP)
WIFI connector (mikroBUS, Pmod™ *DNP)
TJA1057 CAN FD transceiver
Audio Auxiliary line input *DNP
Headphone output jack *DNP

Debug

Onboard MCU-Link debugger with CMSIS-DAP
JTAG/SWD connector

Sensor

FXLS8974CFR3 3-axis Accelerometer
Visible light sensor
Digital microphone SPK0641HT4H-1

Expansion Options

Arduino® Header
FRDM Header
FlexIO/LCD Header
SmartDMA/Camera Header
Pmod™ *DNP
mikroBUS™

User Interface

RGB user LED, Reset, ISP, wake-up buttons

Open-source Software Examples

Power Your Design with Application Code Hub

Leverage ready-to-use demo code on GitHub for faster development.

Start building now with ACH

Hardware

Evaluation Board

3-Phase PMSM Motor Control FRDM Expansion Board

FRDM Expansion board for Low-Voltage, 3-Phase Permanent Magnet Motor Control.

FRDM-MC-LVPMSM

Evaluation Board

3.5” TFT LCD Module

The LCD-PAR-S035 is a 3.5” 480x320 IPS TFT LCD module with wide viewing angle and 5-point capacitive touch functionality.

LCD-PAR-S035

Buy Options

Click to expand

FRDM-MCXN236
Active

FRDM Development Board for MCX N23x MCUs.

Kit Contains

FRDM-MCXN236
Quick Start Guide
USB Cable Type-C

$20.00 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

4 documents

Compact List

FRDM-MCXN236 Development Board Quick Start Guide[MCXN236QSG]

PDFApr 16, 2024Rev 1

Design without Bounds[FRDMECOPPR]

PDFFeb 27, 2026Rev 2.0

Getting Started with FRDM-MCXN236[GS-FRDM-MCXN236]

HTMLApr 30, 2024

FRDM-MCXN236 Board User Manual[UM12041]

HTML | PDFNov 13, 2025Rev 4.0

Design Resources

Related Hardware

Quick reference to our board types.

1-5 of 9 hardware offerings

Evaluation and Development Boards
FRDM Development Board for MCX A343 and MCX A344 MCUs
Active

FRDM-MCXA344Similar
Evaluation and Development Boards
Evaluation Kit for MCX N54x MCUs
Active

MCX-N5XX-EVKSimilar
Evaluation and Development Boards
3.5” 480x320 IPS TFT LCD Module
Active
Expansion Board

LCD-PAR-S035Similar
Evaluation and Development Boards
FRDM Development Board for MCX A345 and MCX A346 MCUs
Active

FRDM-MCXA346Similar
Evaluation and Development Boards
FRDM Development Board for MCX N94/N54 MCUs
Active

FRDM-MCXN947Similar
Evaluation and Development Boards
NXP® FRDM Development Platform for Low-Voltage, 3-Phase PMSM Motor Control
Active
Expansion Board

FRDM-MC-LVPMSMSimilar
Evaluation and Development Boards
FRDM Development Board for MCX A144/5/6 A154/5/6 MCUs
Active

FRDM-MCXA156Similar
Evaluation and Development Boards
Evaluation Kit for MCX N94x MCUs
Active

MCX-N9XX-EVKSimilar
Evaluation and Development Boards
FRDM Development Board for MCX A355, A356, A365 and A366 MCUs
Active

FRDM-MCXA366Similar

Show All

Design Files

Quick reference to our design files types.

2 design files

Printed Circuit Boards and Schematics
FRDM-MCXN236 Schematics

PDFRev CApr 26, 2024 12:52:003.35 MBSPF-90828

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Design Files - miscellaneous
FRDM-MCXN236 Design Files

ZIPRev CApr 26, 2024 12:56:0020.43 MBFRDM-MCXN236-DESIGN-FILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Software

Quick reference to our software types.

1-5 of 13 software files

HMI Design Software

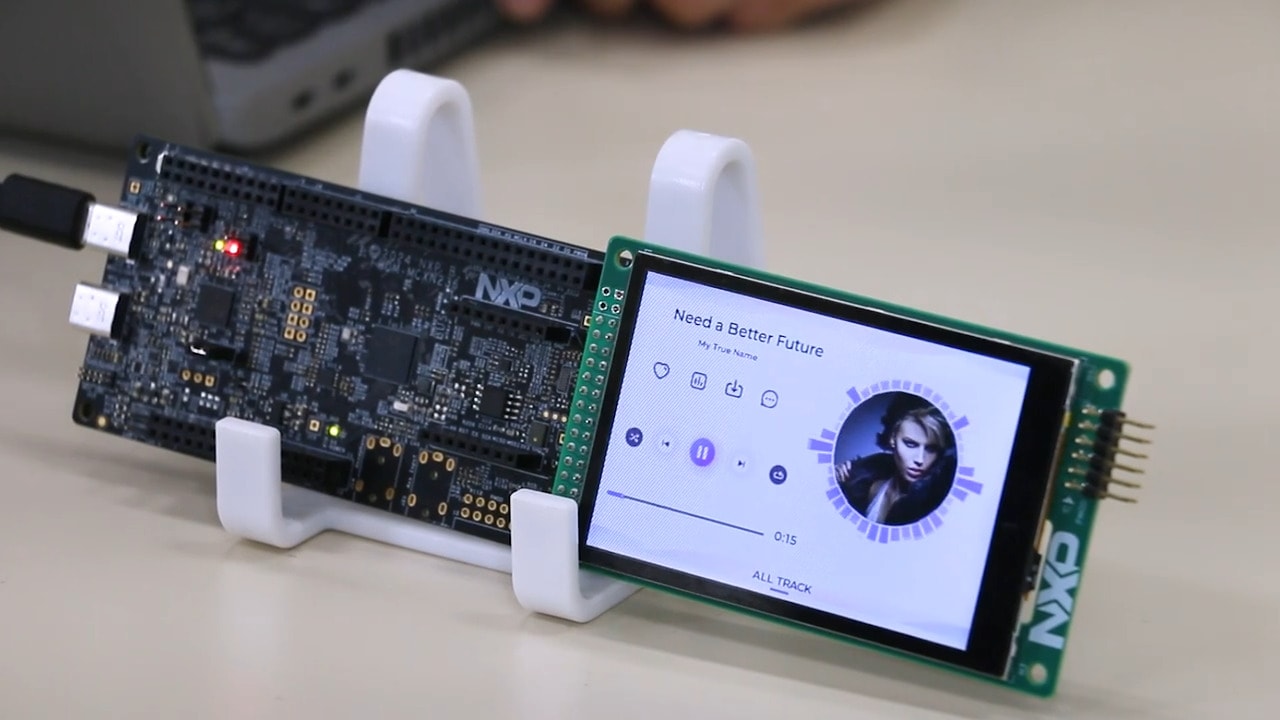

GUI Guider
