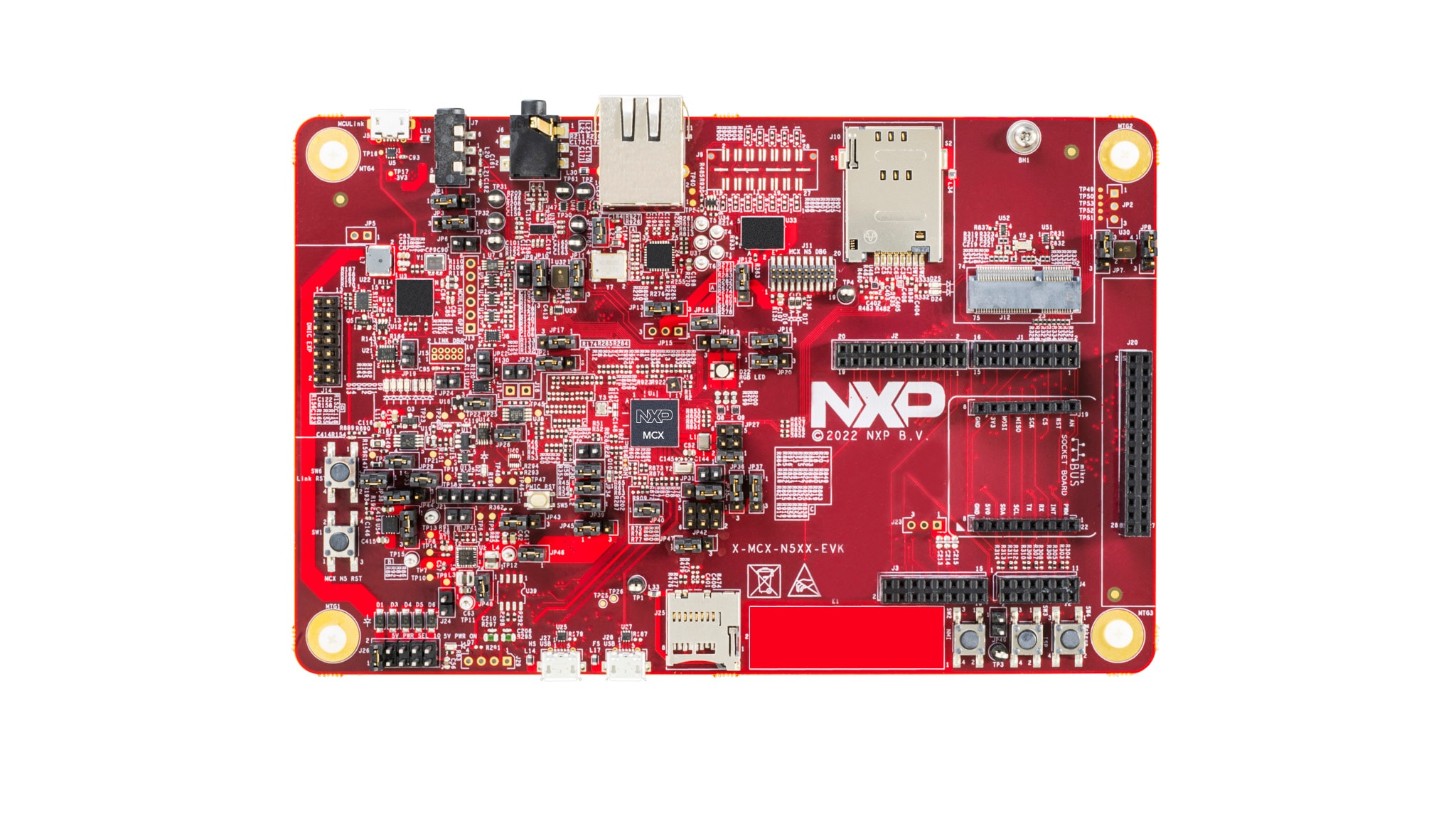

MCX-N5XX-EVK is a full featured evaluation kit for prototyping of MCX N54 MCUs. They offer industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces and an on-board MCU-Link debugger with power measurement capability. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Design Files

Software

Product Details

Block Diagram

MCX-N5XX-EVK Block Diagram

Get diagram PDF

Supported Devices

Power Management

5 V Solutions

PCA9420-PCA9421: PMIC for Low Power Applications

Sensors

Accelerometers

FXLS8964AF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital Accelerometer

I3C/I²C Digital Temp. Sensors

P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Processors and Microcontrollers

MCX N Series Microcontrollers

MCX-N94X-N54X: MCX N94x/54x Highly Integrated Multicore MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security

Features

Microcontroller

MCX-N547 Dual Arm^® Cortex^®-M33 cores @150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flash
Accelerators: Neural Processing Unit, PowerQuad, Smart DMA, etc.

Memory Expansion

Micro SD card socket
QSPI flash W25Q64 (64 Mbit)
Support pSRAM, OctalFlash, HyperRAM

Connectivity

Ethernet Phy and connector
HS USB Micro B connectors
SPI/I2C/UART connector (PMOD/mikroBUS, DNP)
WIFI connector (PMOD/mikroBUS, DNP)
FS USB Micro B connector
M.2 Connector
EMVSIM connector
Audio Auxiliary line input
Headphone output jack

Debug

On-board MCU-Link debugger with Energy Monitor circuit
JTAG/SWD connector

Sensor

P3T1755 I3C/I2C Temp Sensor, FXLS8964 3-axis accelerometer, Visible light sensor

Expansion Options

Arduino^® Header (with FRDM expansion rows)
FlexIO/LCD Header
Tamper pin header
mikroBUS^™
External DMIC header

User Interface

RGB user LED, plus Reset, ISP, Wakeup buttons, Touch Slider

Hardware

Evaluation Board

3-Phase PMSM Motor Control FRDM Expansion Board

FRDM Expansion board for Low-Voltage, 3-Phase Permanent Magnet Motor Control.

FRDM-MC-LVPMSM

Evaluation Board

3-axis IoT accelerometer FRDM Expansion Board

FRDM Expansion board for FXLS8974CF 3-Axis IoT Accelerometer .

FRDM-XXXX-A8974

Evaluation Board

3.5” TFT LCD Module

The LCD-PAR-S035 is a 3.5” 480x320 IPS TFT LCD module with wide viewing angle and 5-point capacitive touch functionality.

LCD-PAR-S035

Buy Options

Click to expand

MCX-N5XX-EVK
Active
Full Evaluation Kit for N54 MCUs.

$148.40 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 5
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
