Freedom Development Platform for Kinetis® K82, K81, and K80 MCUs

FRDM-K82F Preproduction

Roll over image to zoom in

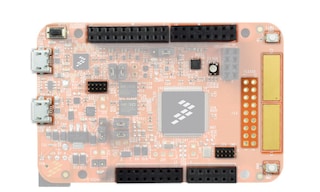

The NXP Freedom K82F is a low-cost development platform for Kinetis K82, K81, and K80 MCUs.

  • Form-factor compatible with the Arduino® Rev3 pin layout
  • Peripherals enable rapid prototyping, including a six-axis digital accelerometer and magnetometer to create full eCompass capabilities, a tri-colored LED and two user push-buttons for direct interaction, 2x32Mb QuadSPI external flash, FlexIO camera header, touchpads and headers for use with Bluetooth® and 2.4 GHz radio add-on modules
  • OpenSDAv2.1, the NXP open source hardware embedded serial and debug adapter running an open source bootloader, offers options for serial communication, flash programming, and run-control debugging
  • The FRDM-K22F is enabled by the Arm® Mbed™ OS platform and supported by Zephyr™ OS, for developing the Internet of Things with a free, open-source operating system

Supported Devices

Processors and Microcontrollers

K8x Secure

  • K80_150: Kinetis® K80-150 MHz Advanced Security and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
  • K81_150: Kinetis K81-150 MHz HW Cryptographic Co-Processor, Anti-Tamper and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
  • K82_150: Kinetis® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • Kinetis MK82FN256VLL15 MCU
    • Arm® Cortex®-M4
    • 150 MHz
    • 256 kB SRAM
    • USB
    • Advanced security
  • Kinetis K20DX128VFM5 MCU-based OpenSDA circuit

Power Management

  • Dual independent voltage domains: VDD and VDDIO_E
  • Flexible power supply option OpenSDAv2.1 USB, Kinetis K82 USB, and external source

Connectivity

  • USB support onboard with micro USB cable
  • Easy access to MCU input/output through Arduino® Rev3 compatible I/O connectors

Memory

  • Two 32 Mbit (4 MB) dual onboard QuadSPI memory @ 1.8 V

Display / Camera Connectors

  • FlexIO header compatible with OV7670 camera

Sensors

  • FFXOS8700CQ accelerometer and magnetometer

Debug

    Programmable OpenSDAv2 debug circuit supporting the CMSIS-DAP interface software that provides:

  • Mass storage device (MSD) flash programming interface
  • CMSIS-DAP debug interface over adriver-less USB HID connection providing run-control debugging and compatibility with IDE tools
  • Virtual serial port interface
  • Open source CMSIS-DAP software project

User Components

  • Three user-controlled status LEDs
  • Two mechanical push buttons for user input, and one for reset

Buy Options

FRDM-K82F-Image

Click to expand

  • FRDM-K82F

  • Freedom Development Board for Kinetis K80, K81 and K82 MCUs.

    • Arduino®
    • FRDM-K82F hardware
      • Arduino®
    • Quick Reference Card
      • Arduino®
    • USB A to Micro B cable
      • Arduino®
  • $87.94 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
