KITFS5600SKTEVM FS56 Socketed Board

Roll over image to zoom in

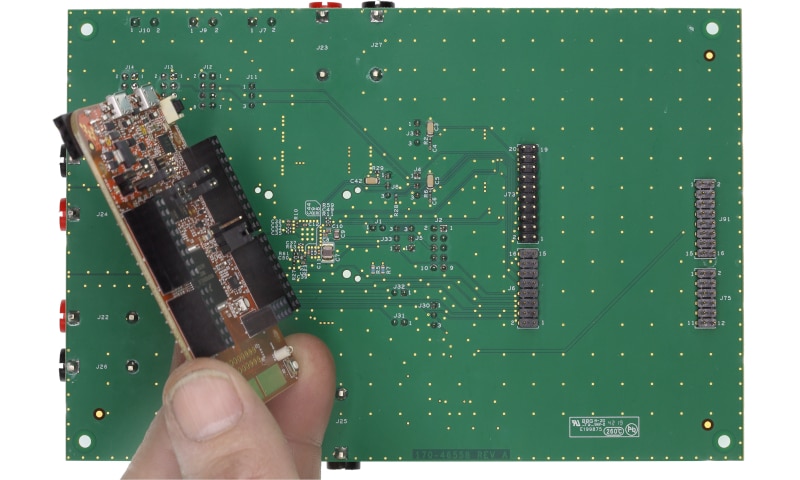

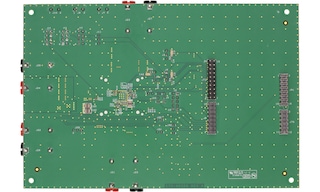

The KITFS5600SKTEVM is a socketed evaluation board featuring the FS56 dual DC-DC converter. The kit integrates all hardware needed to OTP program the FS56.

It integrates a communication bridge based on the FRDM-K82F FRDM board to interface with the FS56 GUI software interface and fully configure and control the FS56.

Design Files

Software

Product Details

Supported Devices

Power Management

12 V, 24 V, and 48 V SBC Solutions

FS5600: Automotive Dual Buck Regulator and Controller with Voltage Monitors and Watchdog Timer

Features

General

Dual-Output
OTP Programmable
Fit to ASIL B Safety Level

Buy Options

Click to expand

Kit Contains

FS56 Socketed Evaluation Board

Assembled and tested evaluation board in an anti-static bag

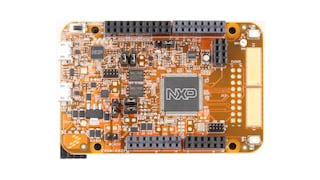

FRDM-K82F FRDM Development Platform
USB Cable
Quick Start Guide

$488.75 USD

In Stock :20

Normally ships 1-2 business days

ADD TO CART
