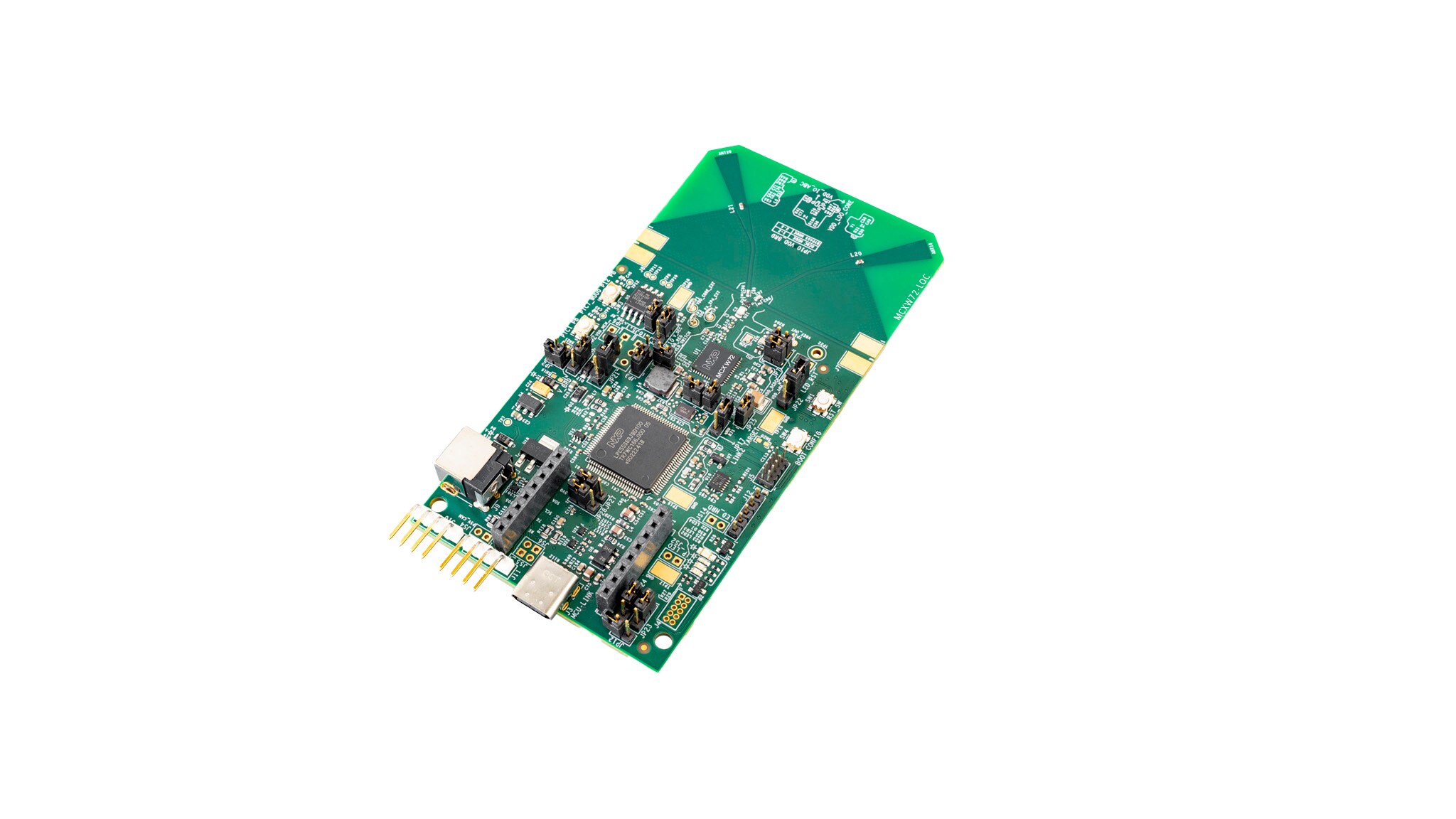

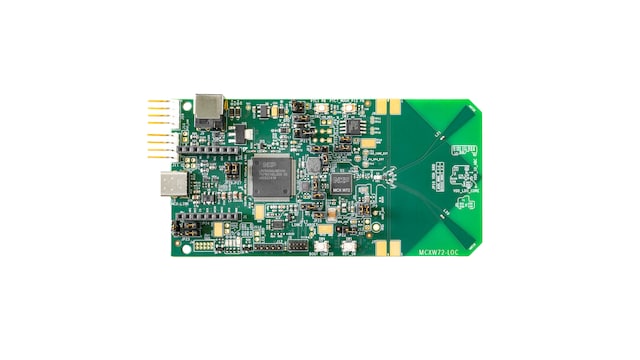

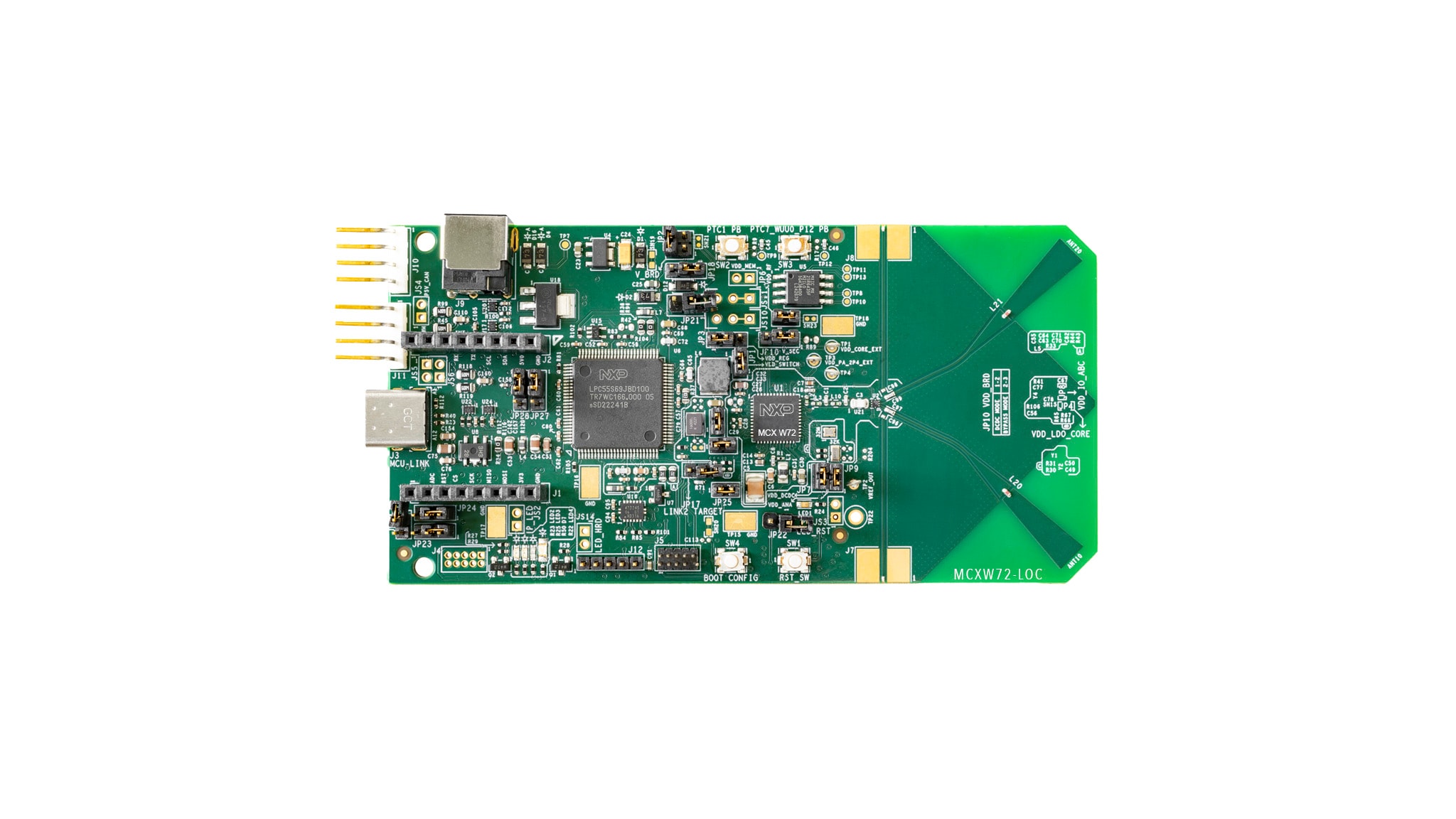

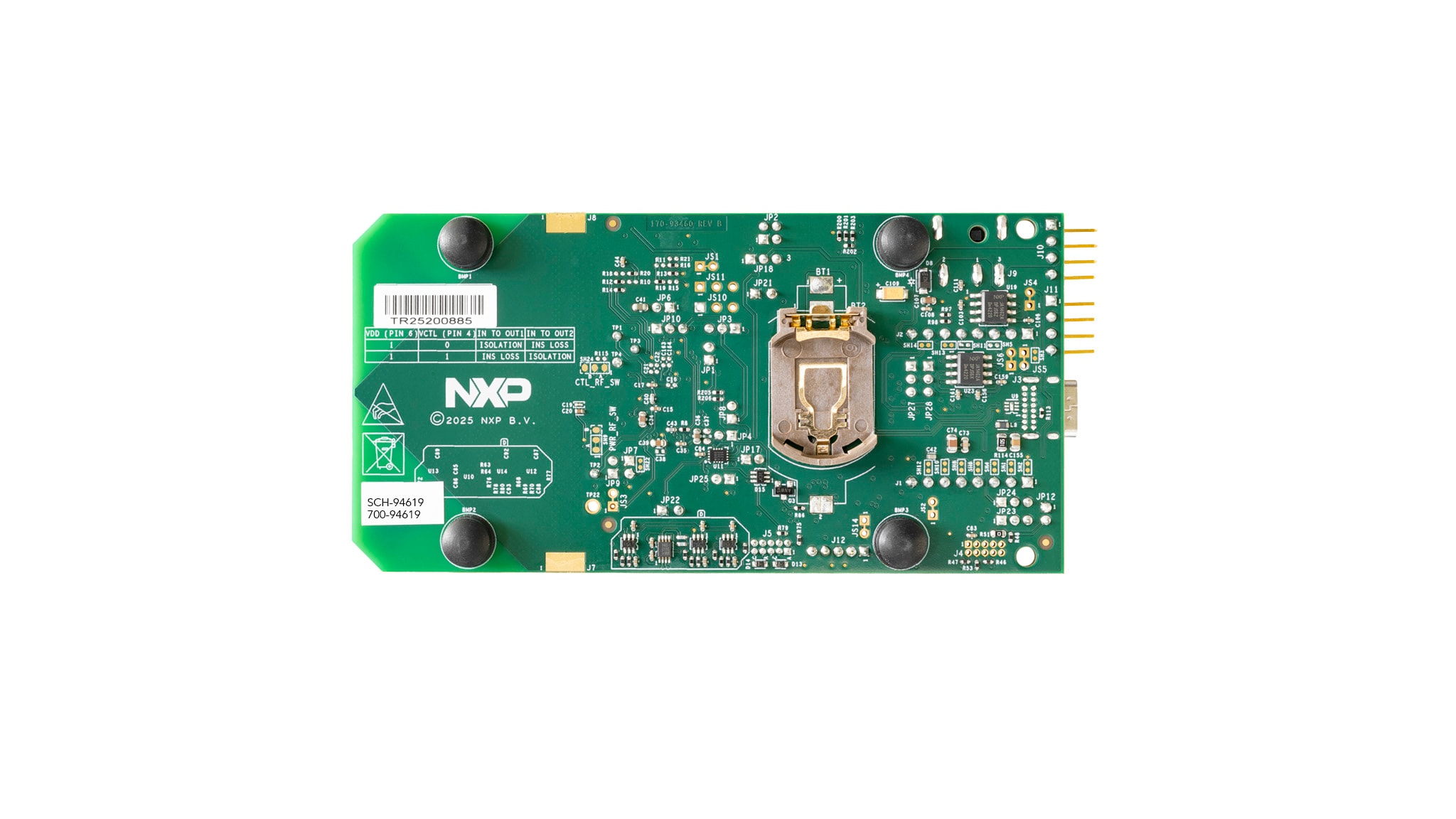

Localization Board for MCX W72 Bluetooth Channel Sounding MCU

MCXW72-LOC new

Roll over image to zoom in

The Localization Board with MCX W72 is an evaluation kit for demonstrating Bluetooth® Channel Sounding for IoT applications. This board consists of two chip antennas and an RF switch supporting antenna diversity, an integrated programmer/debugger and a mikroBUS™ header to easily add expansion boards. It provides the most suitable development and evaluation platform for the Bluetooth LE Channel Sounding feature, as it supports Antenna Switching by default.

This Localization Board is based on the MCX W72 IoT multiprotocol MCU, and is ready for production channel sounding designs. The MCX W72 MCU is qualified against the Bluetooth Core 6.0 specification.

Block Diagram

MCX W72 Localization Board

MCXW72-LOC Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX W Series Microcontrollers

  • MCX-W72: MCX W72 Secure and Ultra-Low-Power MCUs for Bluetooth LE, Channel Sounding, Matter, Thread, Zigbee

Features

Processor

  • MCXW72-LOC evaluation board includes MCX W72 consisting of a 96 MHz Arm Cortex-M33 CPU
  • Radio controller based on Arm Cortex-M33 called Narrow Band Unit (NBU)
  • Radio transceiver operates in the 2.4 GHz frequency band
  • Supporting GFSK modulations for Bluetooth Low Energy (LE) 6.0
  • Bluetooth LE controller stack
  • Transceiver

Connectivity

  • CAN connectivity support
  • LIN connectivity support
  • Arduino shield socket
  • mikroBUS socket

Debug

  • JTAG with SWD

Power Management

  • Supports all DC-DC configurations

Wireless

  • 2.4 GHz Antenna SMT 5.0 X 2.0 X 1.1 (2450AT42A100)

Buy Options

MCXW72-LOC-Image

Click to expand

MCXW72-LOC
Active

Localization Board for MCX W72 Bluetooth Channel Sounding MCU.

    $150.00 USD
    In Stock :10

    Normally ships 1-2 business days
